Rear ANC/Active Sound Control Microphone Connector End View
Rear ANC/Active Sound Control Microphone Connector End View

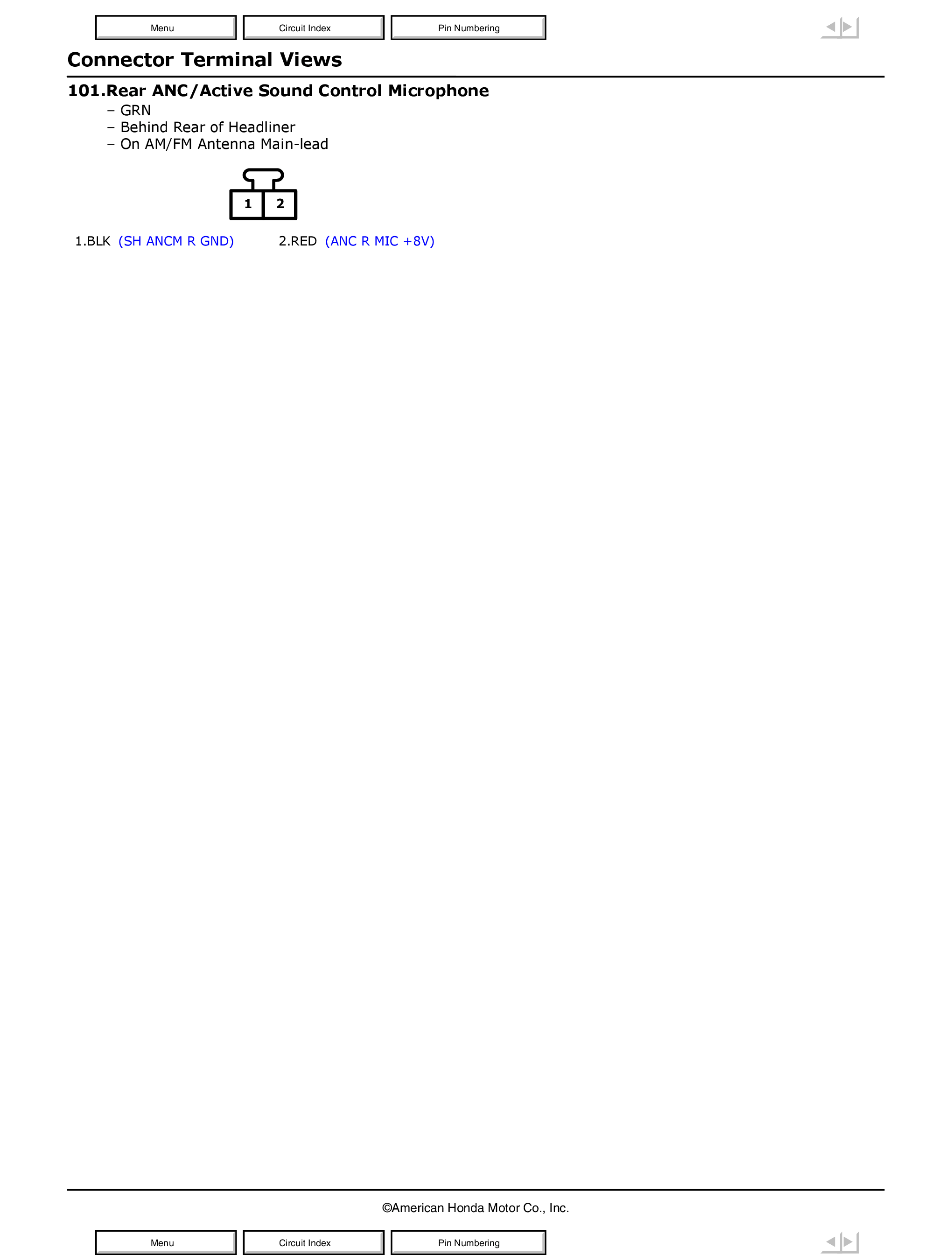

Fig 1: Rear ANC/Active Sound Control Microphone Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

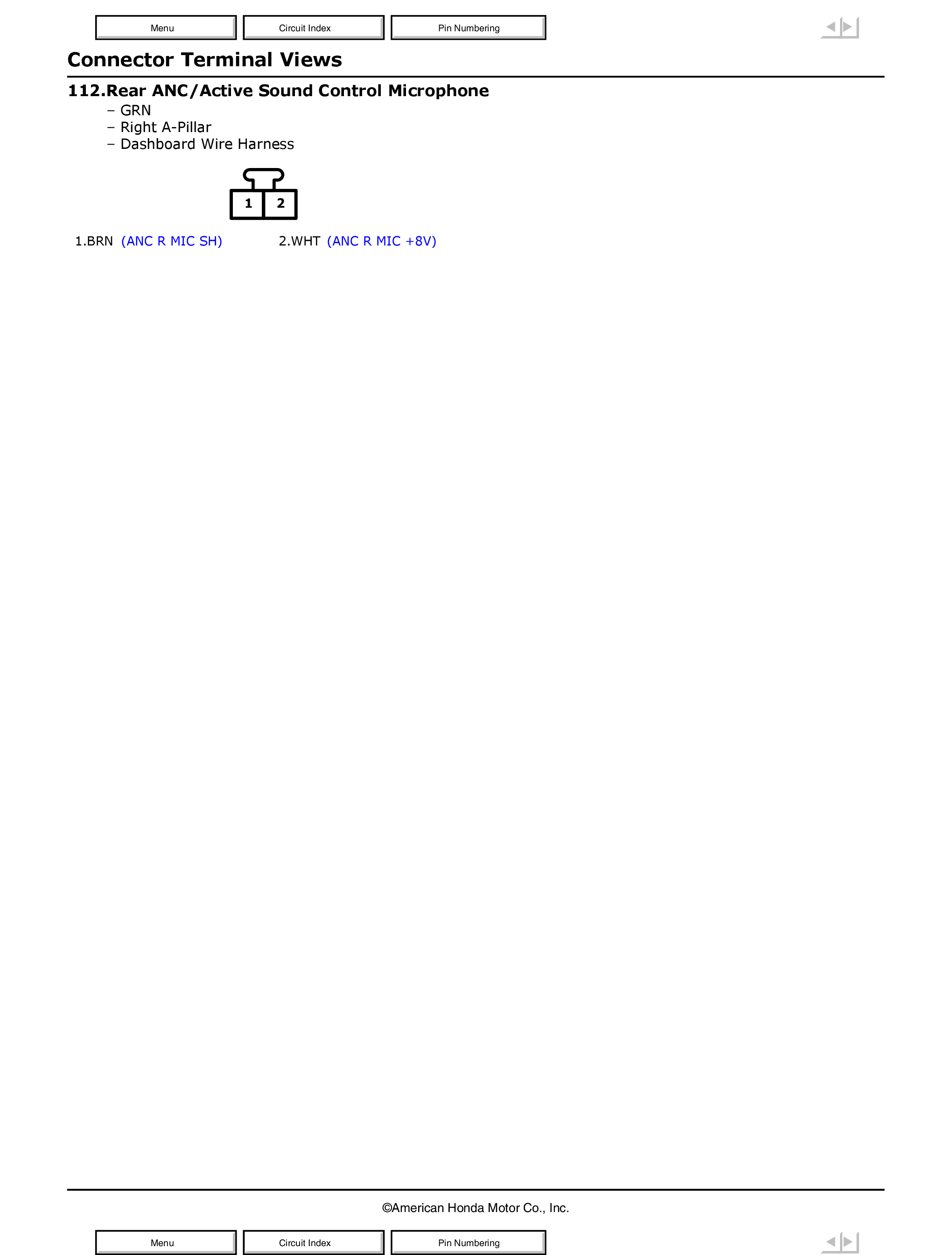

Fig 1: Rear ANC/Active Sound Control Microphone Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
