Engine Mount Control System
›
Circuit Diagram
›
With Keyless Access System
With Keyless Access System

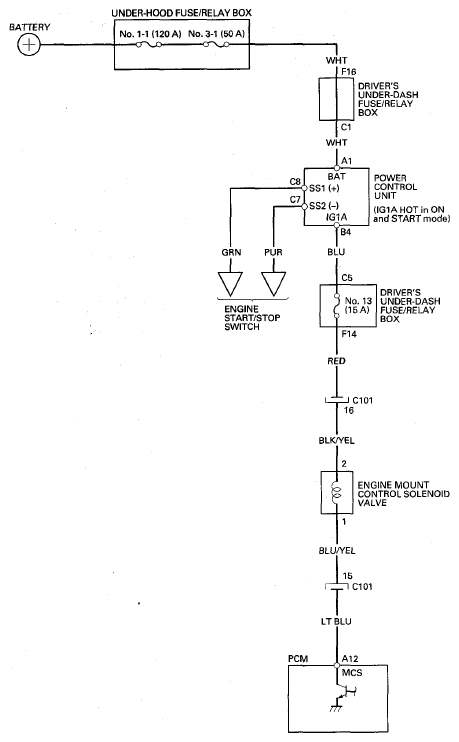

Fig 1: Engine Mount Control System Circuit Diagram - With Keyless Access System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
