CKP Pulse Plate Replacement

Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL ).
Remove the CKP pulse plate (A) from the crankshaft.
NOTE: Be careful not to damage the journals and the CKP pulse plate.

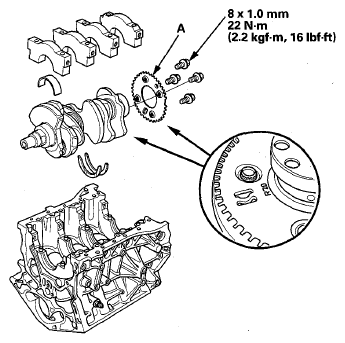

Fig 1: Crankshaft Position Pulse Plate And Mountings Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the CKP pulse plate in the reverse order of removal.

NOTE: When installing the crankshaft, refer to the crankshaft and piston installation procedure (see CRANKSHAFT AND PISTON INSTALLATION ).
