Immobilizer-Keyless Control Unit Replacement

NOTE:

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.
Requires PCM code and all of the client's keys.

Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
Disconnect the 7P connector (A) from the immobilizer-keyless control unit (B).

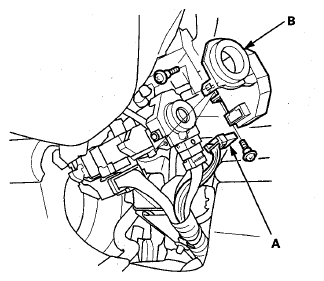

Fig 1: Identifying Immobilizer-Keyless Control Unit And 7P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and the immobilizer-keyless control unit.
Install the immobilizer-keyless control unit in the reverse order of removal.
After replacement, register the immobilizer-keyless control unit (see IMMOBILIZER KEY REGISTRATION ), and make sure the immobilizer system works properly.
