Relay And Control Unit Locations: Dashboard

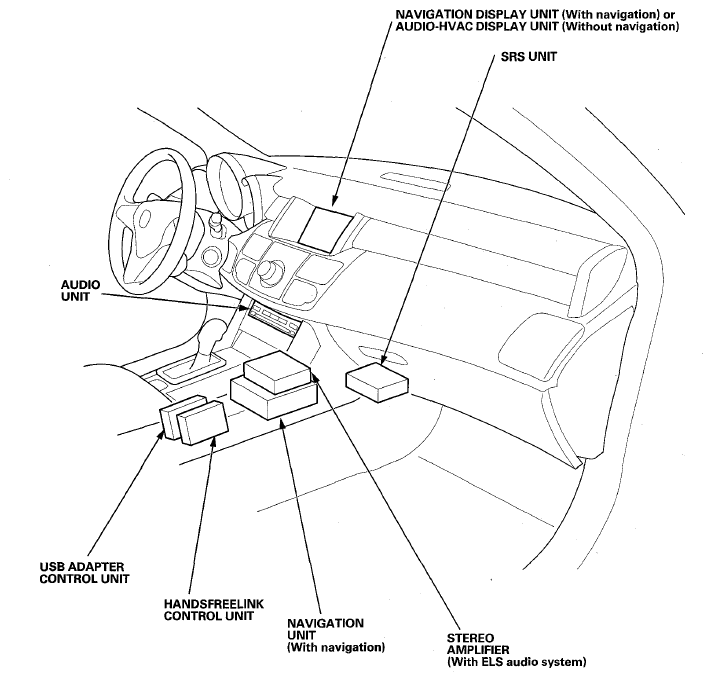

Fig 1: Relay And Control Unit Locations Of Dashboard (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

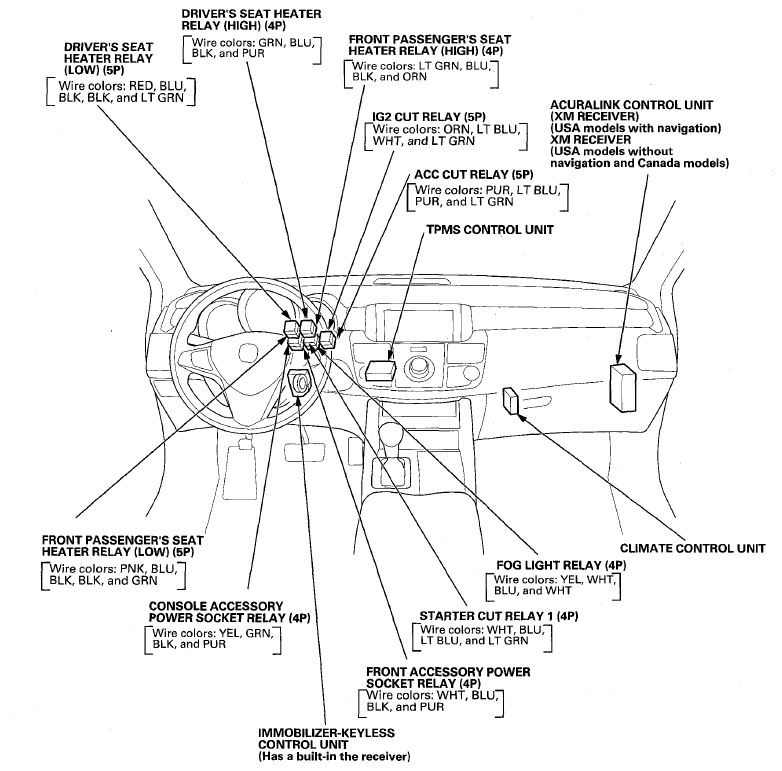

Fig 2: Relay And Control Unit Locations Of Dashboard (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

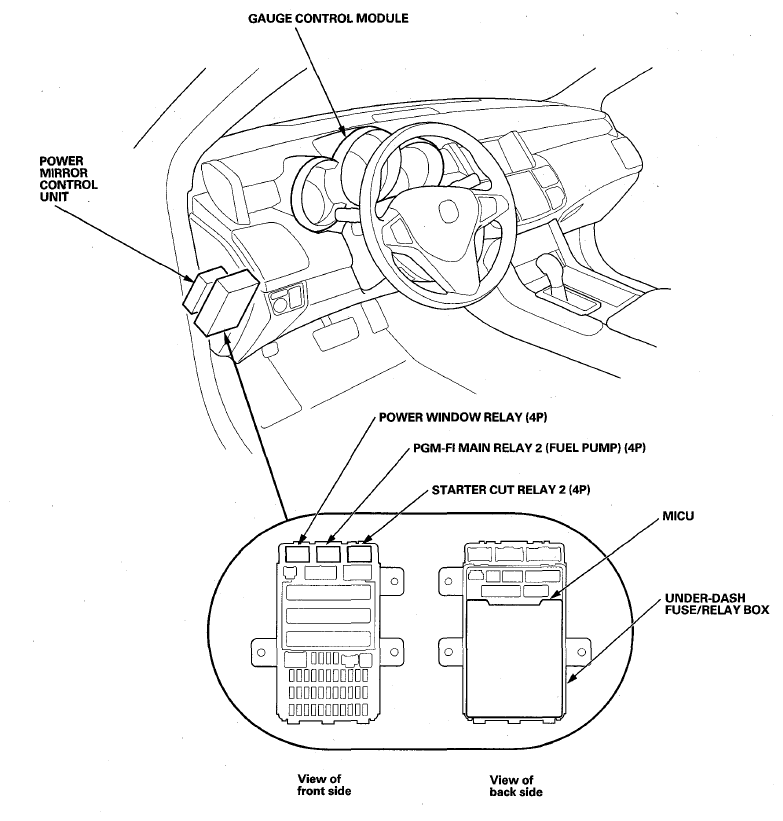

Fig 3: Relay And Control Unit Locations Of Dashboard (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
