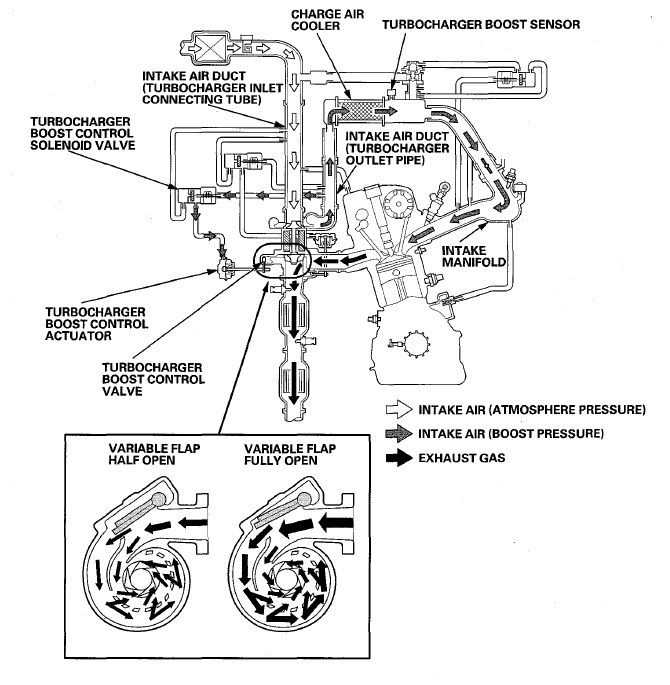

Condition B (minimum duty)
Under a medium or high load conditions (with large amount of exhaust gas), the PCM turns off (minimum duty) the turbocharger boost control solenoid valve and opens the passage between the intake air duct (turbocharger outlet pipe) and the turbocharger boost control actuator and closes the passage between the intake air duct (turbocharger inlet connecting tube) and the turbocharger boost control actuator. The boost pressure from intake air duct (turbocharger outlet pipe) pushes the turbocharger boost control actuator which opens the variable flap. With the variable flap opened, the exhaust gas flows through both the inner and the outer scroll for efficient turbo operation at medium and high engine speed.
