Turbocharger Bypass Control Solenoid Valve Replacement

  1. Remove the charge air cooler cover (see step 1 under CHARGE AIR COOLER REMOVAL AND INSTALLATION ).
  2. Disconnect the hoses (A).

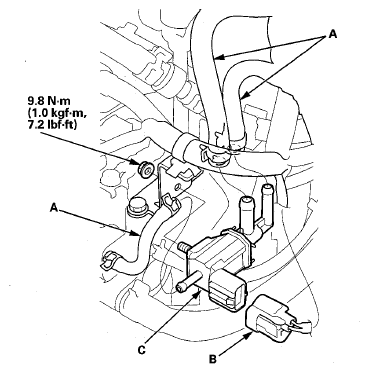

    Fig 1: Hoses, Turbocharger Bypass Control Solenoid Valve And Connector With Torque Specifications
    G08059755Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the turbocharger bypass control solenoid valve connector (B).
  4. Remove the turbocharger bypass control solenoid valve (C).
  5. Install the parts in the reverse order of removal.
