TPMS Control Unit Replacement

NOTE: Make sure the TPMS control unit mounting bracket is not bent or twisted as this may affect its communication with the initiators and the tire pressure sensors.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the driver's dashboard undercover (see CENTER PANEL REMOVAL/INSTALLATION ).
  3. Disconnect the TPMS control unit 20P connector (A).
    NOTE: The TPMS control unit is located under the steering column.

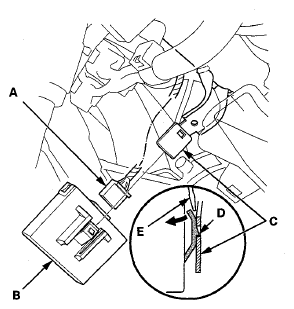

    Fig 1: Identifying TPMS Control Unit, 20P Connector And Bracket
    G08060364Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the TPMS control unit (B) from the bracket (C).
    NOTE: While separating the TPMS control unit from the bracket, release the hook (D) on the TPMS control unit using a flat-tipped screwdriver (E), and push up to release it from the bracket.
  5. Install the TPMS control unit in the reverse order of removal.
    NOTE: Make sure the TPMS control unit is properly installed. You will hear a click when the TPMS control unit is securely mounted on the bracket.
  6. Connect the HDS and memorize the tire pressure sensor IDs (see MEMORIZING THE TIRE PRESSURE SENSOR ID  ). Do not memorize the IDs automatically.
