Transfer Assembly Removal

Raise the vehicle on a lift, and make sure it is securely supported.
Shift the transmission into N.
Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

Fig 1: Drain Plug And Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug with a new sealing washer (B).

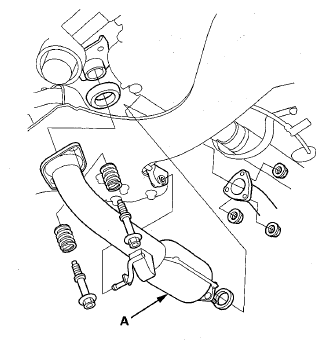

Remove the three-way catalytic converter (A).

Fig 2: Identifying Three-Way Catalytic Converter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt securing the transfer breather hose bracket (A), and disconnect the breather hose (B) from the breather pipe (C) on the transfer assembly. Cap the breather pipe to prevent fluid from leaking out.

Fig 3: Identifying Transfer Breather Hose Bracket, Breather Hose And Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).

Fig 4: Identifying Reference Mark On Propeller Shaft And Transfer Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Separate the propeller shaft from the transfer companion flange.

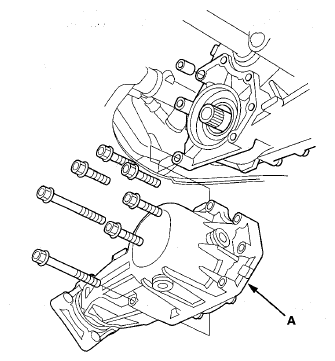

Remove the transfer assembly (A) from the transmission.

Fig 5: Identifying Transfer Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
