Cruise Control
›
Circuit Diagram
Circuit Diagram

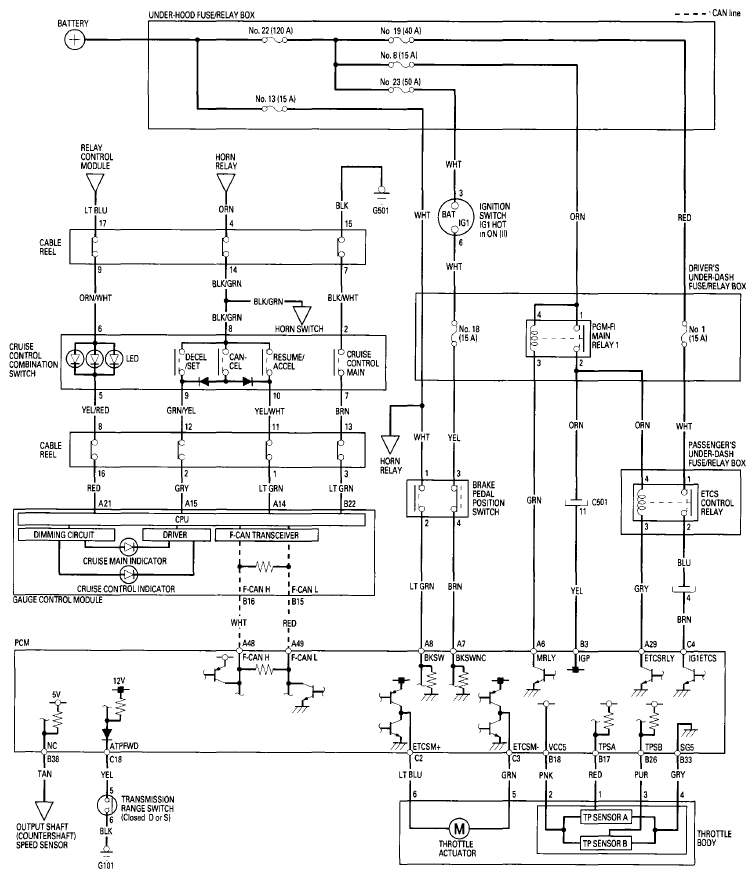

Fig 1: Cruise Control Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
