Symptom Troubleshooting Using Malfunctioning Circuit Functions

If a malfunction occurs in the immobilizer circuit, use the following table to cross-reference the malfunctioning function to the line(s) that should be checked:

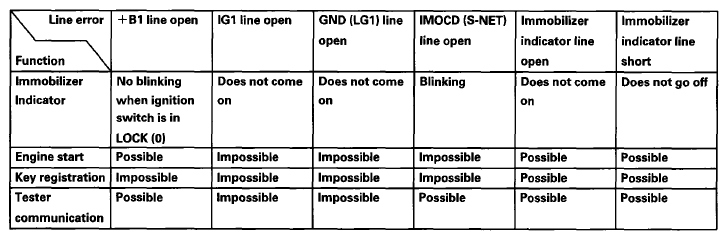

Fig 1: Symptom Troubleshooting Reference Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
