Center Console Armrest Disassembly/Reassembly

NOTE: Take care not to scratch the armrest.

Remove the console armrest (see CENTER CONSOLE ARMREST REMOVAL/INSTALLATION ).

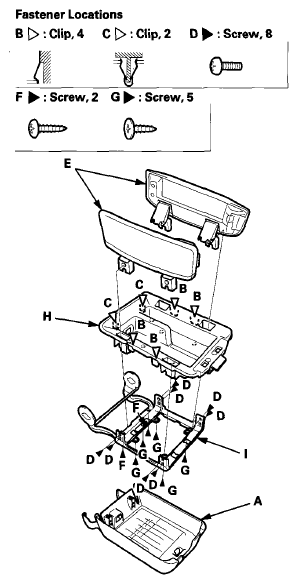

Disassemble the console armrest.
1. Remove the arm rest tray cover (A) by detaching the clips (B, C).
2. Remove the screws (D), then remove the armrest lids (E).
3. Remove the screws (F, G), then remove the armrest tray (H) from the armrest bracket (I).
Fig 1: Removing Armrest Tray From Armrest Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

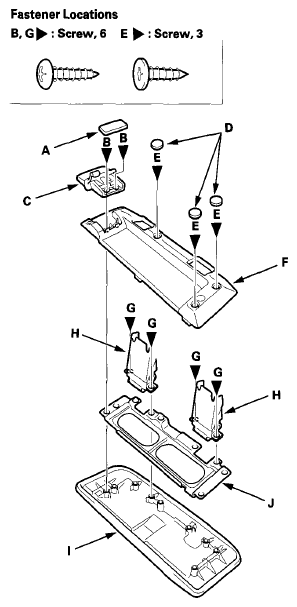

Disassemble the armrest lid.
1. Pry out the lock cover (A).
2. Remove the screws (B), then remove the armrest lid lock (C).
3. Release the seals (D), and remove the screws (E), then remove the armrest lid cover (F).
4. Remove the screws (G), then remove the armrest hinges (H) and the armrest lid (I) from the armrest lid bracket (J).
Fig 2: Removing Armrest Hinges And Armrest Lid From Armrest Lid Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reassemble the armrest in the reverse order of disassembly, and push the clips into place securely.
