DTC P0627: Fuel Pump Control System Malfunction: Notes

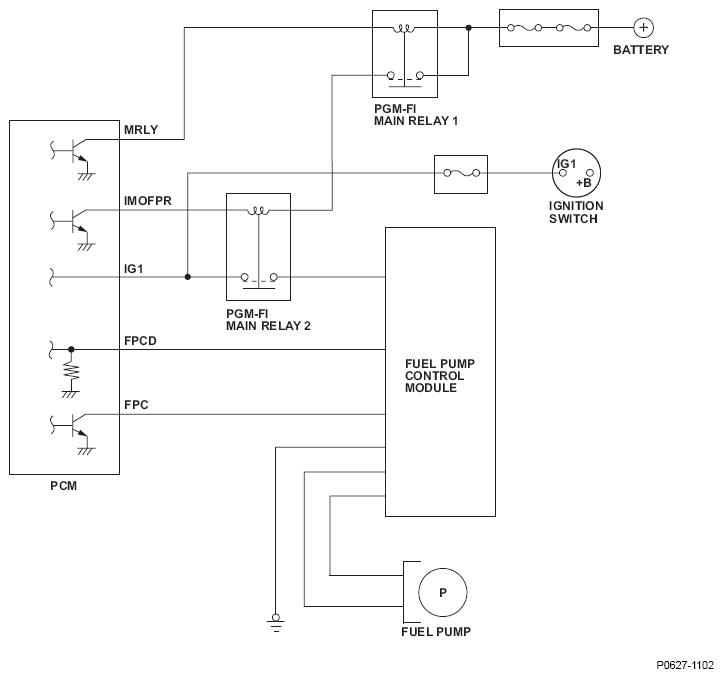

Fig 1: Fuel Pump Control Module - Circuit Diagram
G08547080
