DLC Connector End View (View 383)

LT GRY
Under left side of dash
On dashboard wire harness (left branch)

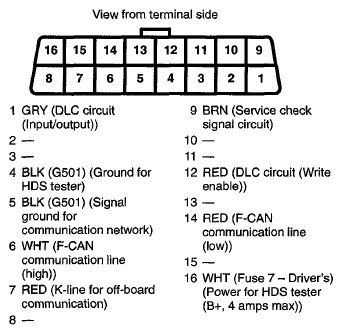

Fig 1: DLC Connector Terminals (View 383)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Data Link Connector (DLC) terminals are numbered according to SAE standard J1962, not the Acura standard. The numbers of the four end terminals are molded into the corners of the connector face.
