Component Location Index
Component Location Index

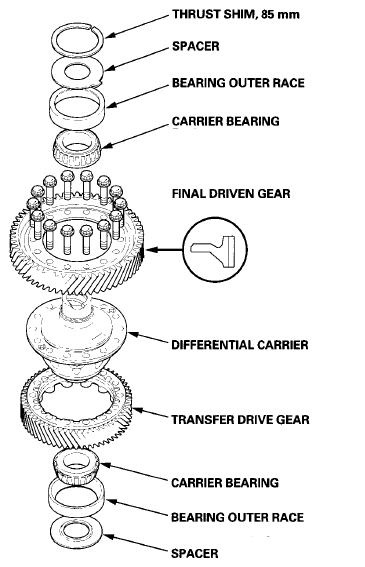

Fig 1: Exploded View Of A/T Differential
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
