Multiplex Integrated Control System
›
UART Communication Line
UART Communication Line

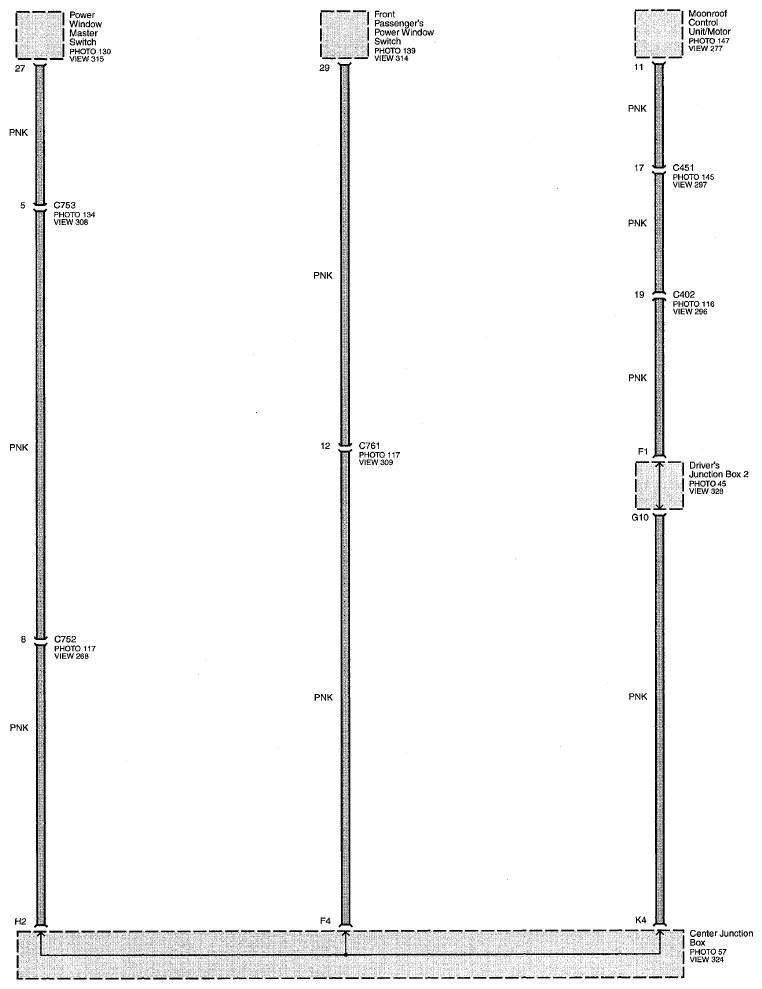

Fig 1: Multiplex Integrated Control System Circuit Diagram - UART Communication Line (Page 50-11)
