With Navigation

NOTE: Refer to the navigation section for audio-navigation unit connector G, H, and J inputs and outputs (see NAVIGATION UNIT CONNECTORS )

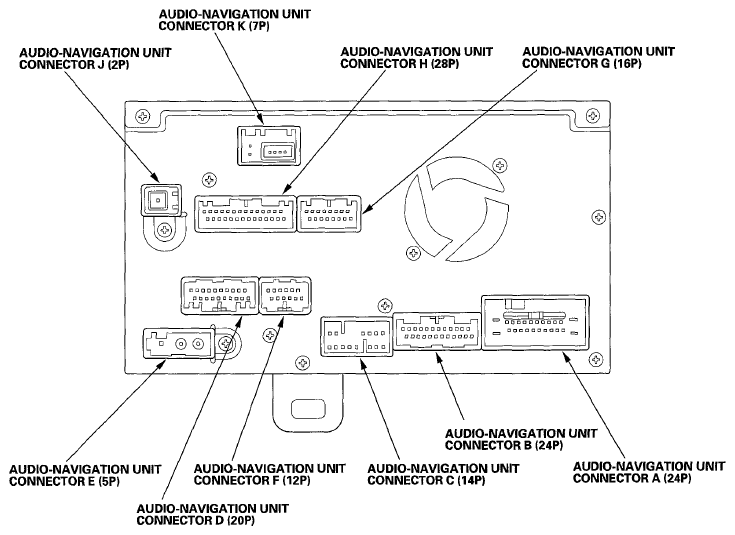

Fig 1: Identifying Audio Unit Connectors - With Navigation

Courtesy of AMERICAN HONDA MOTOR CO., INC.
