Component Location Index

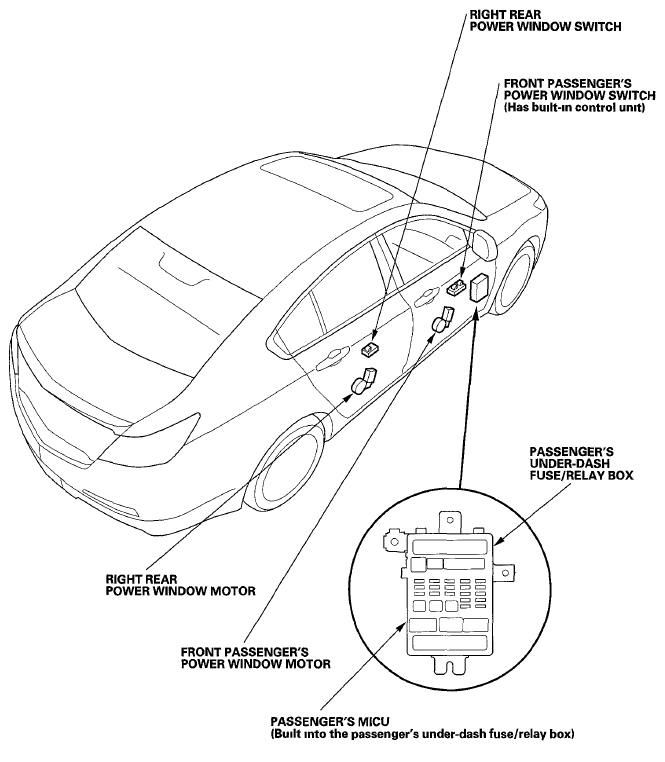

Fig 1: Identifying Power Windows Component Locations (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

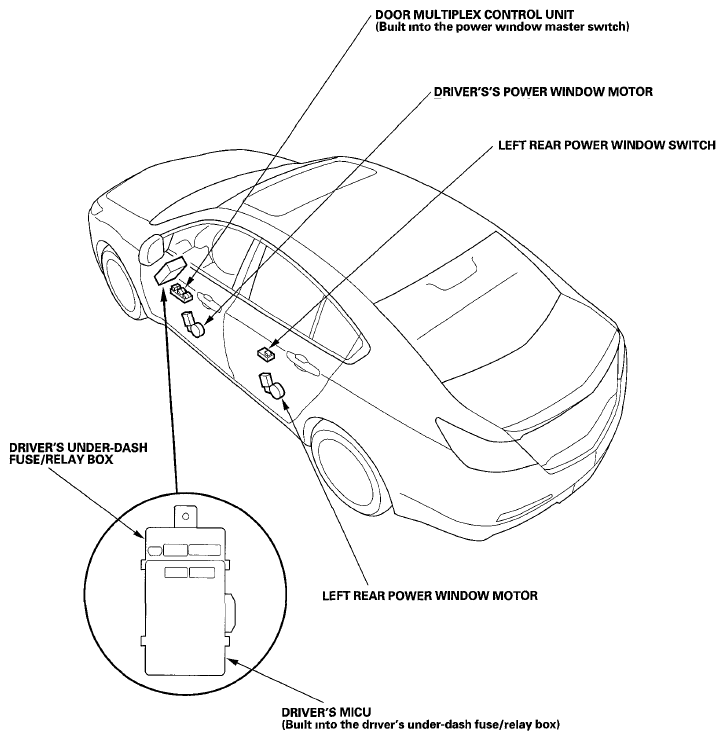

Fig 2: Identifying Power Windows Component Locations (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
