A/T Controls

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

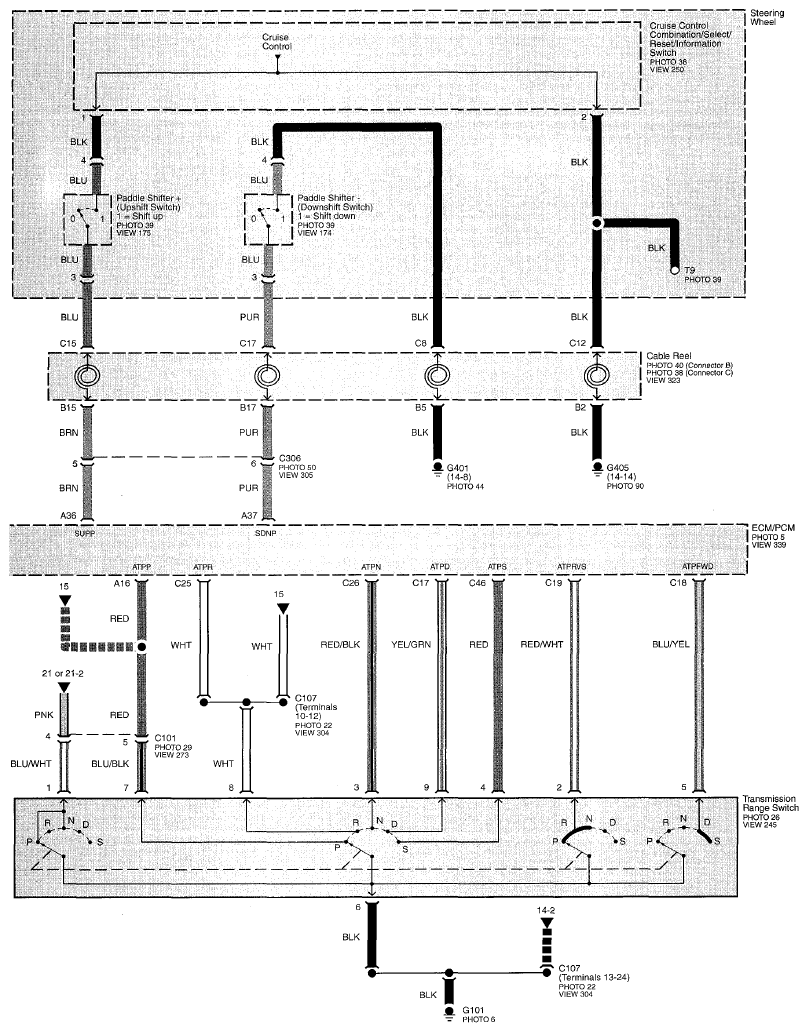

Fig 1: Reverse Lockout System Circuit Diagram - A/T Controls (Page 39)

Fig 2: Reverse Lockout System Circuit Diagram - A/T Controls (Page 39-1)

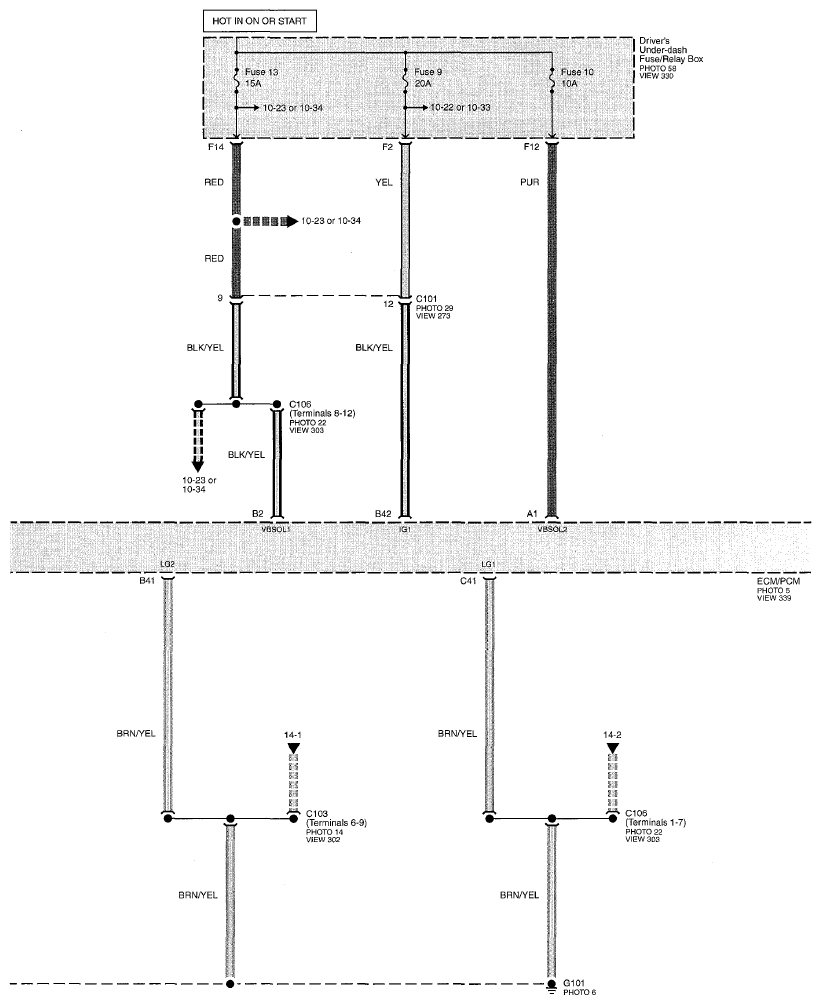

Fig 3: Reverse Lockout System Circuit Diagram - A/T Controls (Page 39-2)

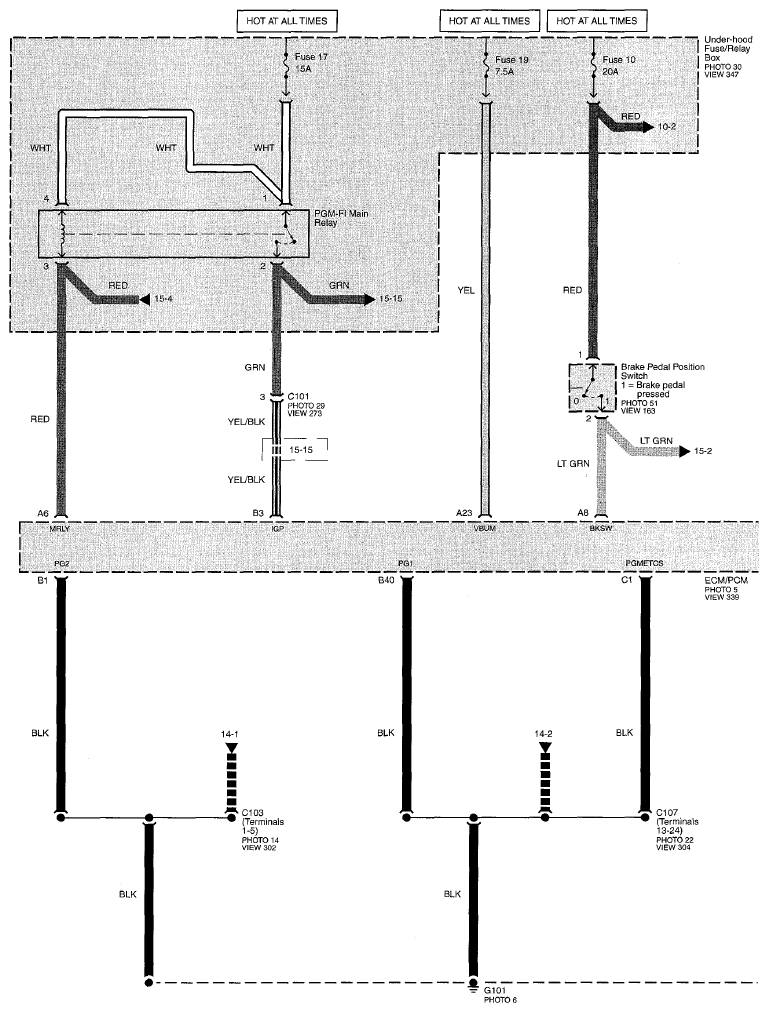

Fig 4: Reverse Lockout System Circuit Diagram - A/T Controls (Page 39-3)

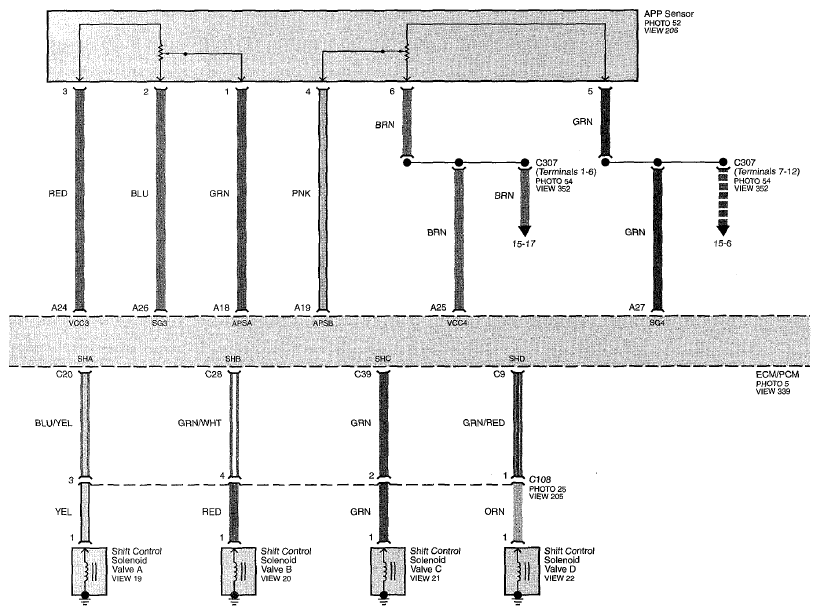

Fig 5: Reverse Lockout System Circuit Diagram - A/T Controls (Page 39-4)

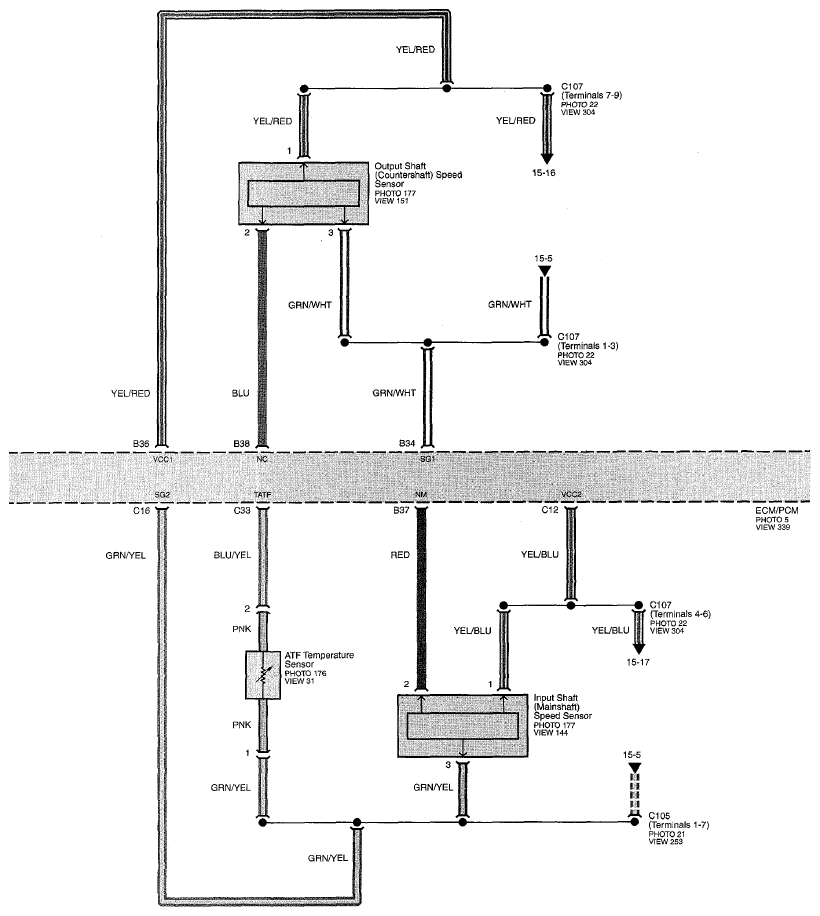

Fig 6: Reverse Lockout System Circuit Diagram - A/T Controls (Page 39-5)
