A/T Gear Position Indicator: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

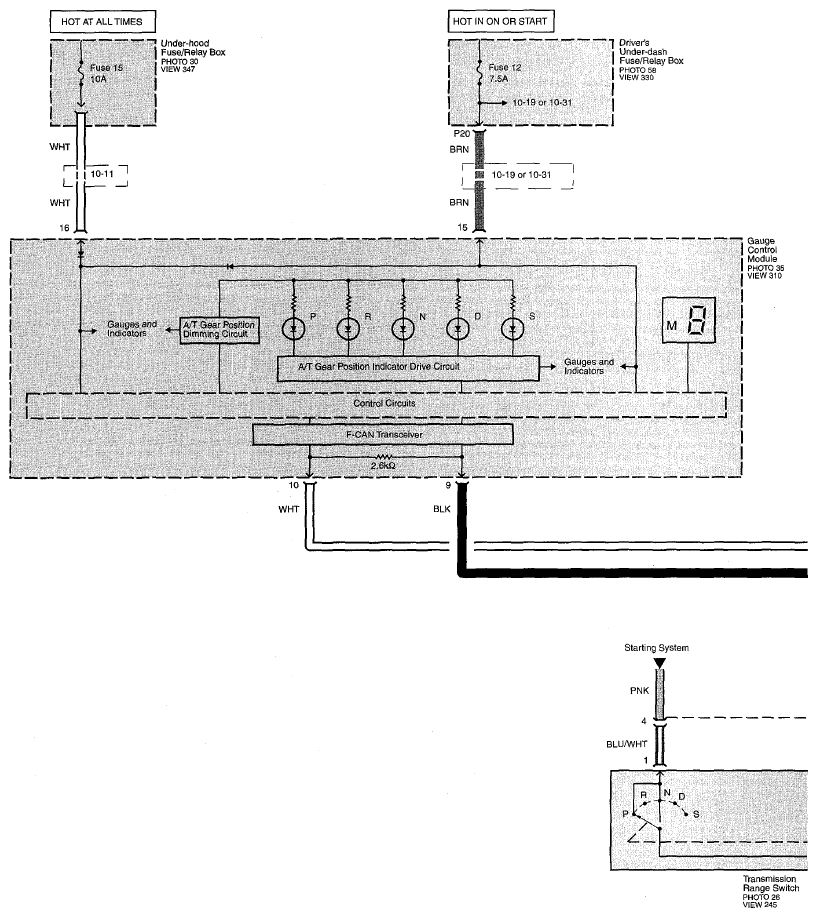

Fig 1: A/T Gear Position Indicator Circuit Diagram (Page 89)

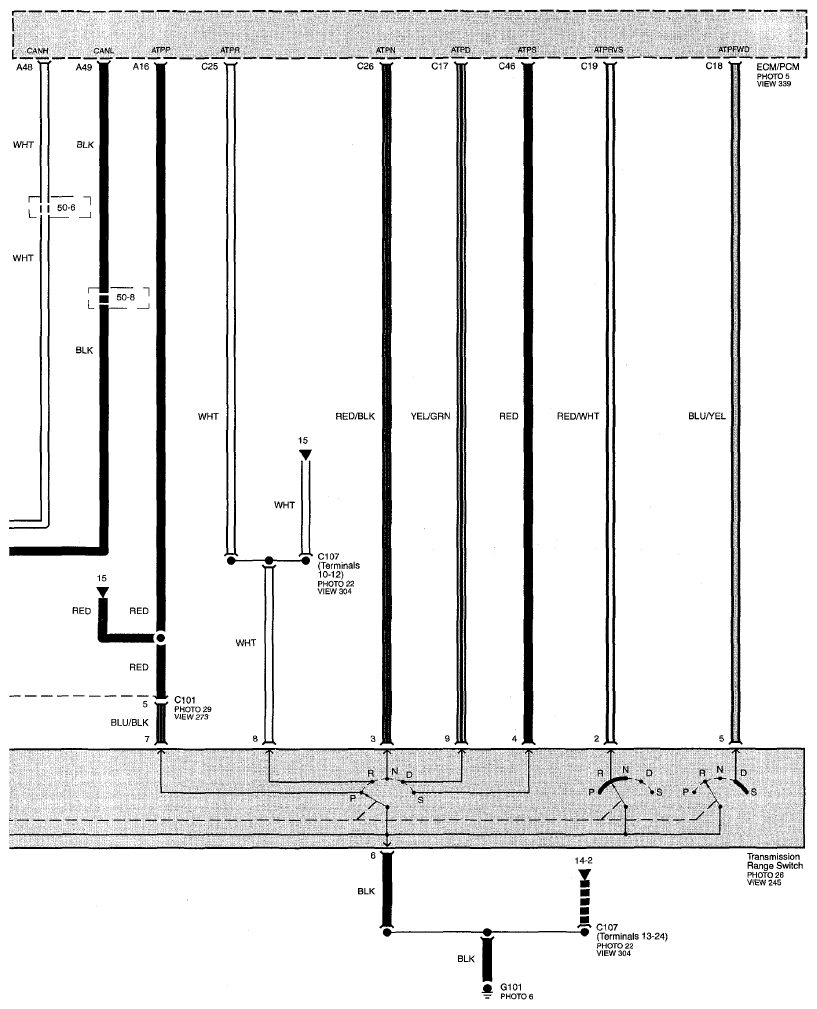

Fig 2: A/T Gear Position Indicator Circuit Diagram (Page 89-1)
