Audio System: Navigation

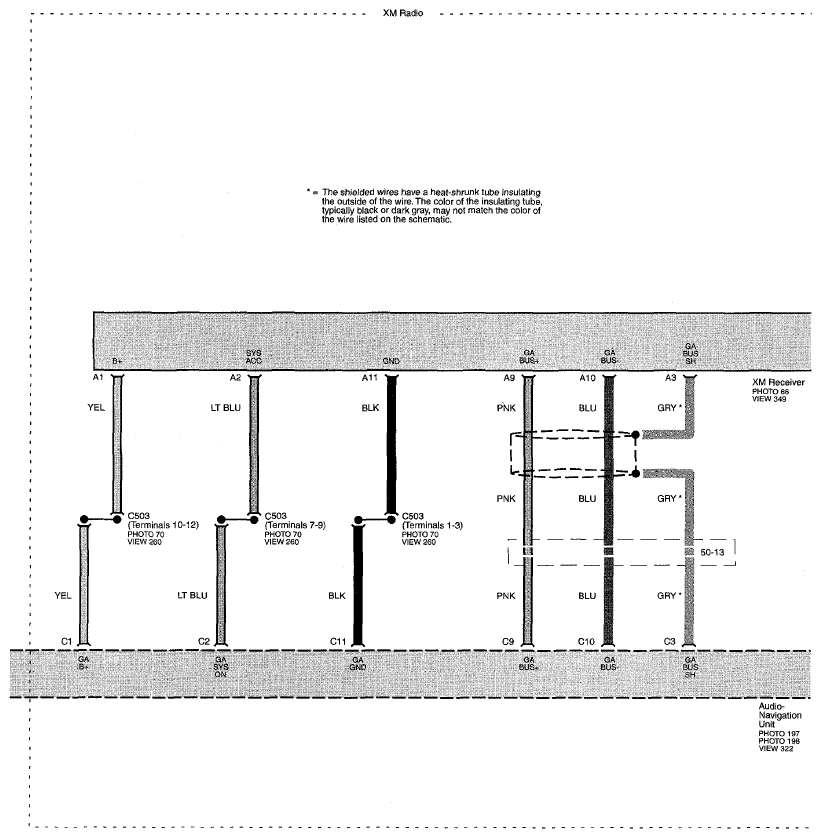

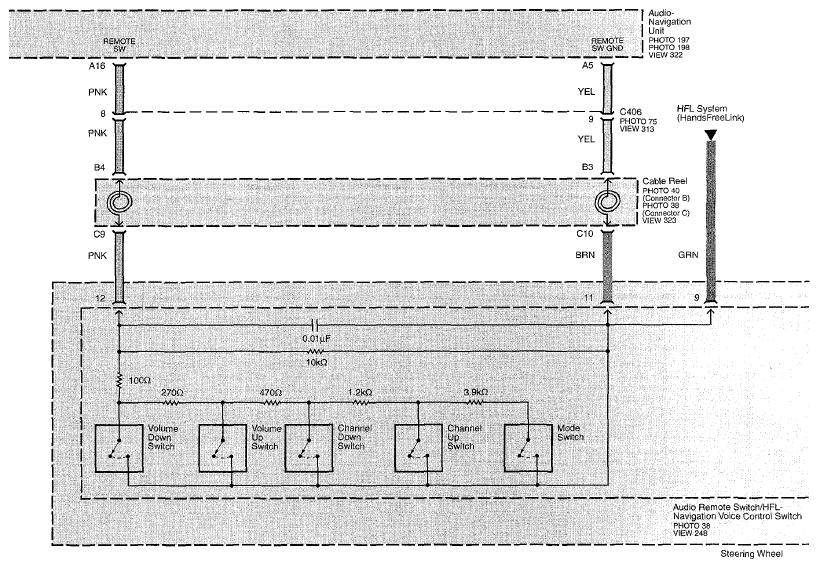

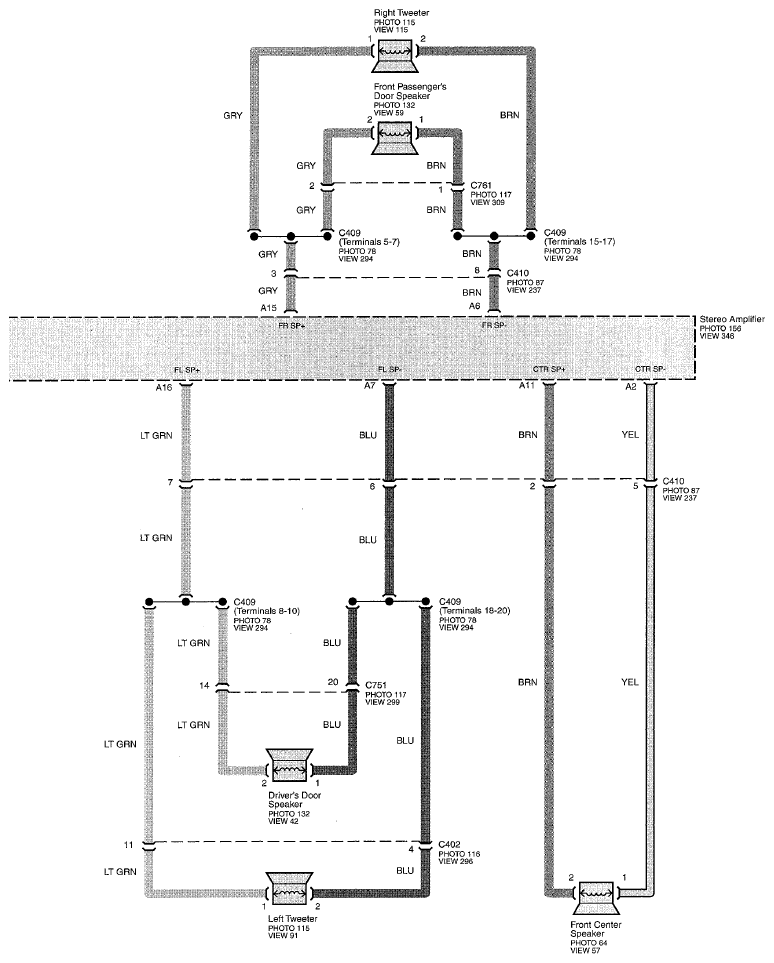

Fig 1: Audio System Circuit Diagram - Navigation (Page 150-16)

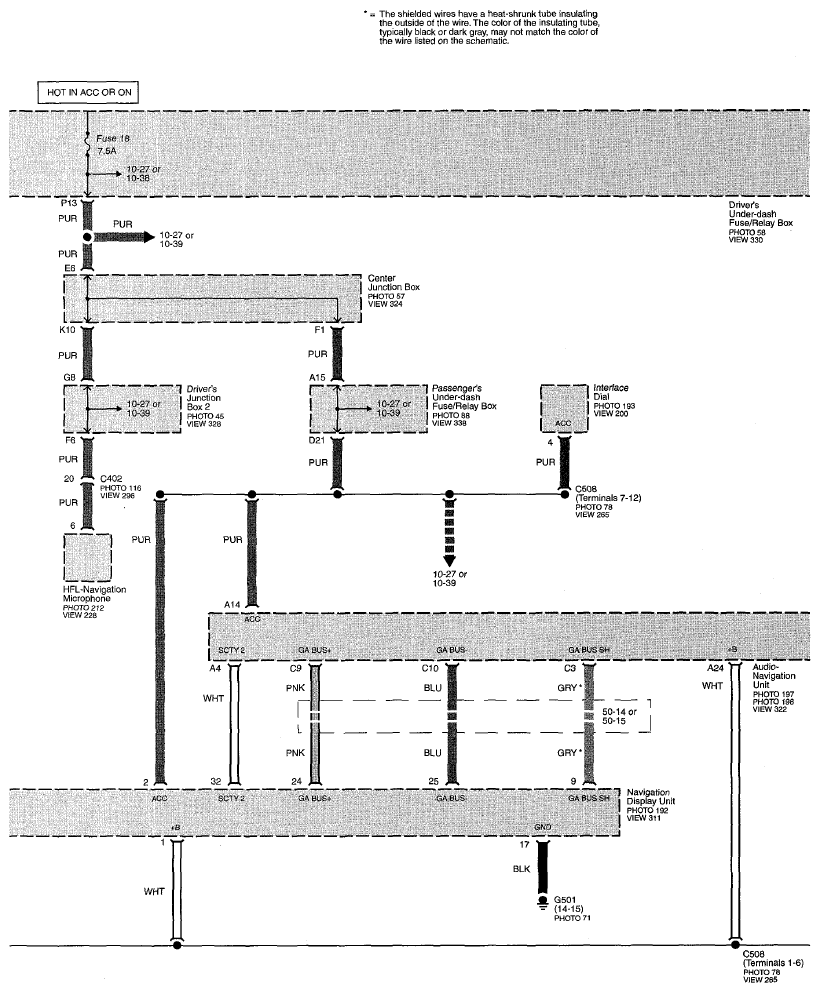

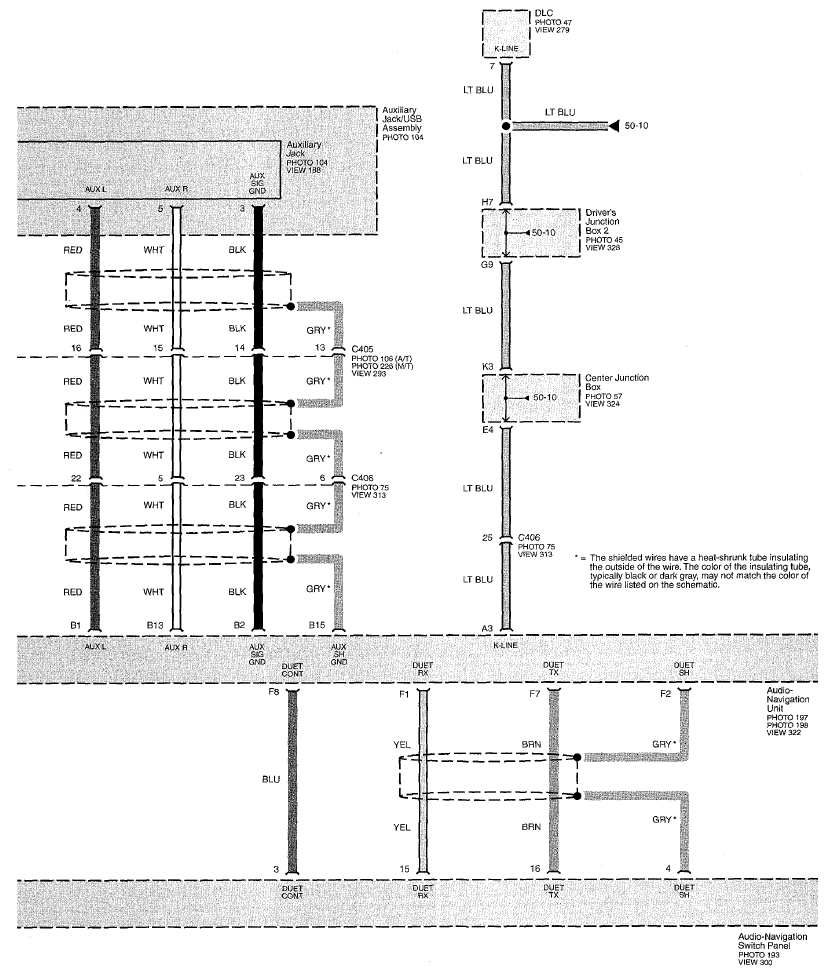

Fig 2: Audio System Circuit Diagram - Navigation (Page 150-17)

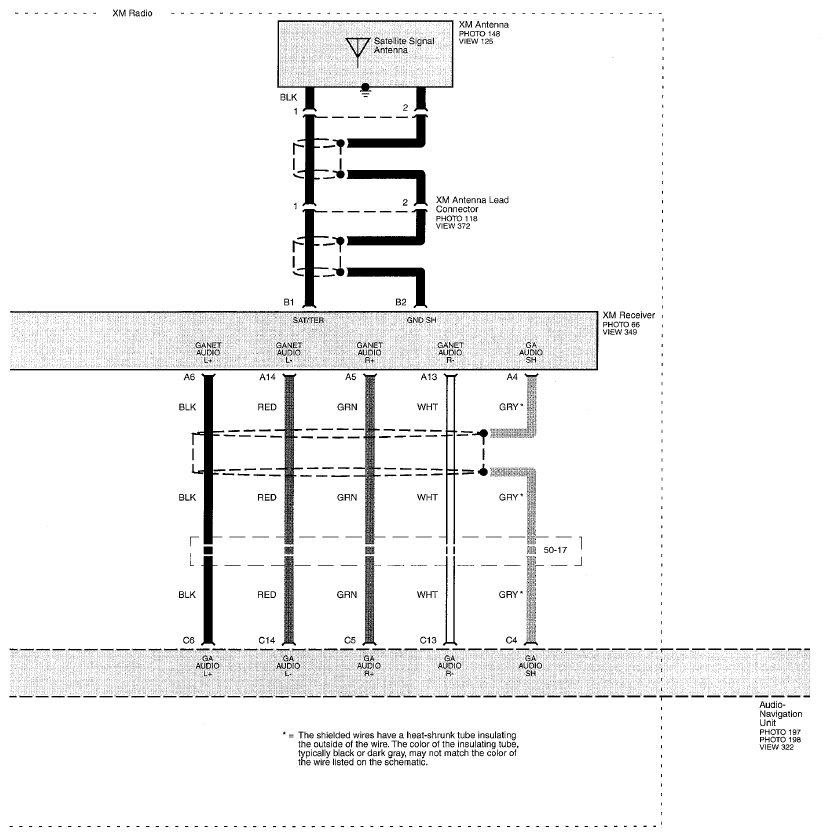

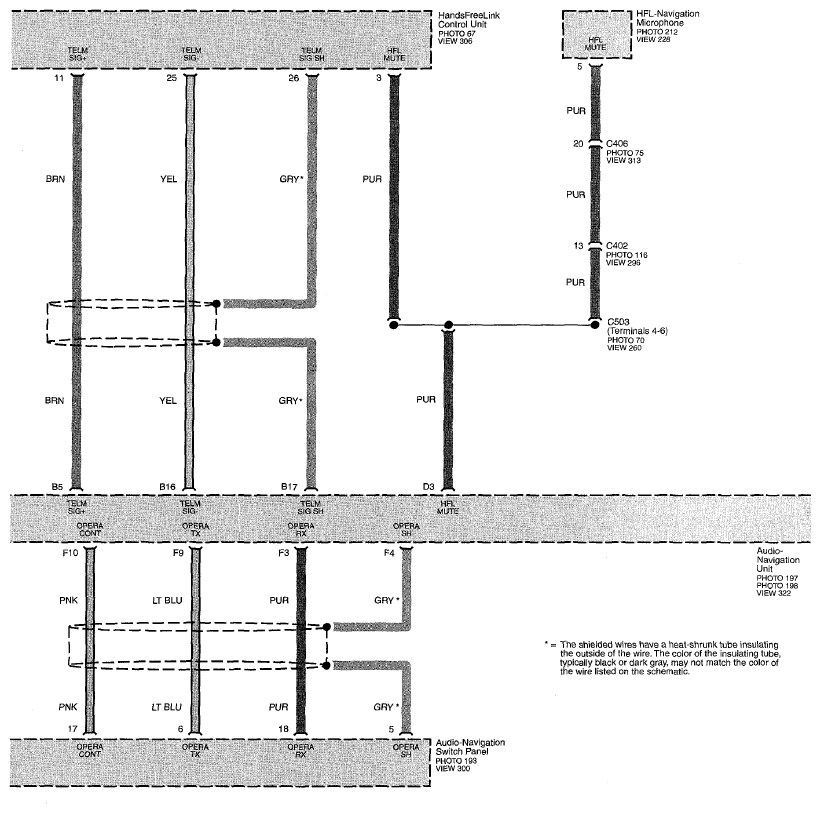

Fig 3: Audio System Circuit Diagram - Navigation (Page 150-18)

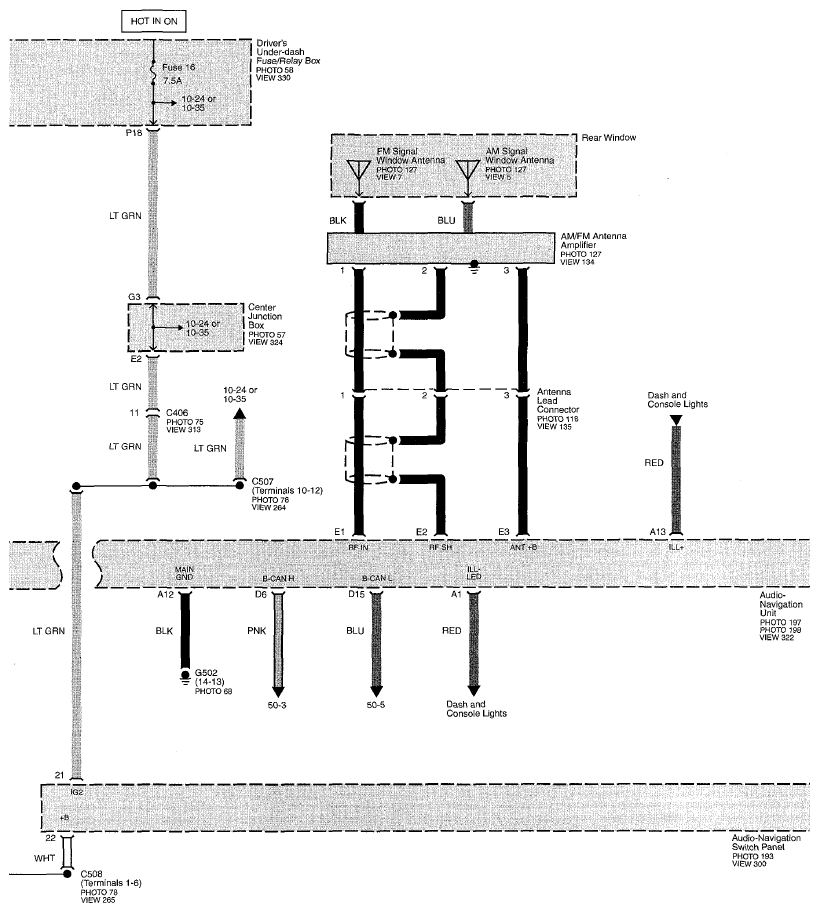

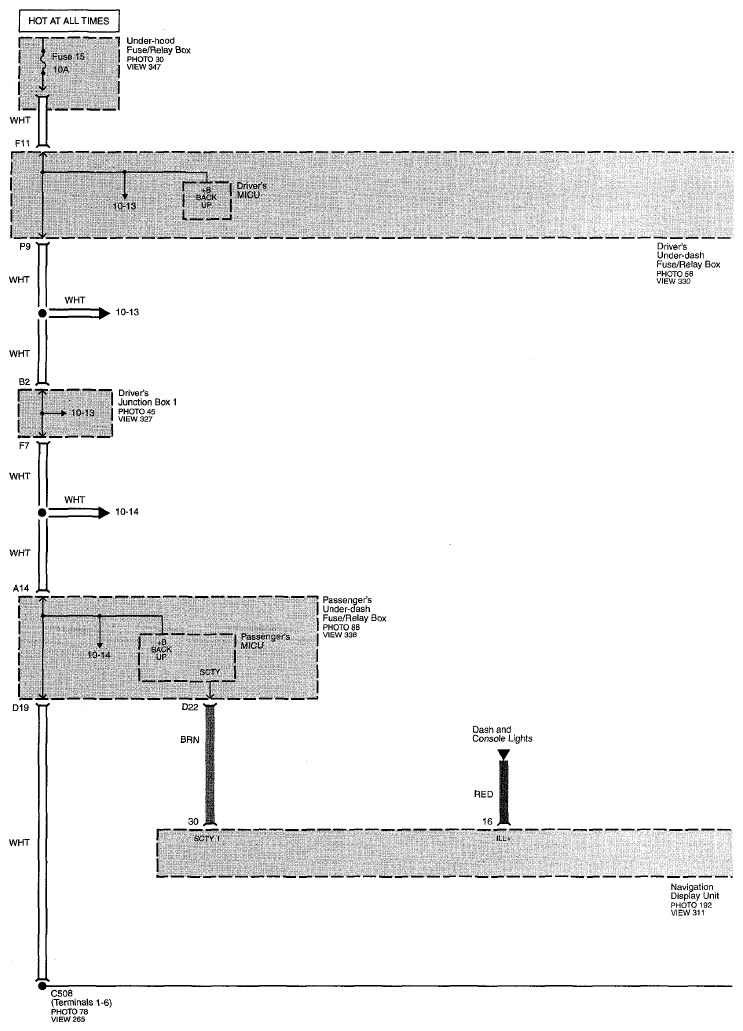

Fig 4: Audio System Circuit Diagram - Navigation (Page 150-19)

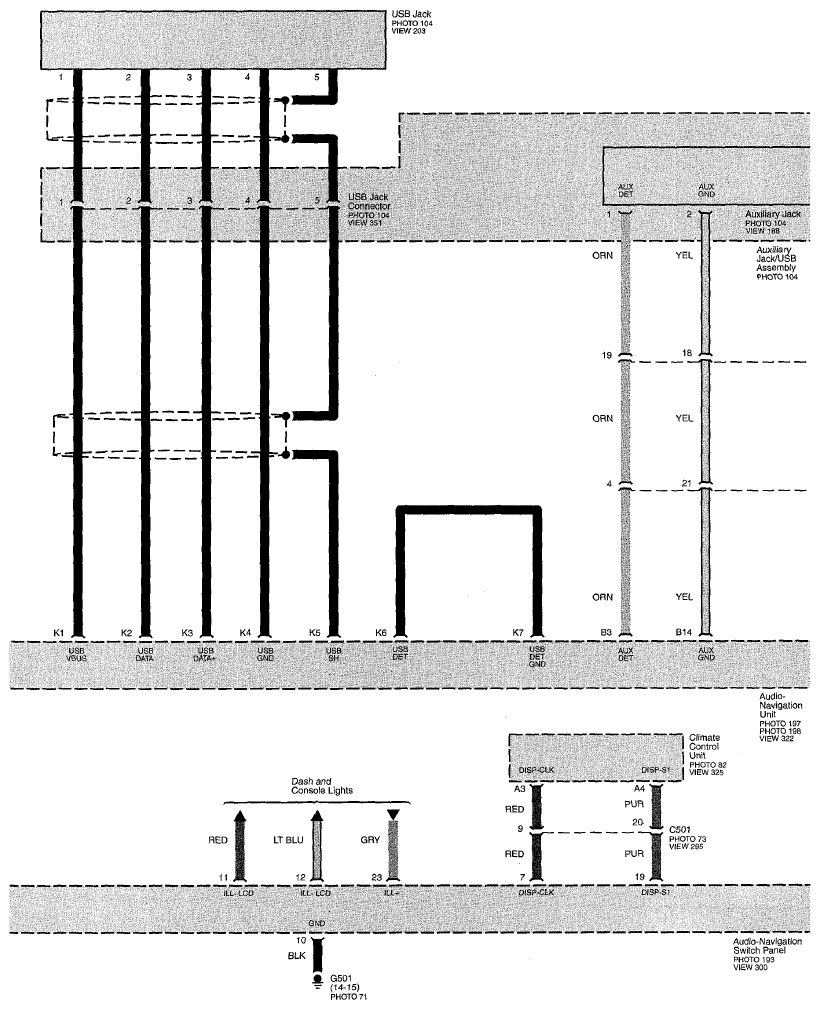

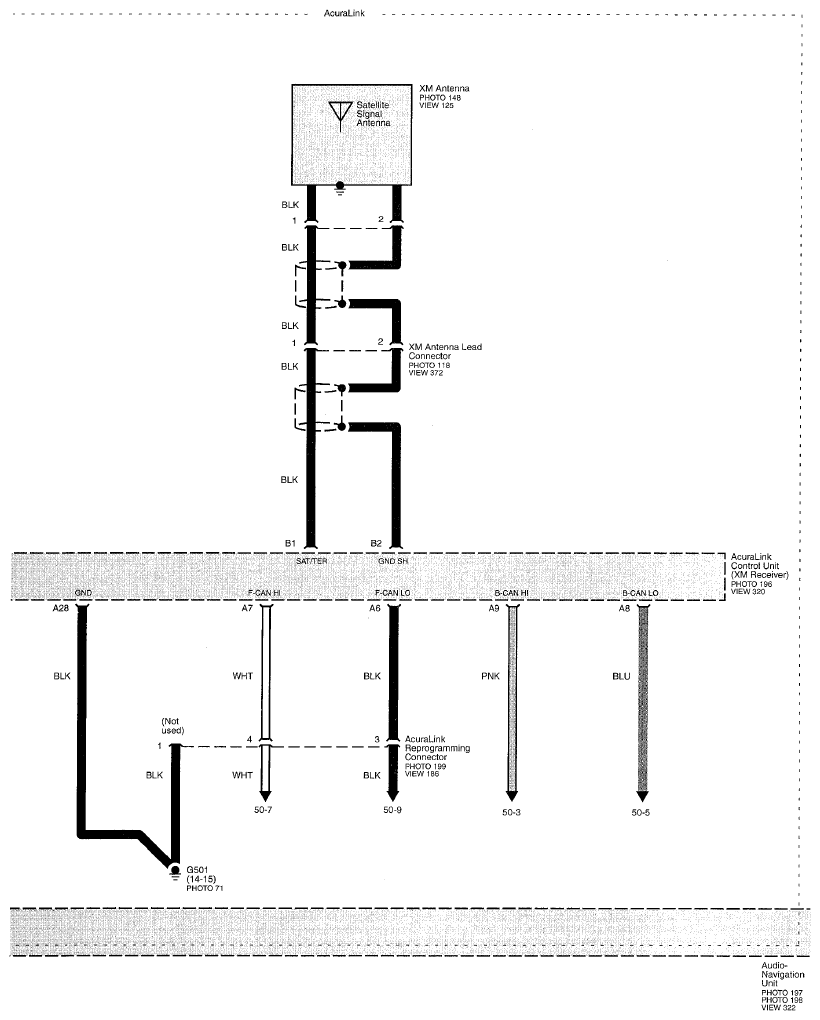

Fig 5: Audio System Circuit Diagram - Navigation (Page 150-20)

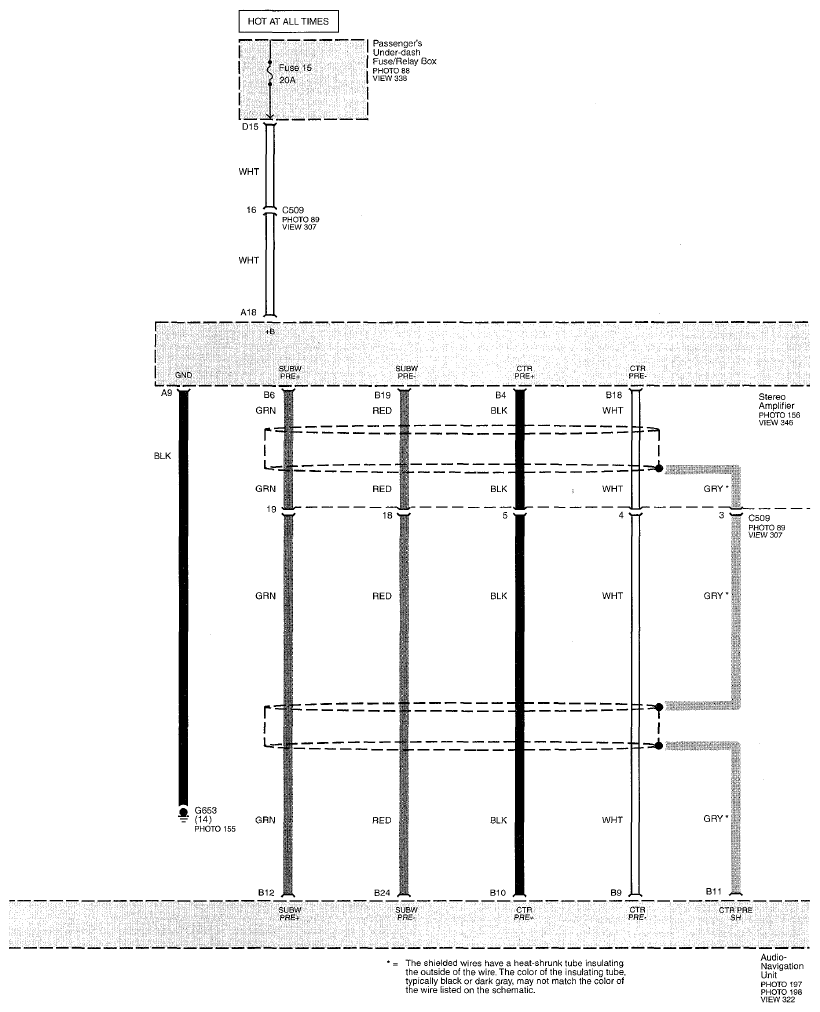

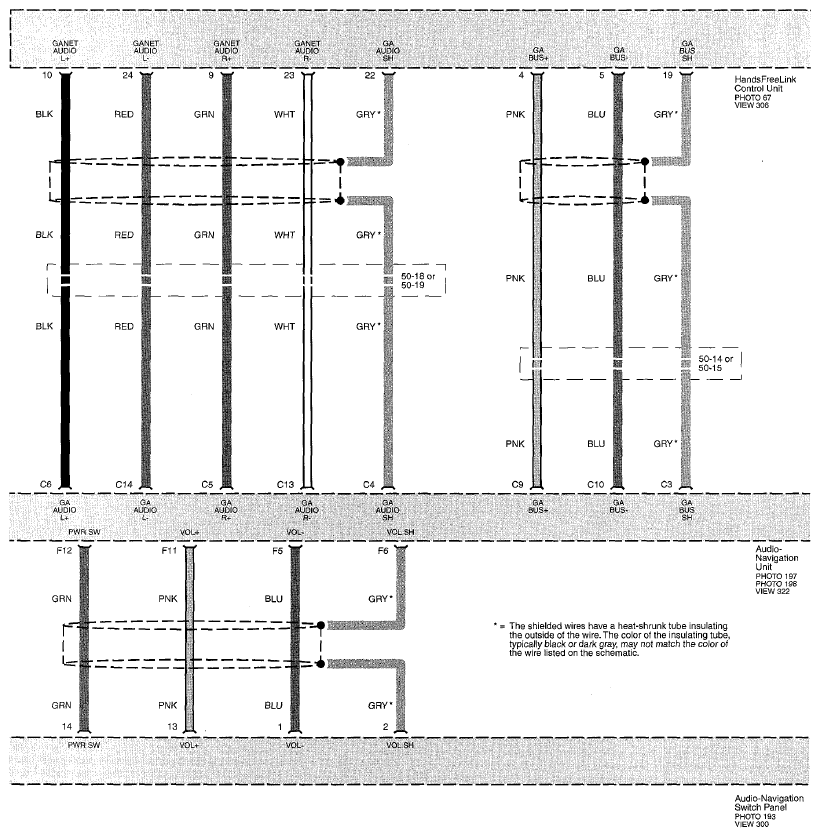

Fig 6: Audio System Circuit Diagram - Navigation (Page 150-21)

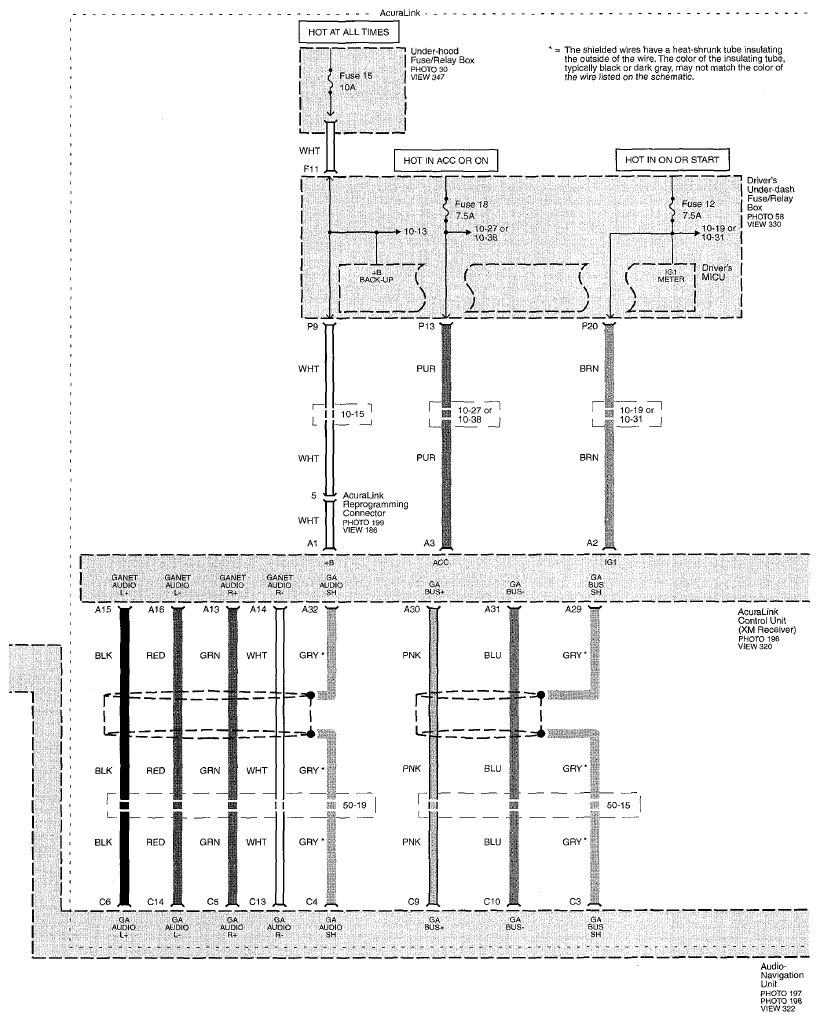

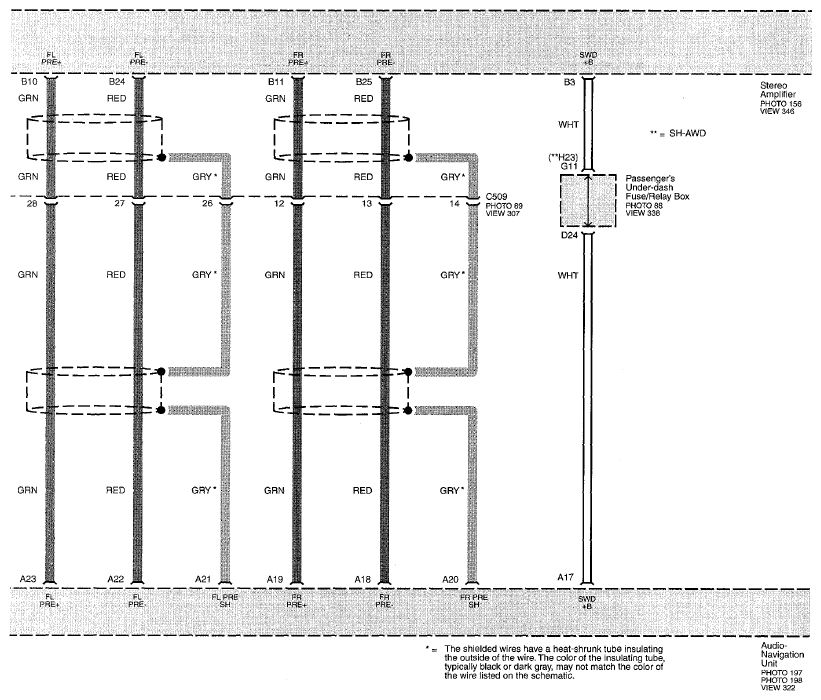

Fig 7: Audio System Circuit Diagram - Navigation (Page 150-22)

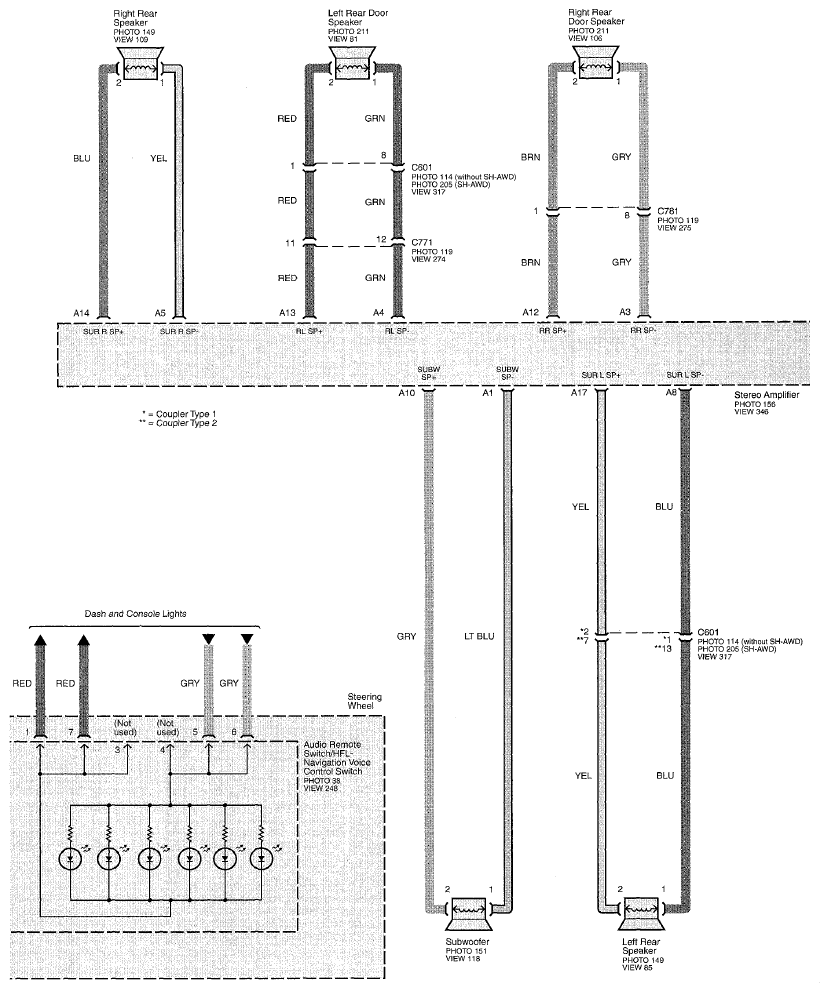

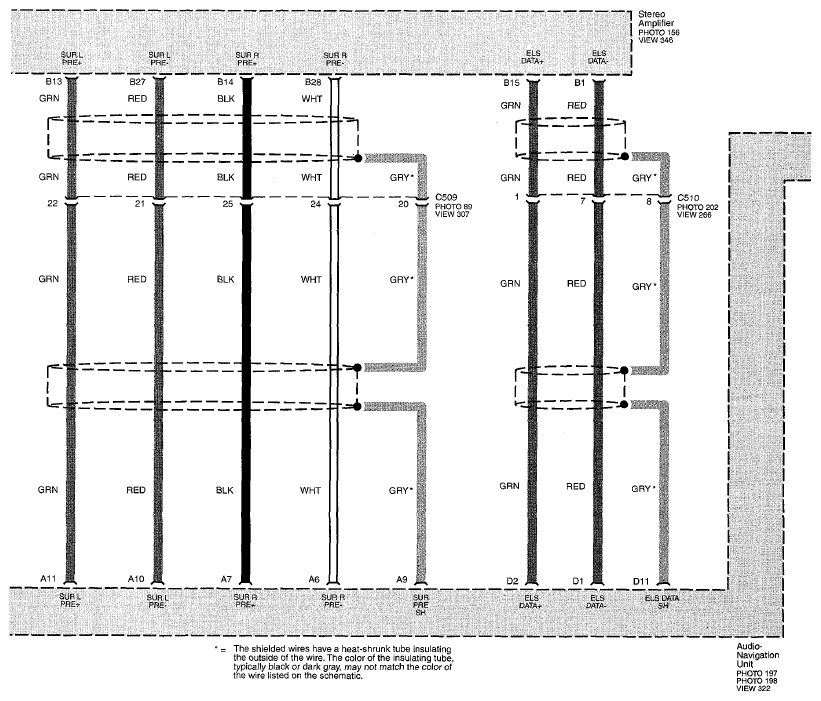

Fig 8: Audio System Circuit Diagram - Navigation (Page 150-23)

Fig 9: Audio System Circuit Diagram - Navigation (Page 150-24)

Fig 10: Audio System Circuit Diagram - Navigation (Page 150-25)

Fig 11: Audio System Circuit Diagram - Navigation (Page 150-26)

Fig 12: Audio System Circuit Diagram - Navigation (Page 150-27)

Fig 13: Audio System Circuit Diagram - Navigation (Page 150-28)

Fig 14: Audio System Circuit Diagram - Navigation (Page 150-29)

Fig 15: Audio System Circuit Diagram - Navigation (Page 150-30)

Fig 16: Audio System Circuit Diagram - Navigation (Page 150-31)

Fig 17: Audio System Circuit Diagram - Navigation (Page 150-32)
