OEM Circuit Diagrams: DPMS: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

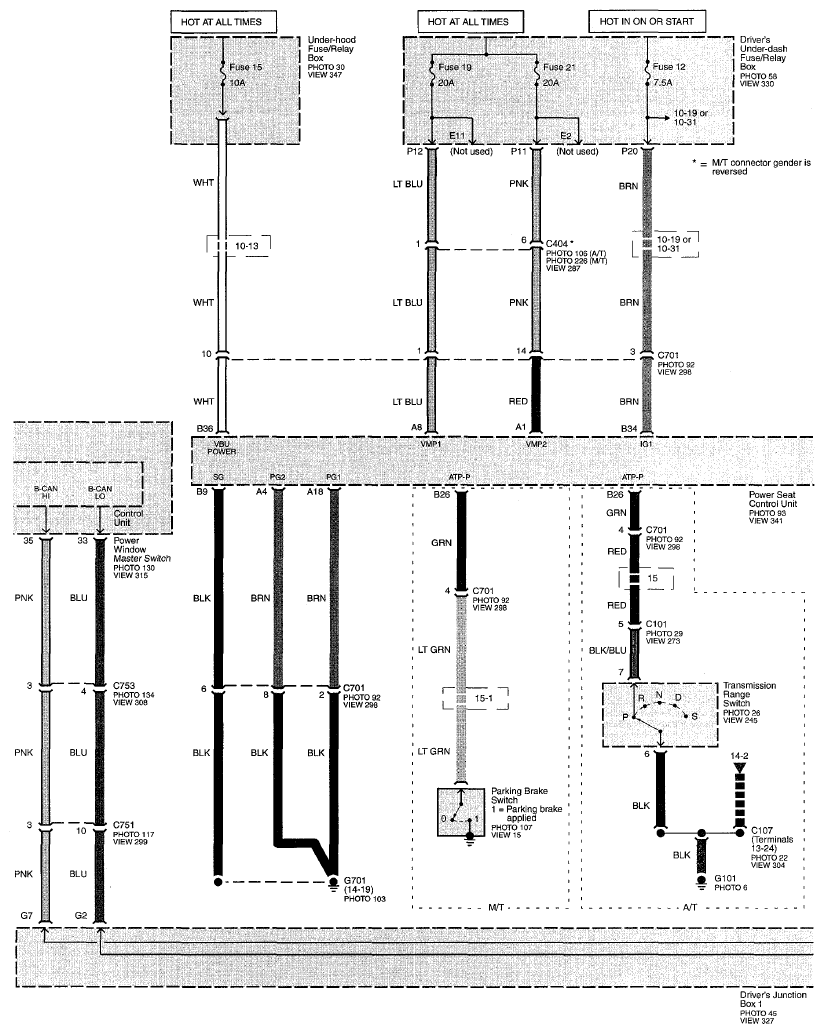

Fig 1: DPMS Circuit Diagram (Page 143)

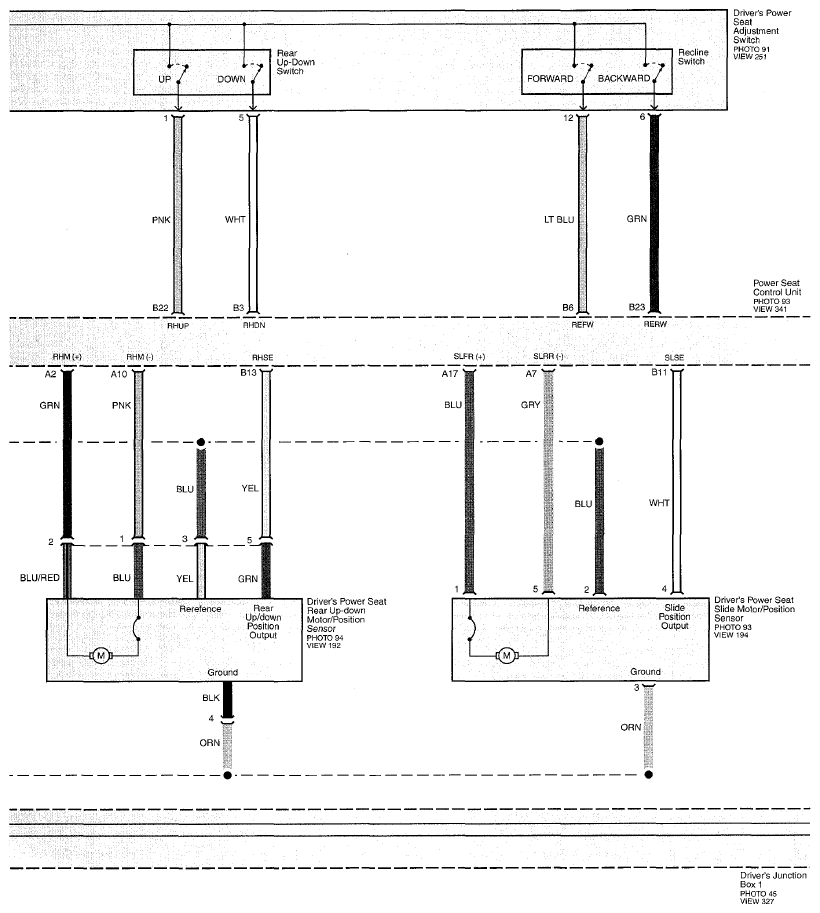

Fig 2: DPMS Circuit Diagram (Page 143-1)

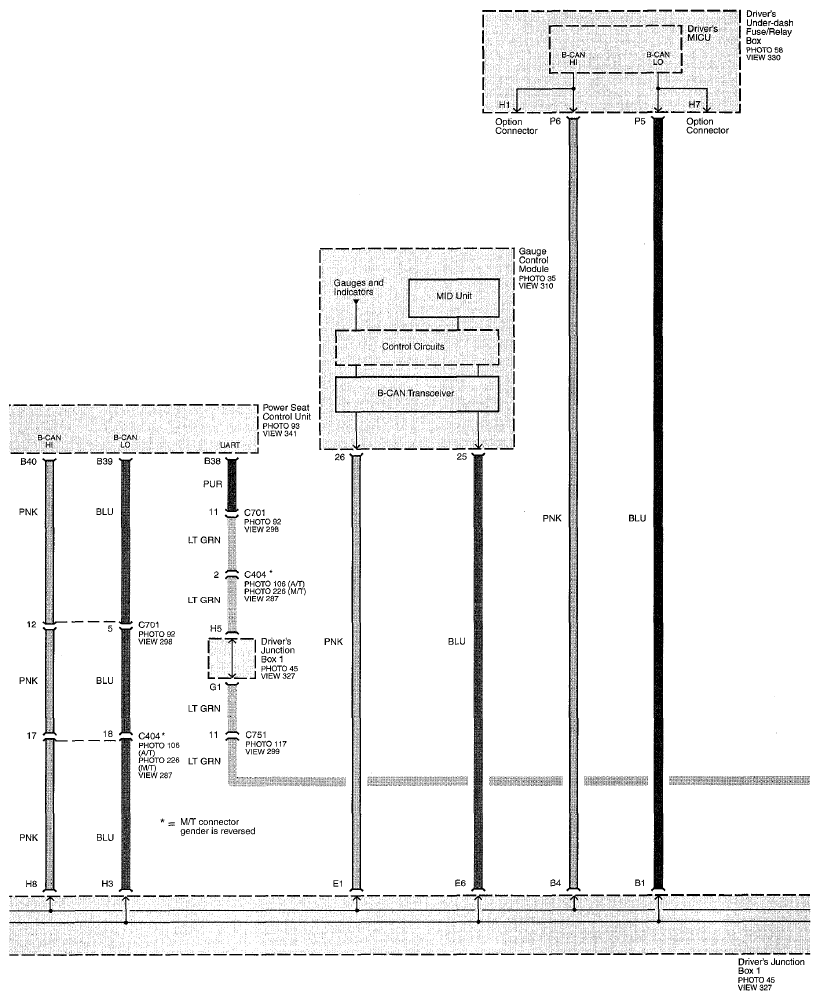

Fig 3: DPMS Circuit Diagram (Page 143-2)

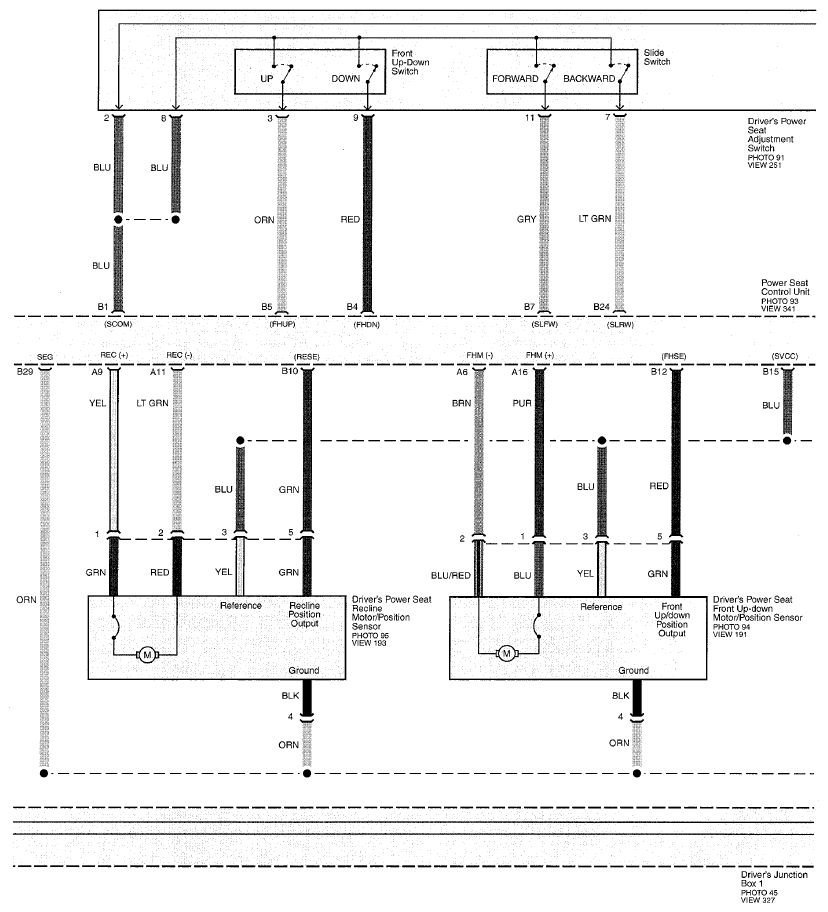

Fig 4: DPMS Circuit Diagram (Page 143-3)

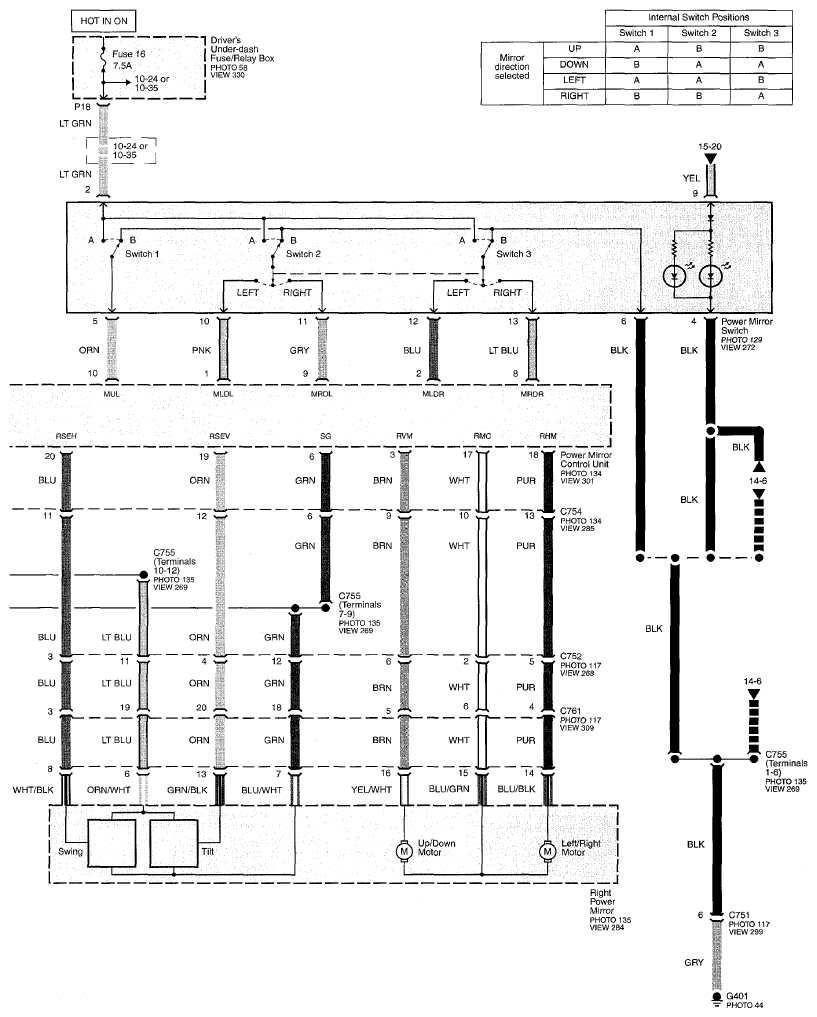

Fig 5: DPMS Circuit Diagram (Page 143-4)

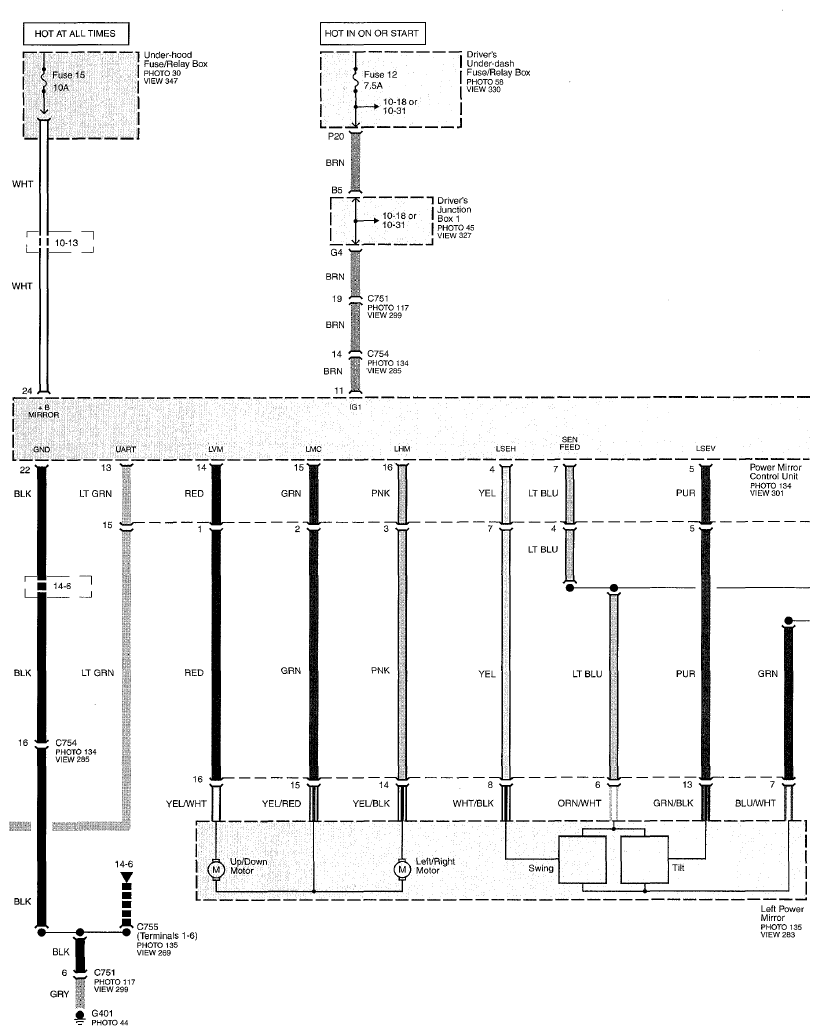

Fig 6: DPMS Circuit Diagram (Page 143-5)

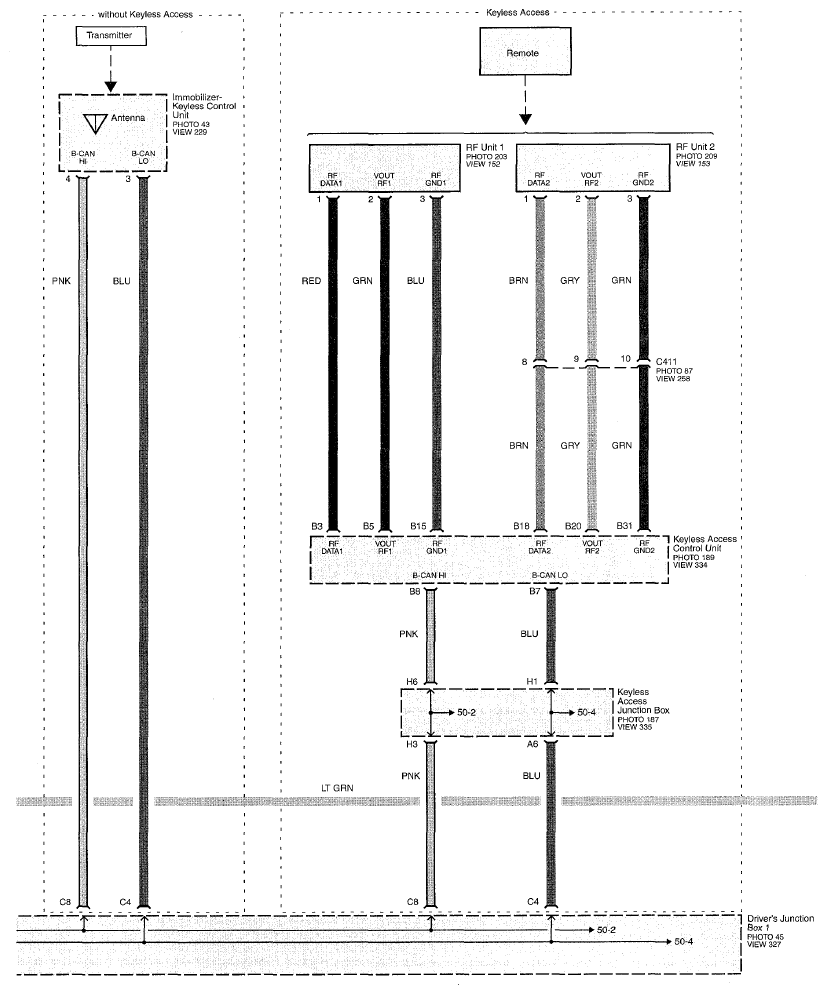

Fig 7: DPMS Circuit Diagram (Page 143-6)

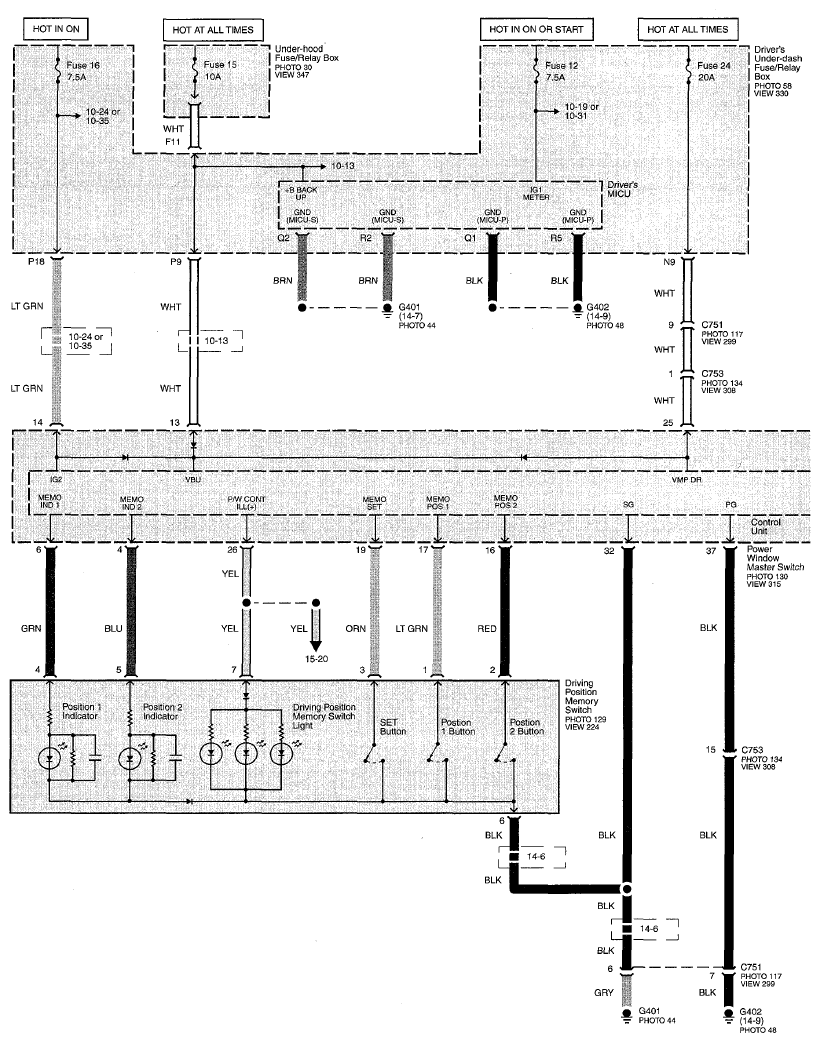

Fig 8: DPMS Circuit Diagram (Page 143-7)
