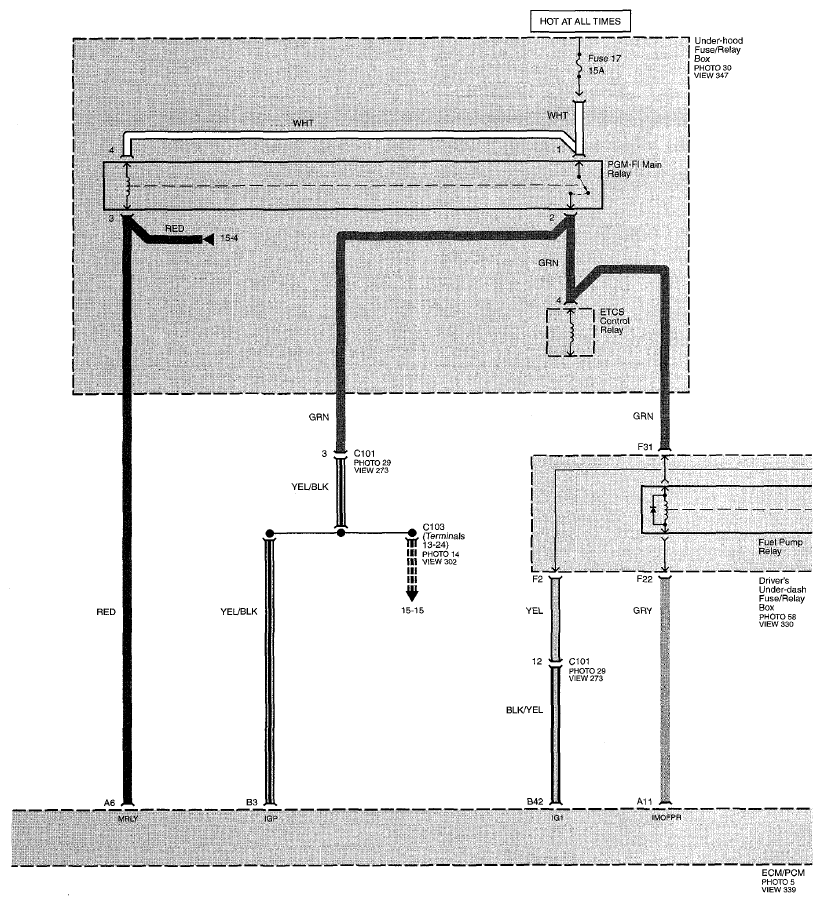

Fig 1: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132)

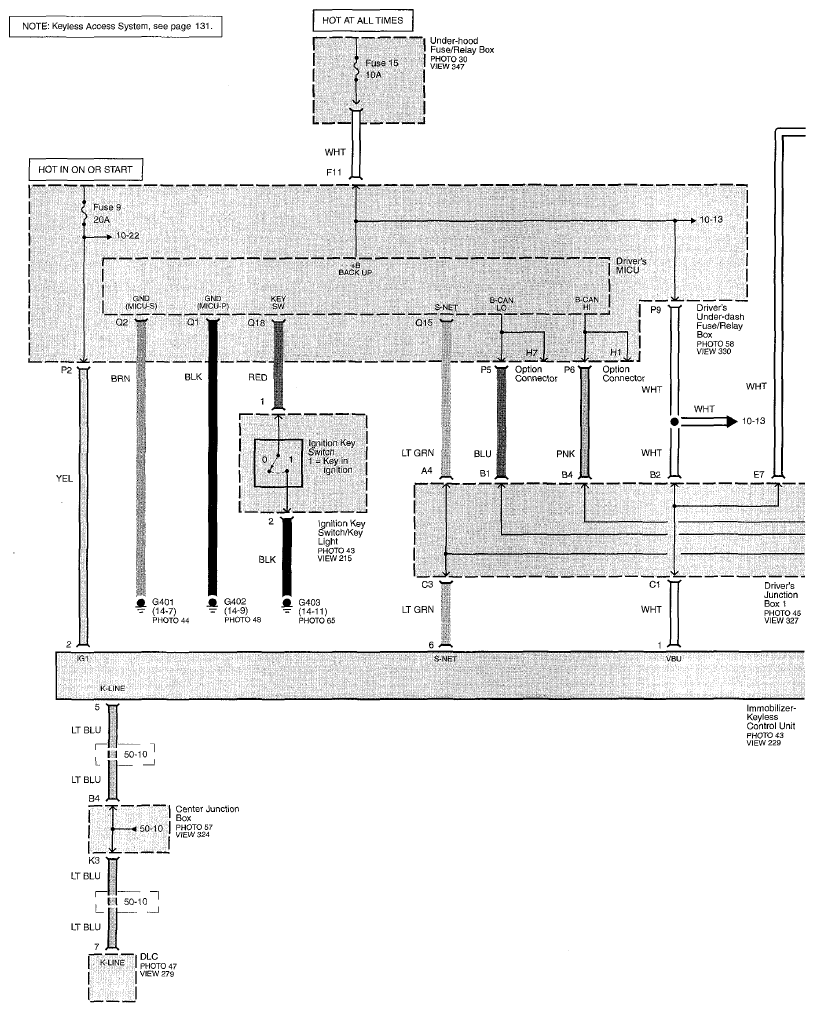

Fig 2: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132-1)

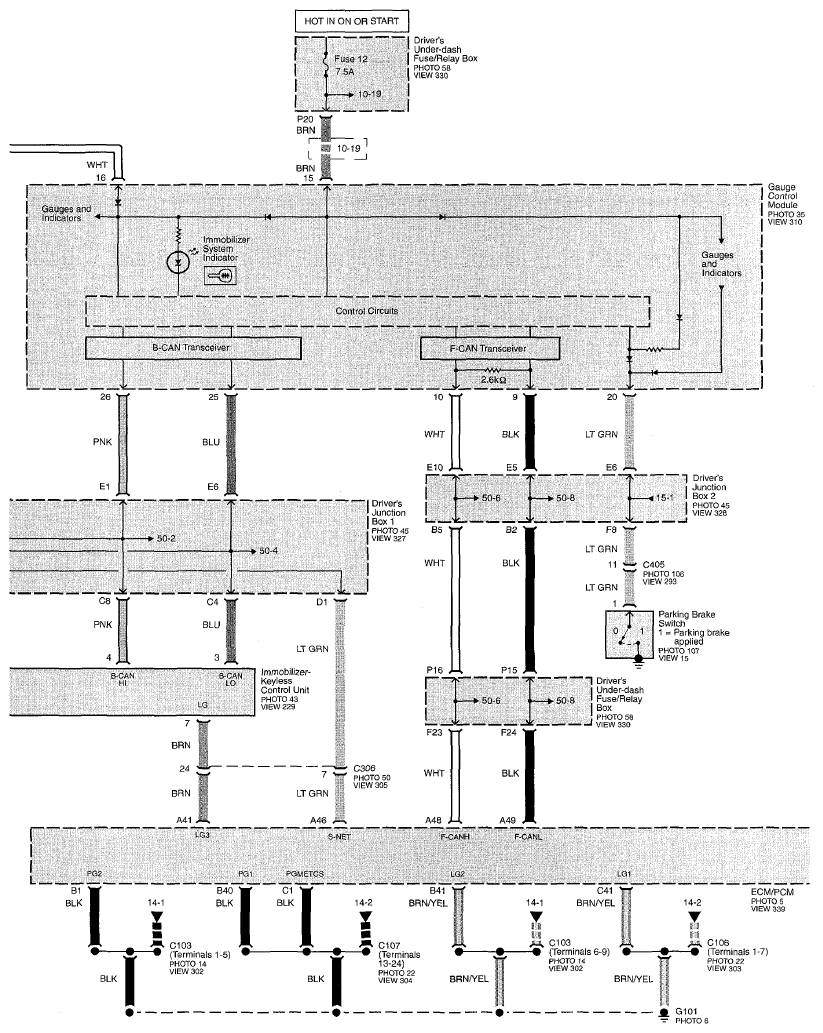

Fig 3: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132-2)
Fig 4: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132-3)
