Interlock System
›
A/T: Keyless Access
A/T: Keyless Access
Fig 1: Interlock System Circuit Diagram - A/T: Without Keyless Access (Page 138-2)

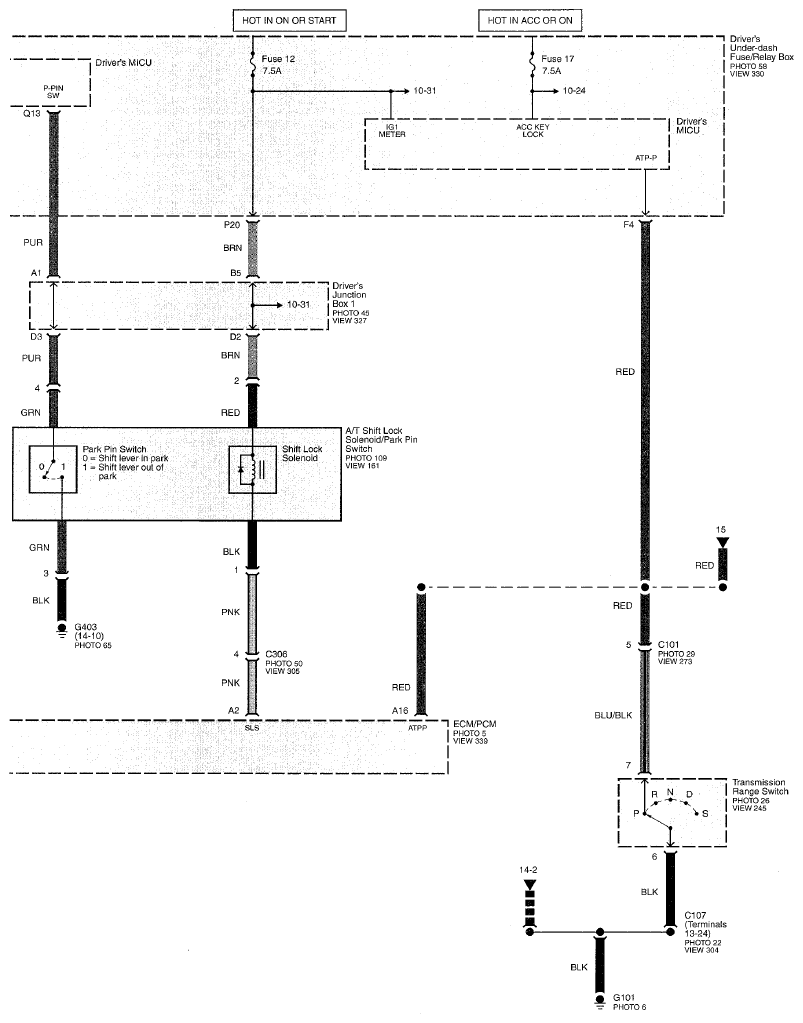

Fig 2: Interlock System Circuit Diagram - A/T: Without Keyless Access (Page 138-3)
