A/T: without Keyless Access

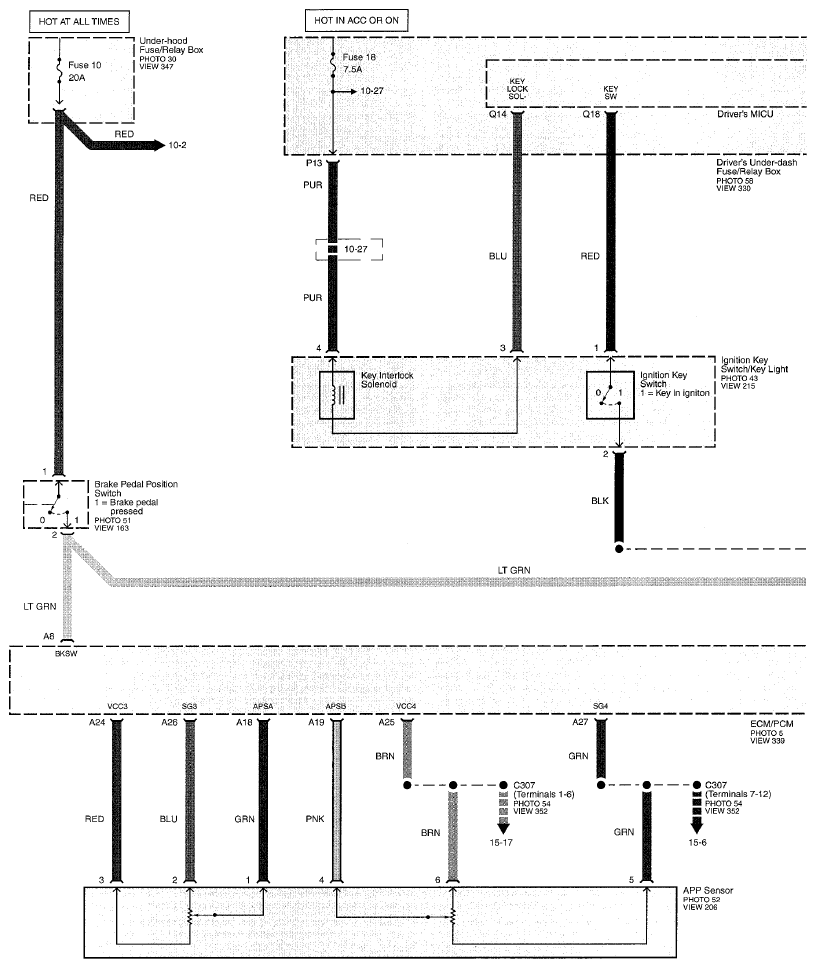

Fig 1: Interlock System Circuit Diagram - A/T: Without Keyless Access (Page 138)

G07755433

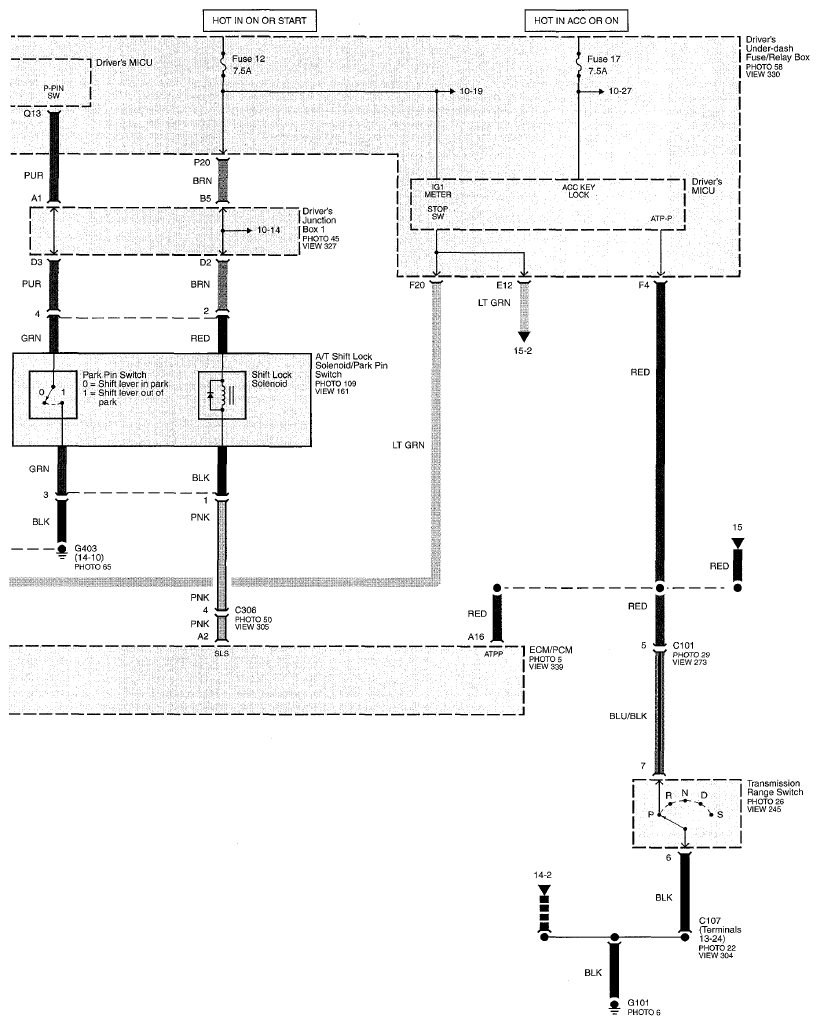

Fig 2: Interlock System Circuit Diagram - A/T: Without Keyless Access (Page 138-1)

G07755434
