B-CAN Communication Line (Low)

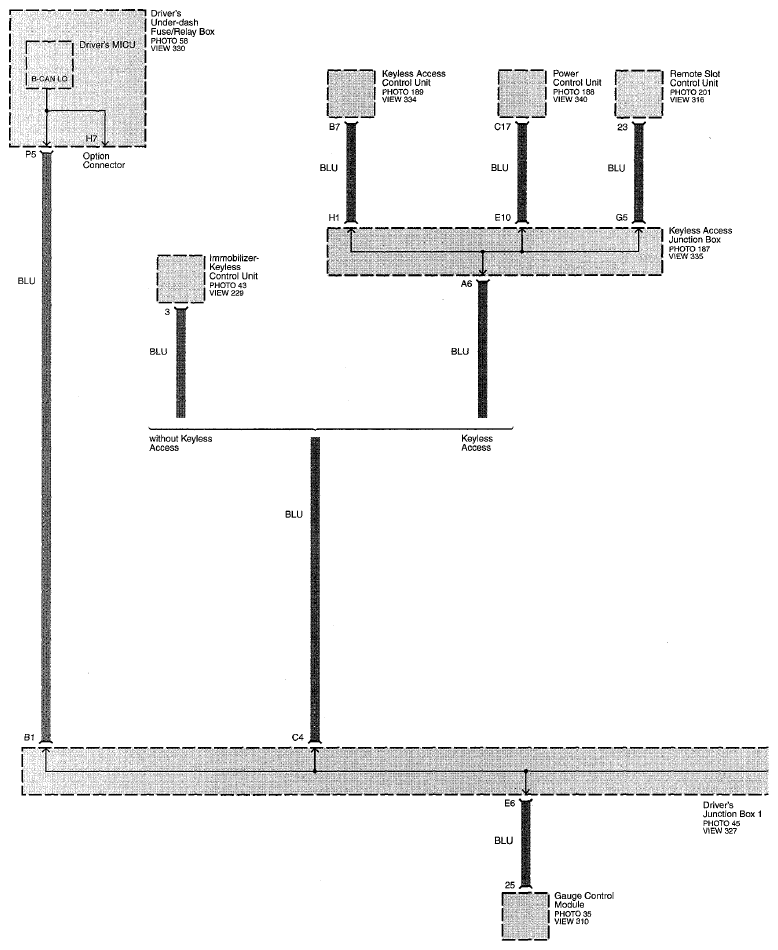

Fig 1: Multiplex Integrated Control System Circuit Diagram - B-CAN Communication Line (Low) (Page 50-4)
G07755317

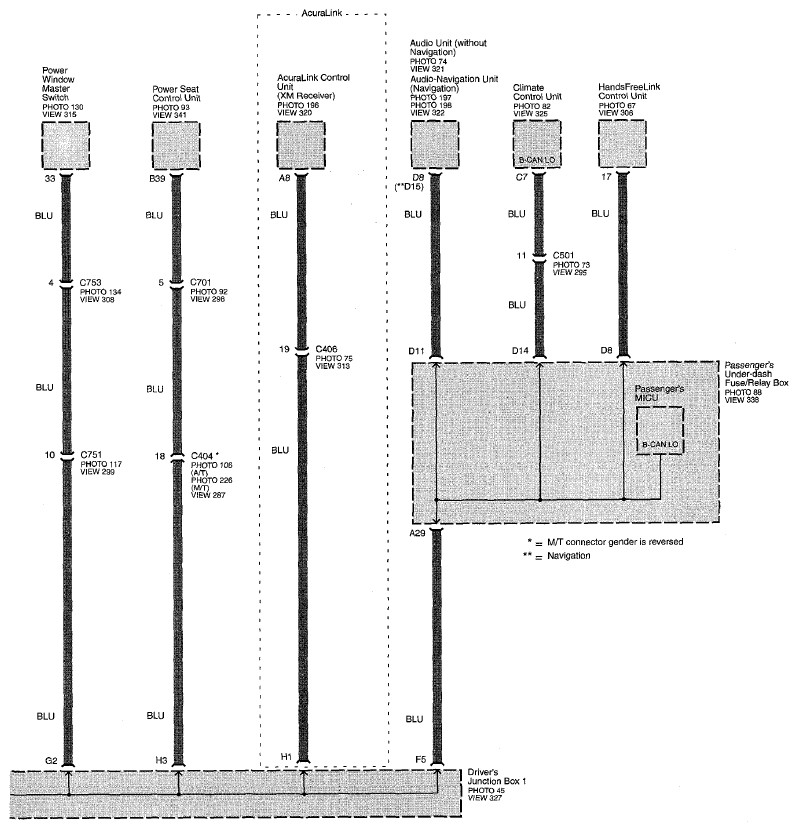

Fig 2: Multiplex Integrated Control System Circuit Diagram - B-CAN Communication Line (Low) (Page 50-5)
G07755318
