Acura
›
2011
›
TL Base
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Circuit Diagrams
›
Multiplex Integrated Control System
›
GA-NET Audio (without XM Radio)
GA-NET Audio (without XM Radio)

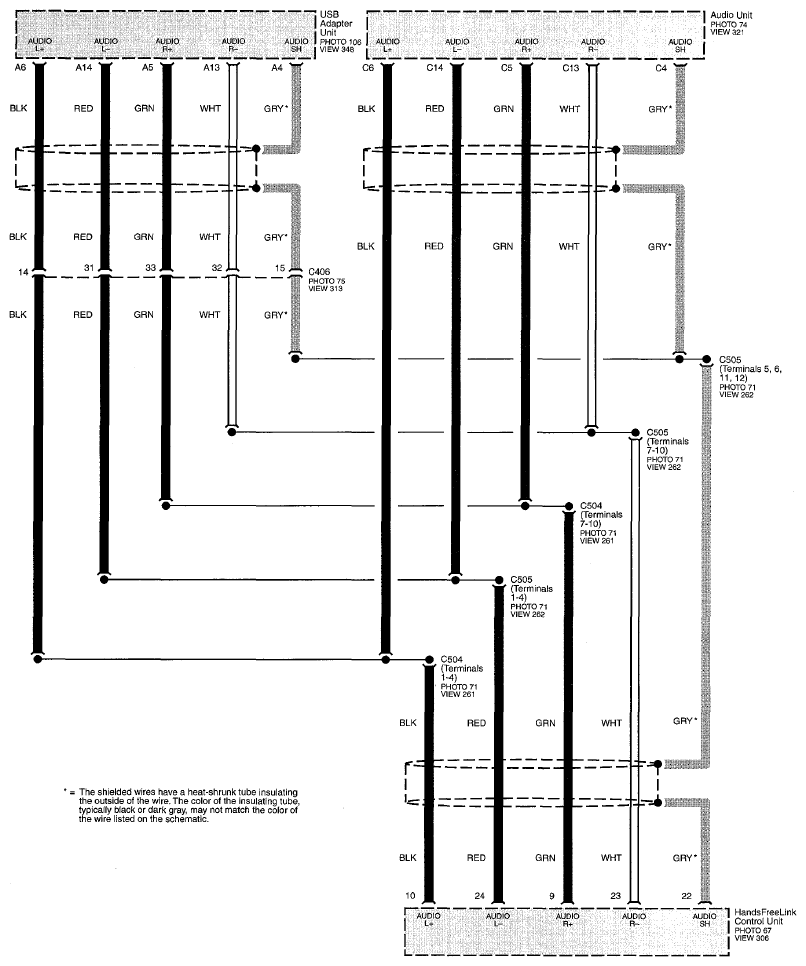

Fig 1: Multiplex Integrated Control System Circuit Diagram - GA-NET Audio (Without XM Radio) (Page 50-16)
