OEM Circuit Diagrams
›
Multiplex Integrated Control System
›
GA-NET Bus (Navigation with AcuraLink)
GA-NET Bus (Navigation with AcuraLink)

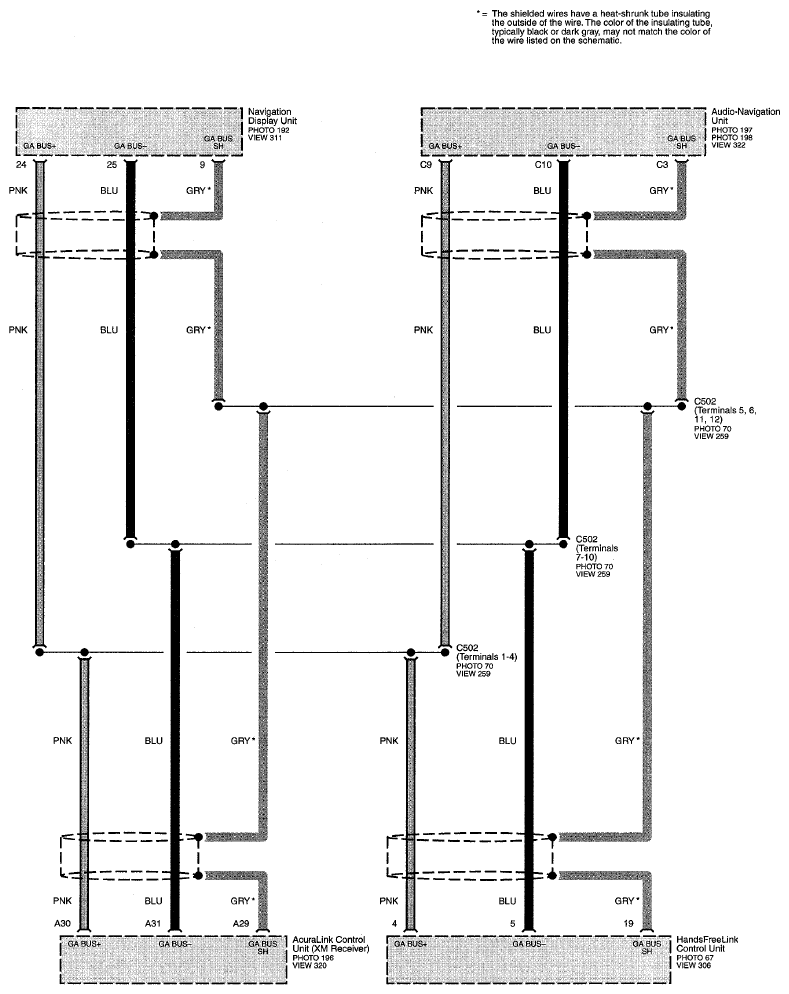

Fig 1: Multiplex Integrated Control System Circuit Diagram - GA-NET Bus (Navigation With AcuraLink) (Page 50-15)
