OEM Circuit Diagrams
›
Multiplex Integrated Control System
›
GA-NET Bus (Navigation with XM Radio)
GA-NET Bus (Navigation with XM Radio)

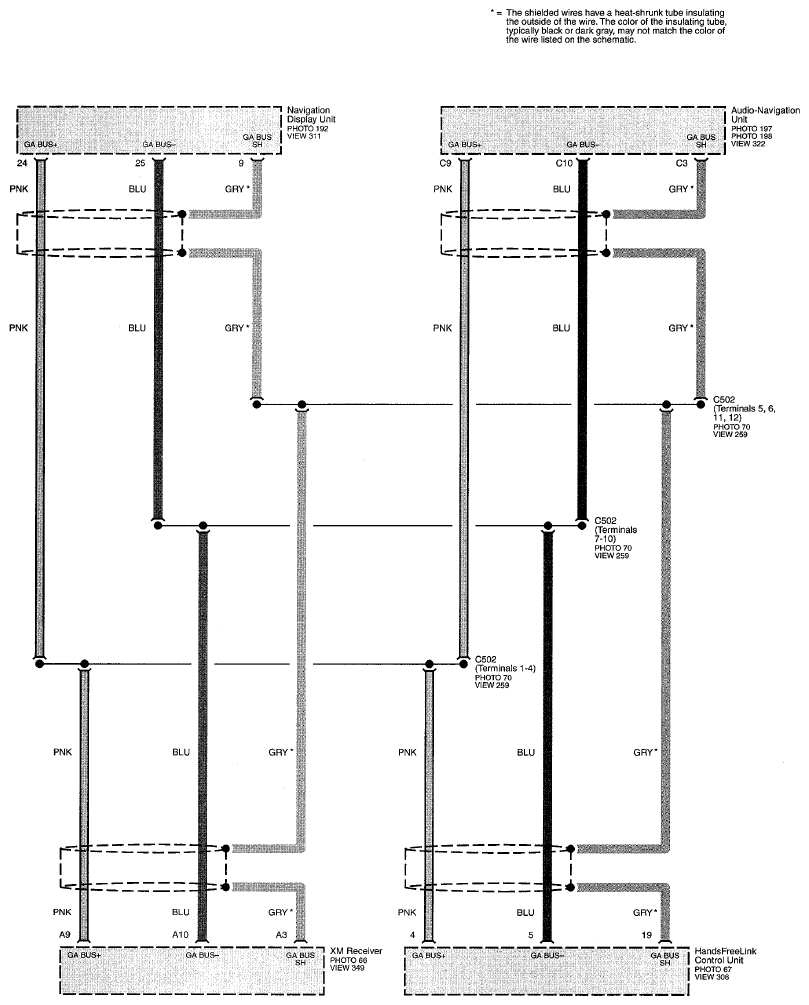

Fig 1: Multiplex Integrated Control System Circuit Diagram - GA-NET Bus (Navigation With XM Radio) (Page 50-14)
