Body Electrical
›
OEM Circuit Diagrams
›
Multiplex Integrated Control System
›
GA-NET Bus (XM Radio without Navigation)
GA-NET Bus (XM Radio without Navigation)

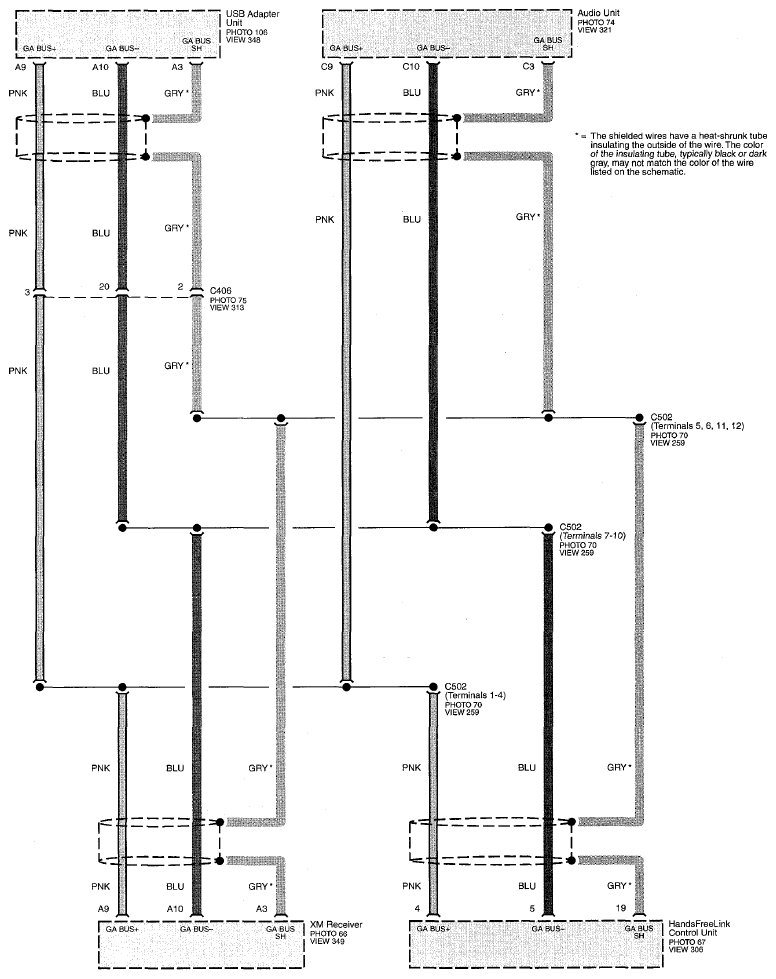

Fig 1: Multiplex Integrated Control System Circuit Diagram - GA-NET Bus (XM Radio Without Navigation) (Page 50-13)
