OEM Circuit Diagrams
›
Multiplex Integrated Control System
›
GA-NET Bus (without XM Radio)
GA-NET Bus (without XM Radio)

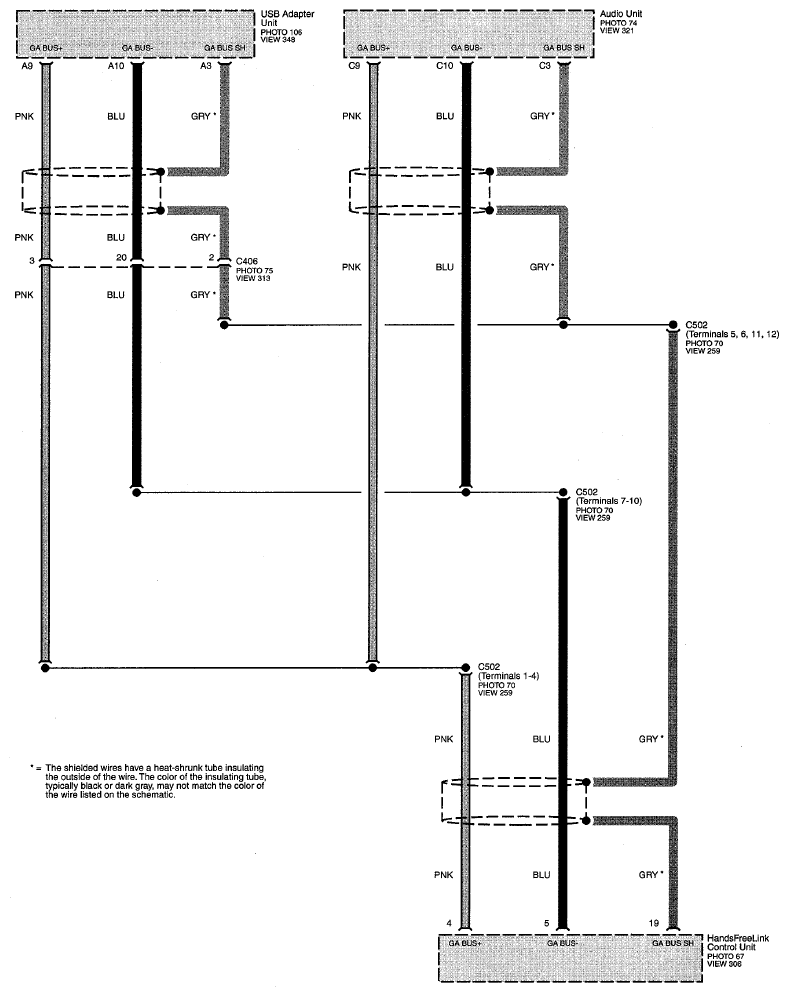

Fig 1: Multiplex Integrated Control System Circuit Diagram - GA-NET Bus (Without XM Radio) (Page 50-12)
