Multiplex Integrated Control System
›
K-line Communication Line
K-line Communication Line

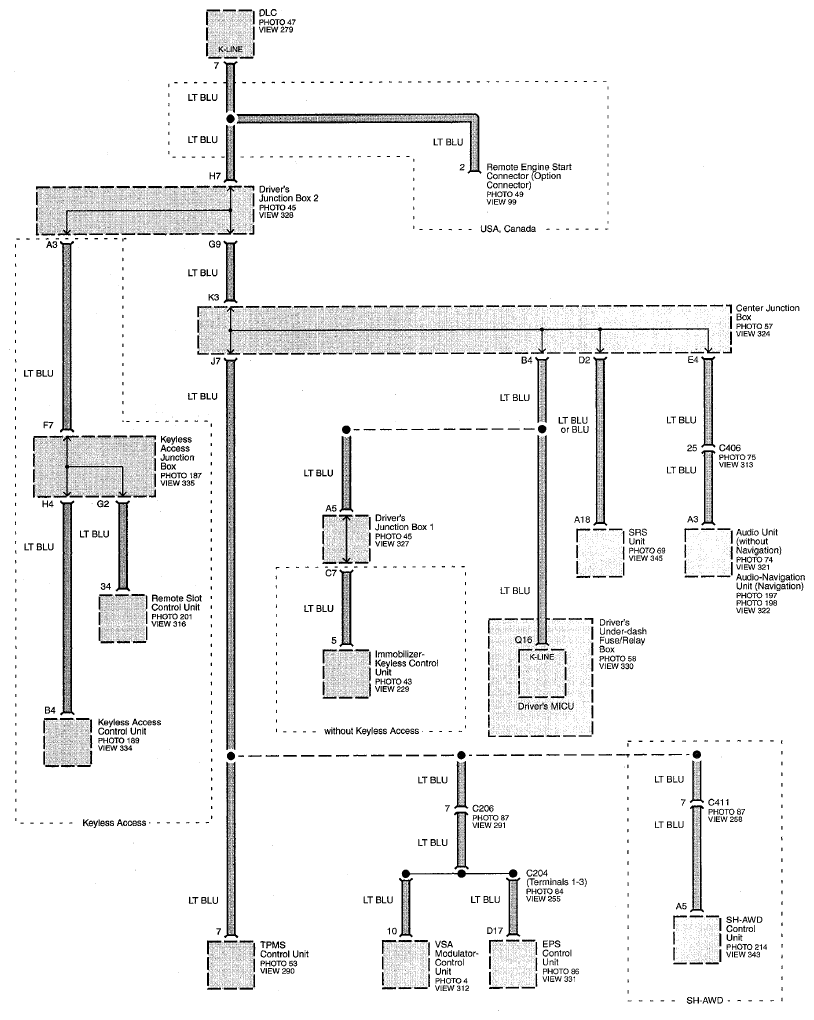

Fig 1: Multiplex Integrated Control System Circuit Diagram - K-line Communication Line (Page 50-10)
