Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Circuit Diagrams
›
Navigation System
›
System Diagram
System Diagram

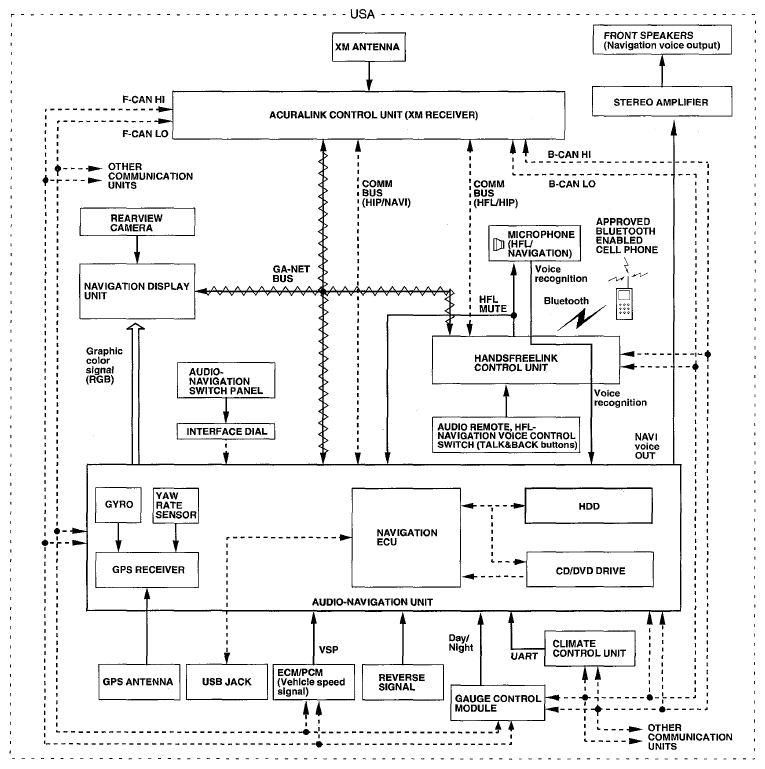

Fig 1: Navigation System Diagram (Page 156-15)

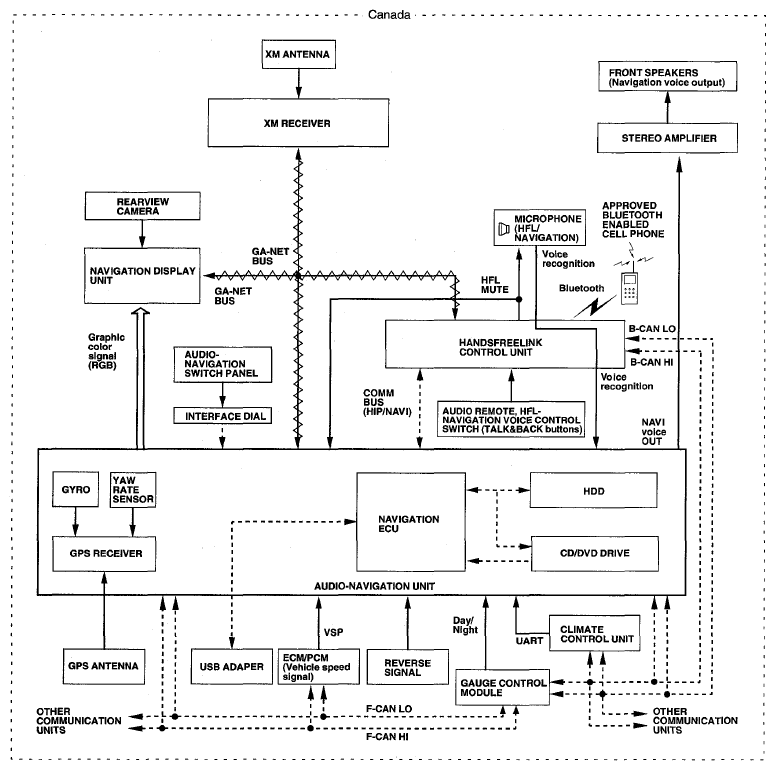

Fig 2: Navigation System Diagram (Page 156-16)
