Keyless Access

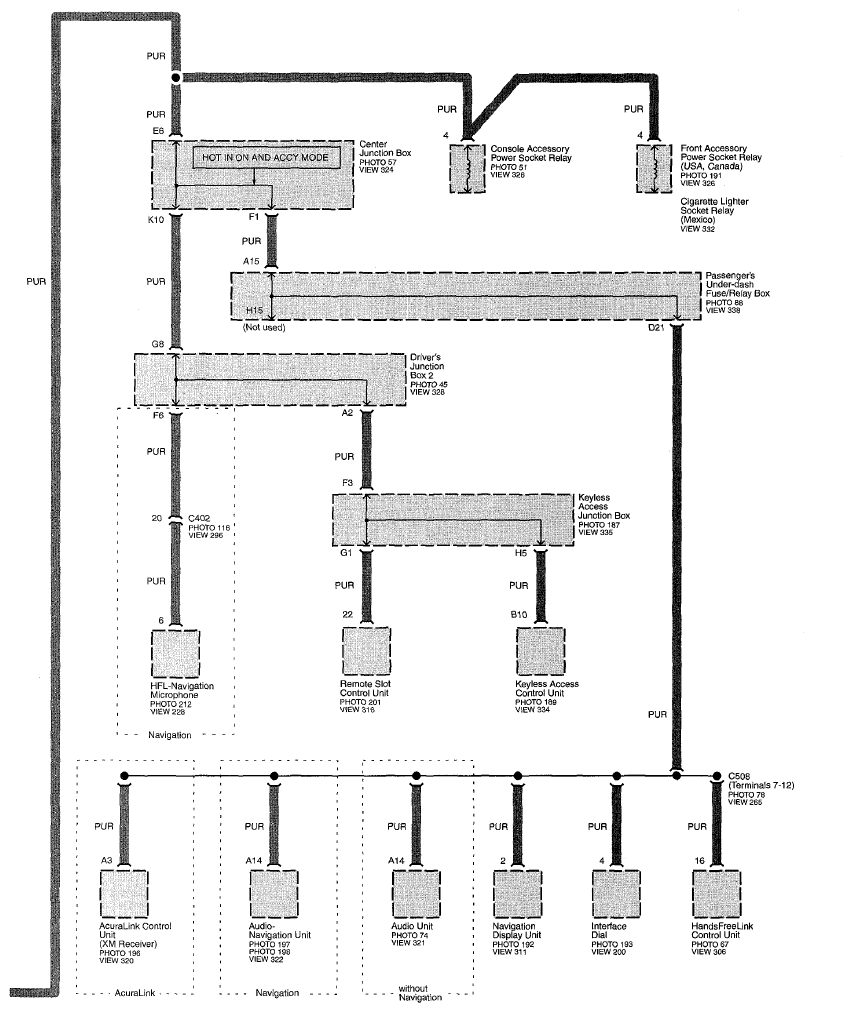

Fig 1: Power Distribution Circuit Diagram - Keyless Access (Page 10-29)

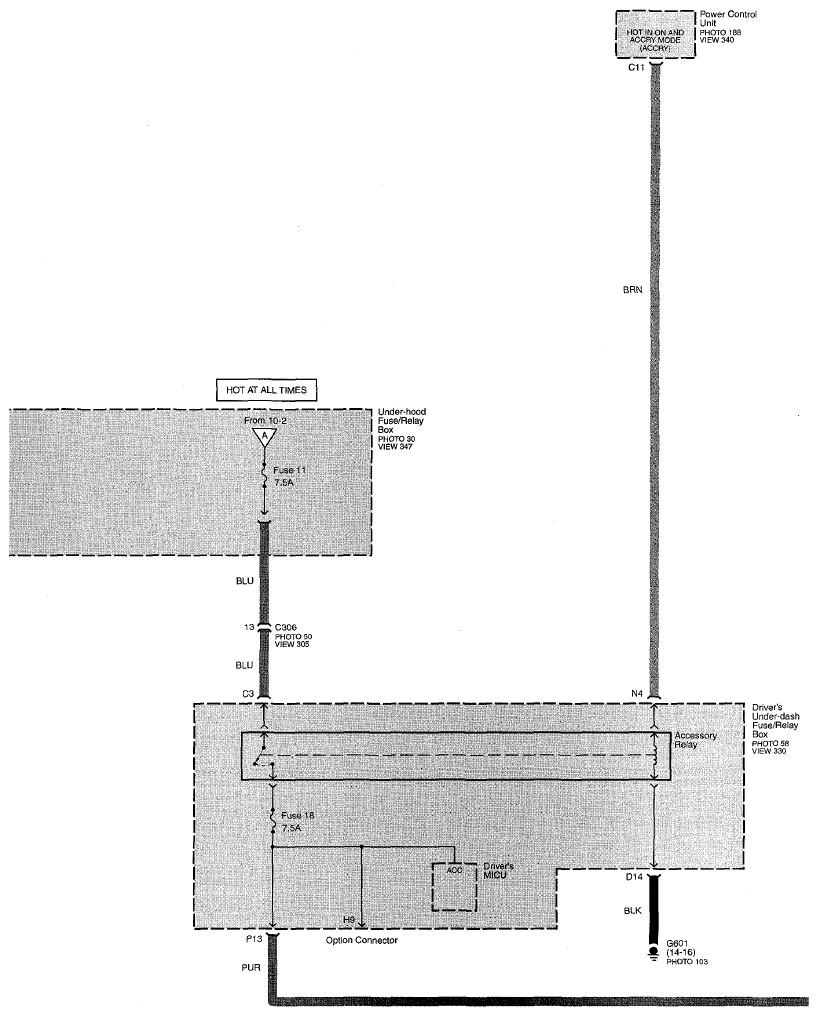

Fig 2: Power Distribution Circuit Diagram - Keyless Access (Page 10-30)

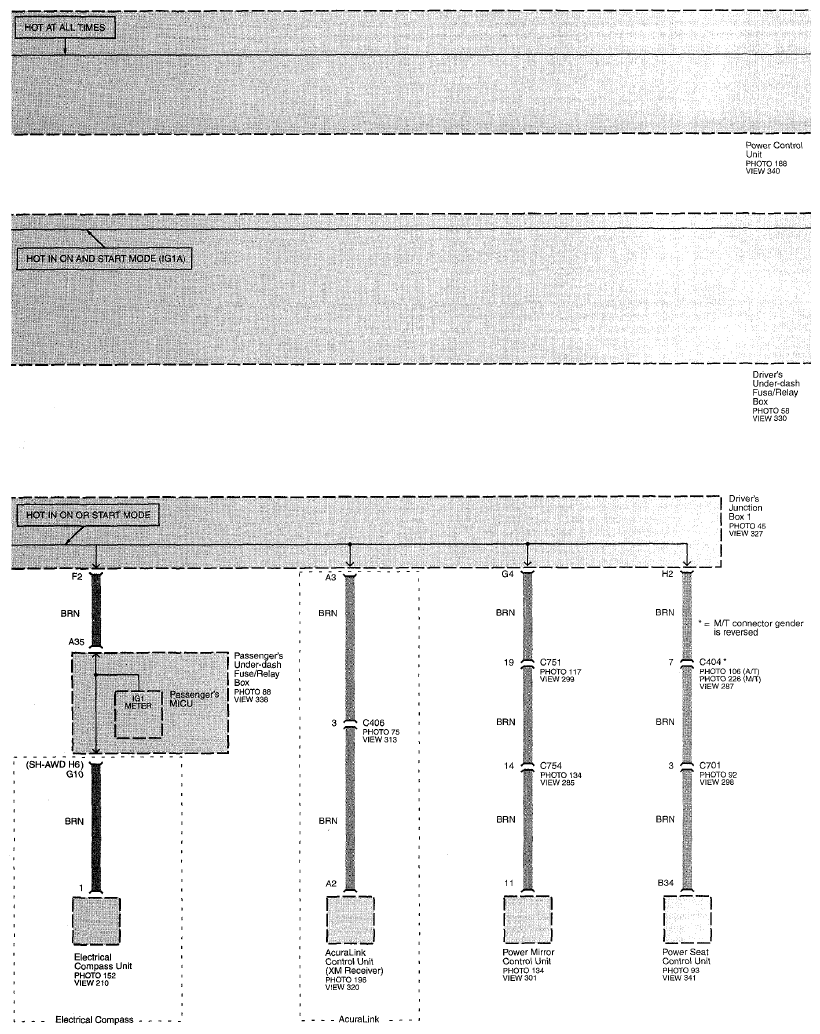

Fig 3: Power Distribution Circuit Diagram - Keyless Access (Page 10-31)

Fig 4: Power Distribution Circuit Diagram - Keyless Access (Page 10-32)

Fig 5: Power Distribution Circuit Diagram - Keyless Access (Page 10-33)

Fig 6: Power Distribution Circuit Diagram - Keyless Access (Page 10-34)

Fig 7: Power Distribution Circuit Diagram - Keyless Access (Page 10-35)

Fig 8: Power Distribution Circuit Diagram - Keyless Access (Page 10-36)

Fig 9: Power Distribution Circuit Diagram - Keyless Access (Page 10-37)

Fig 10: Power Distribution Circuit Diagram - Keyless Access (Page 10-38)

Fig 11: Power Distribution Circuit Diagram - Keyless Access (Page 10-39)
