Without Keyless Access

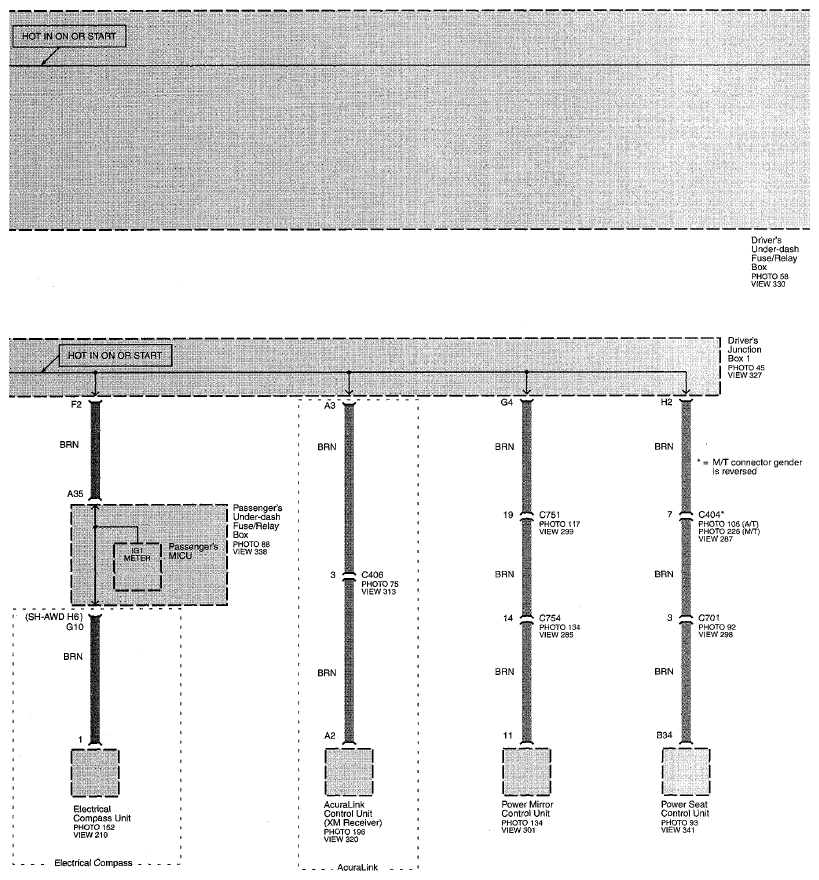

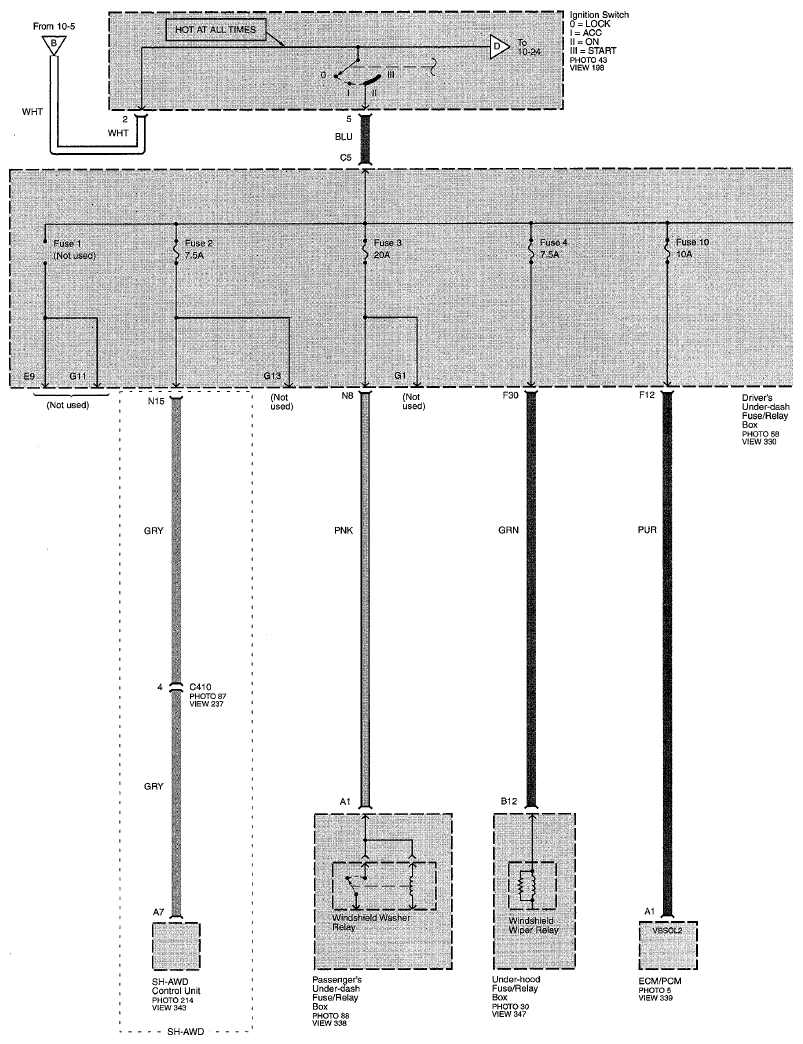

Fig 1: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-18)

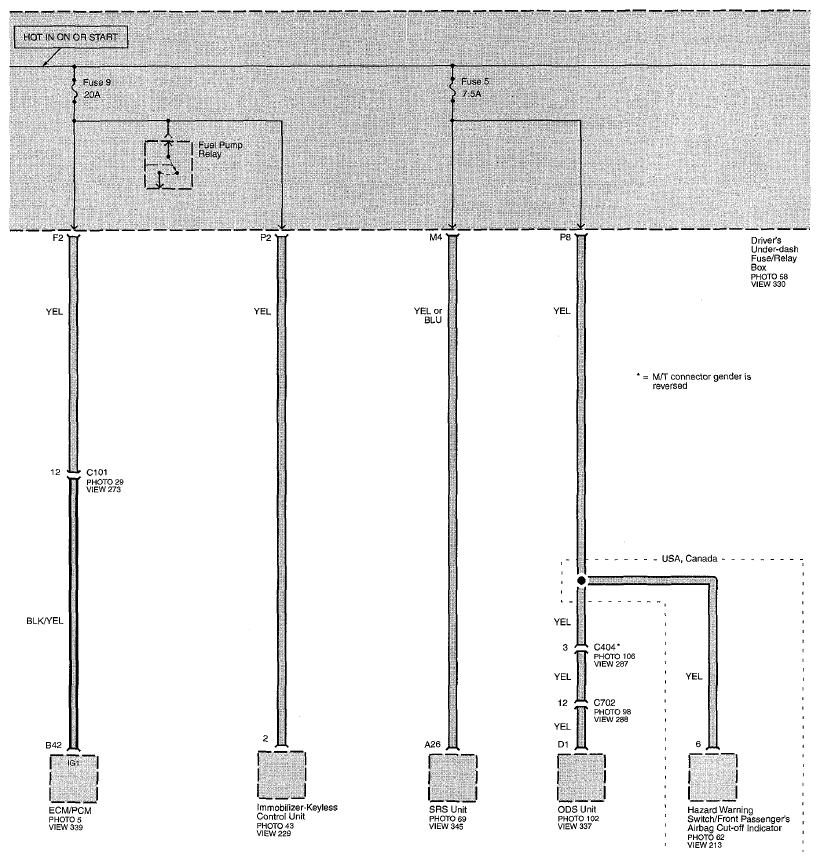

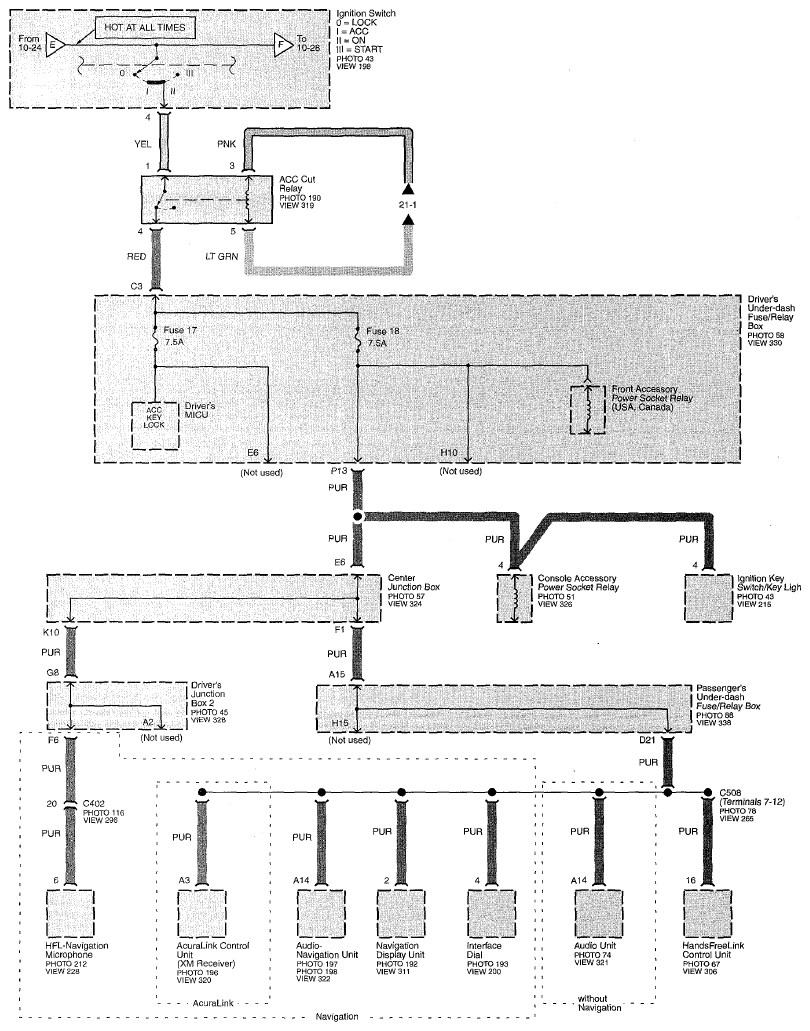

Fig 2: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-19)

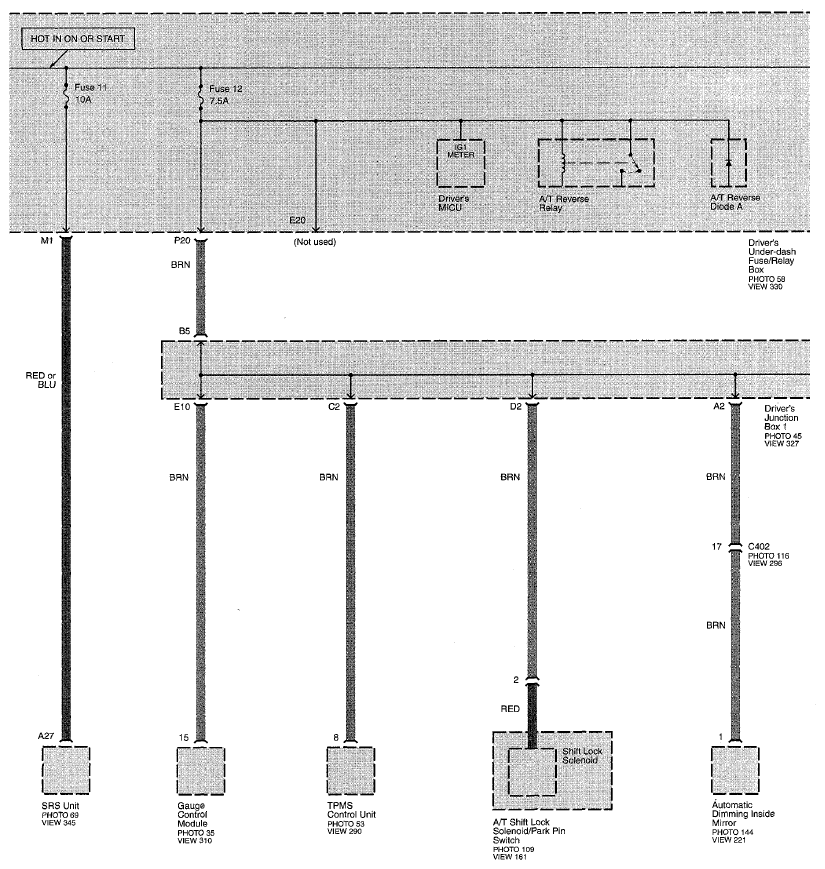

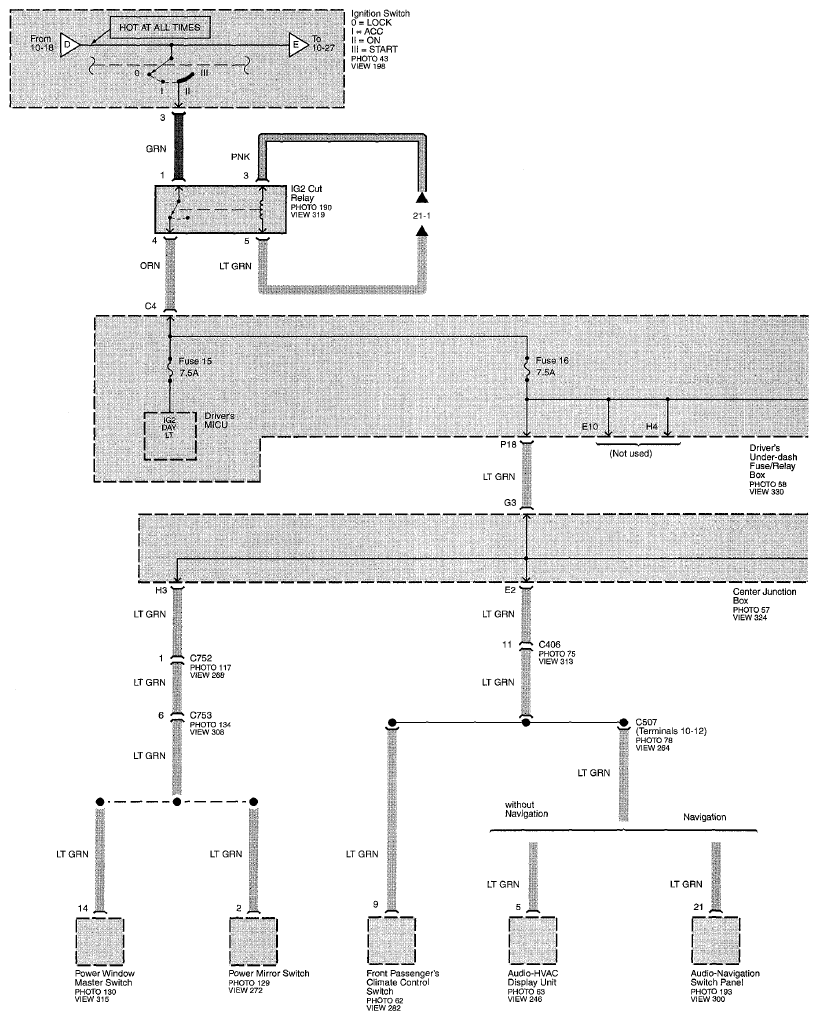

Fig 3: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-20)

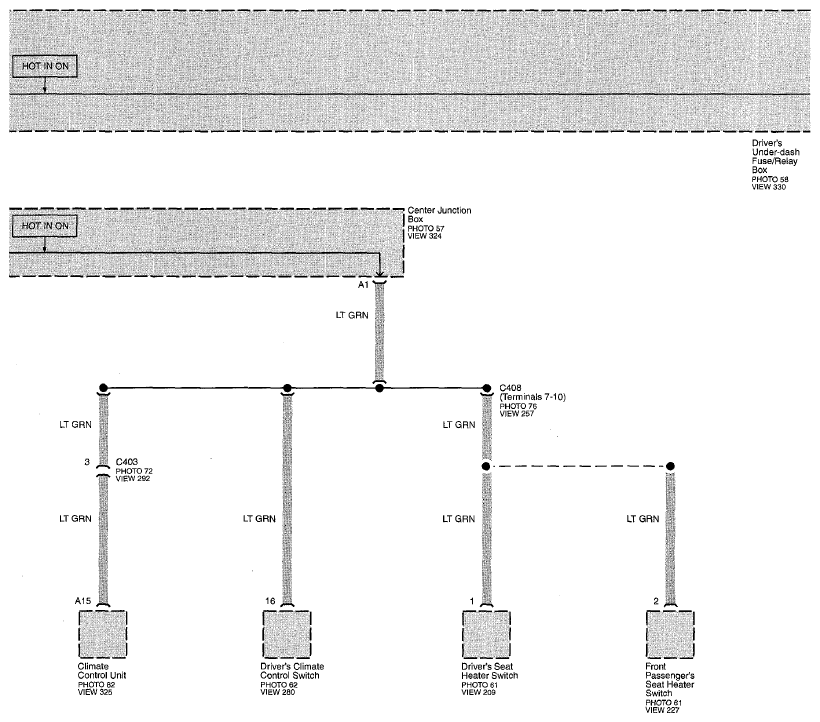

Fig 4: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-21)

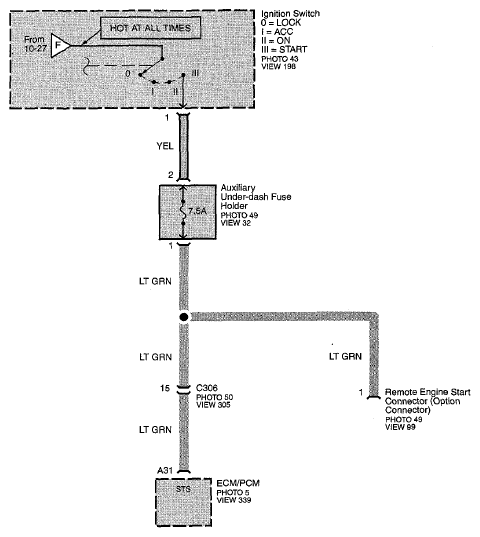

Fig 5: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-22)

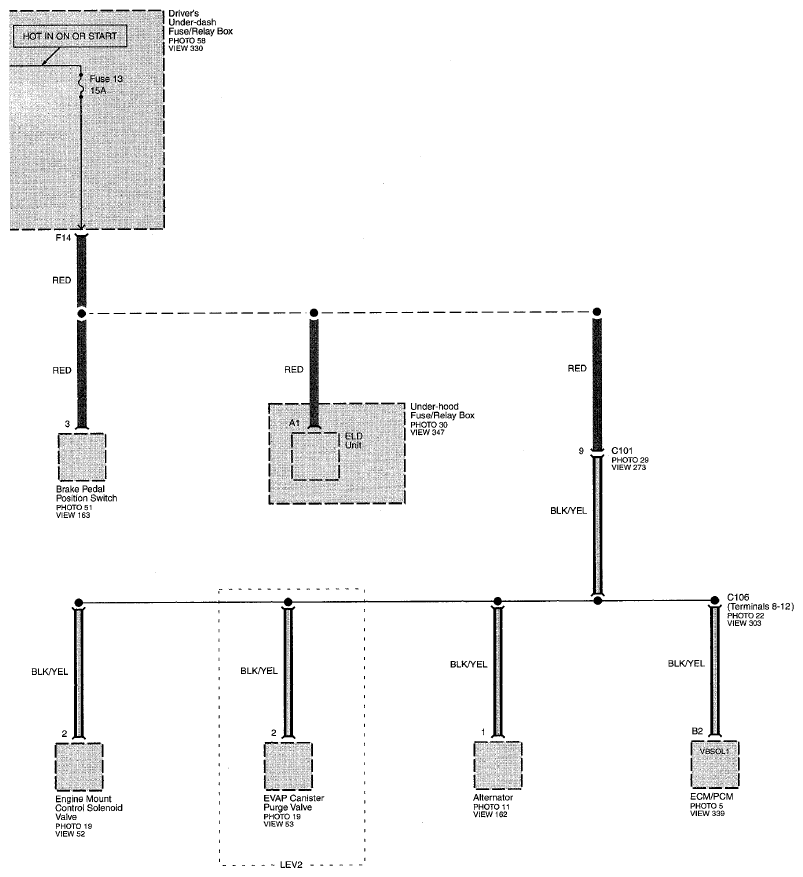

Fig 6: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-23)

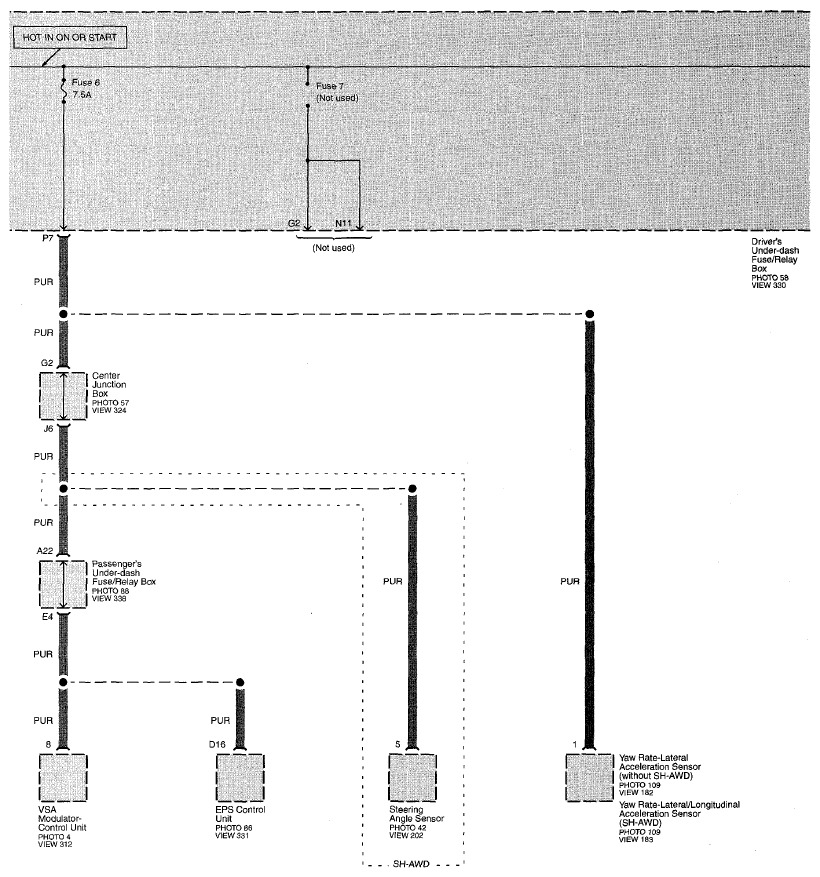

Fig 7: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-24)

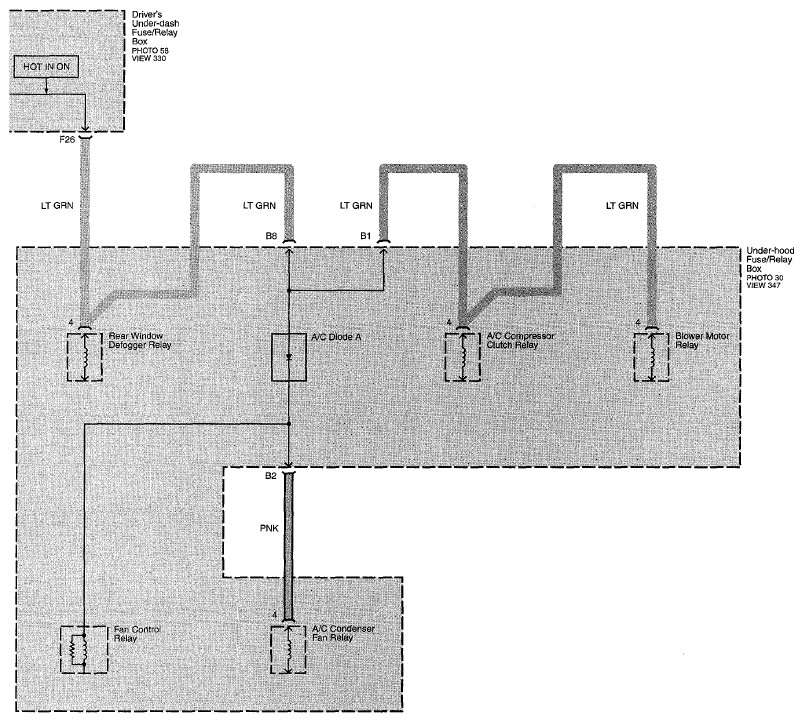

Fig 8: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-25)

Fig 9: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-26)

Fig 10: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-27)

Fig 11: Power Distribution Circuit Diagram - Without Keyless Access (Page 10-28)
