Power Windows: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

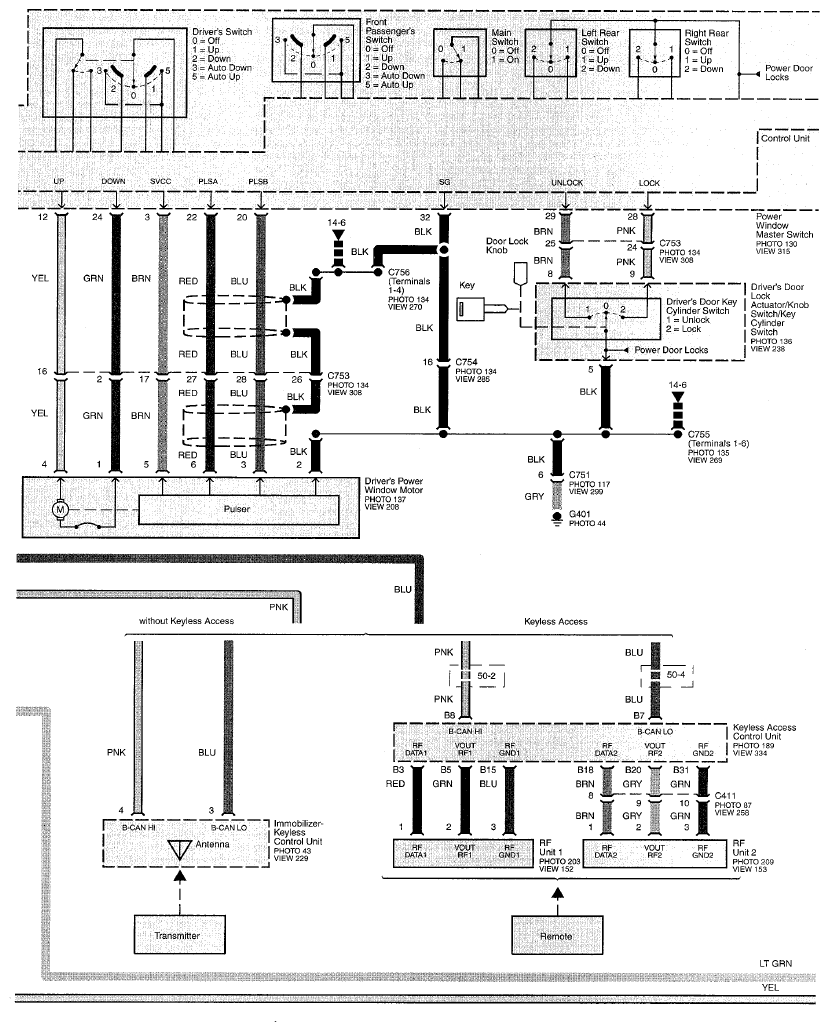

Fig 1: Power Windows Circuit Diagram (Page 120)

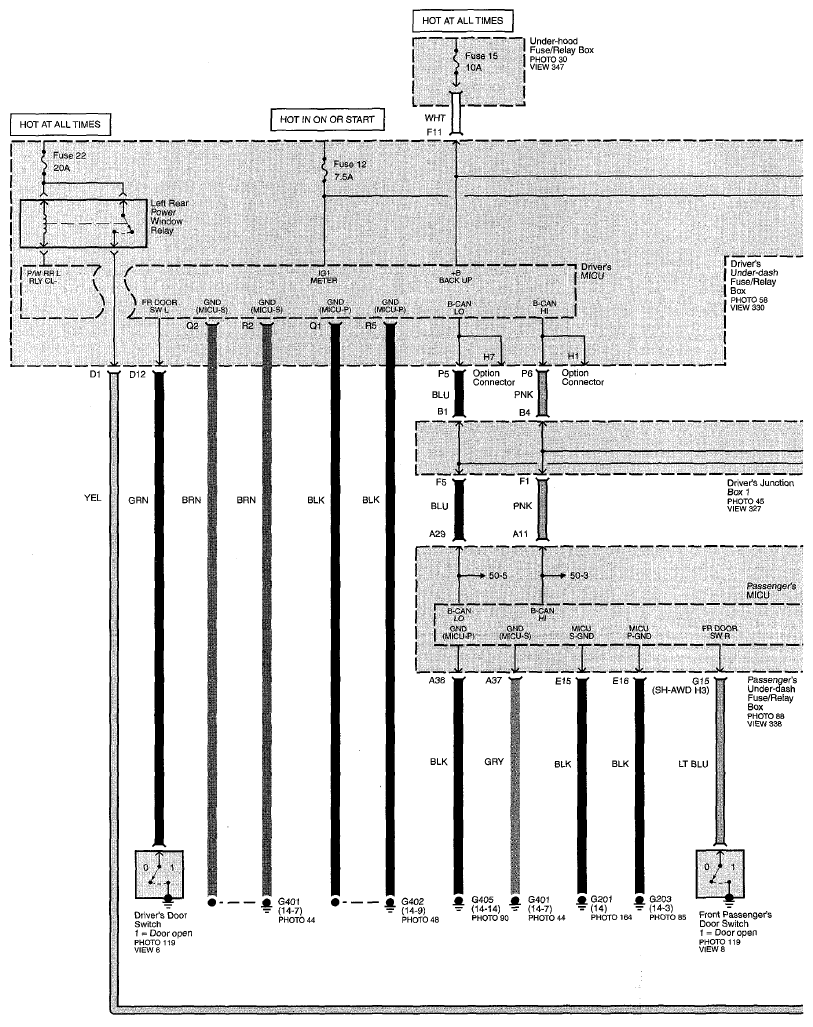

Fig 2: Power Windows Circuit Diagram (Page 120-1)

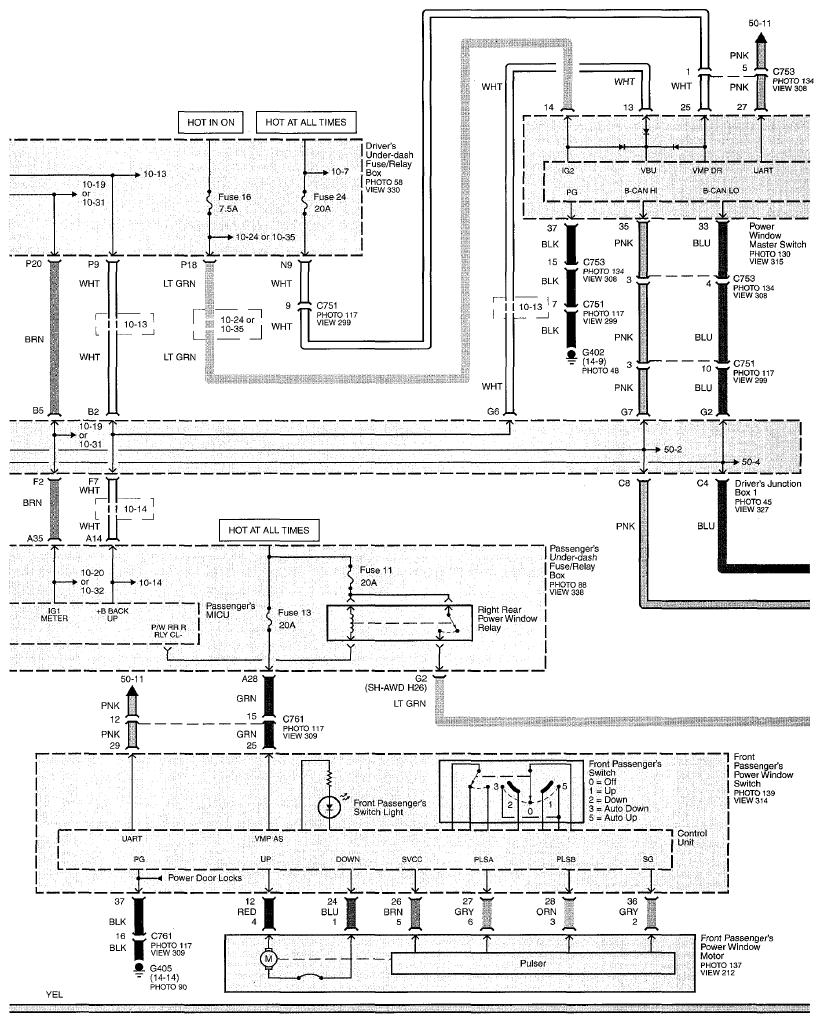

Fig 3: Power Windows Circuit Diagram (Page 120-2)

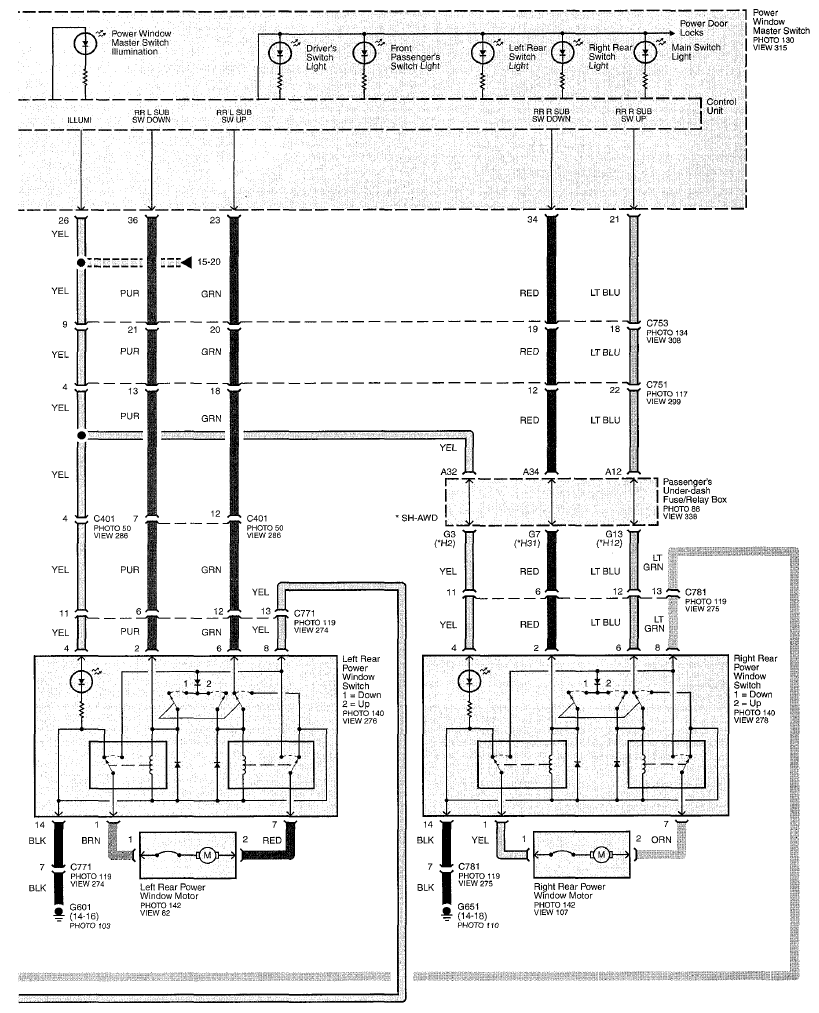

Fig 4: Power Windows Circuit Diagram (Page 120-3)
