Rear Window/Power Mirror Defoggers: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

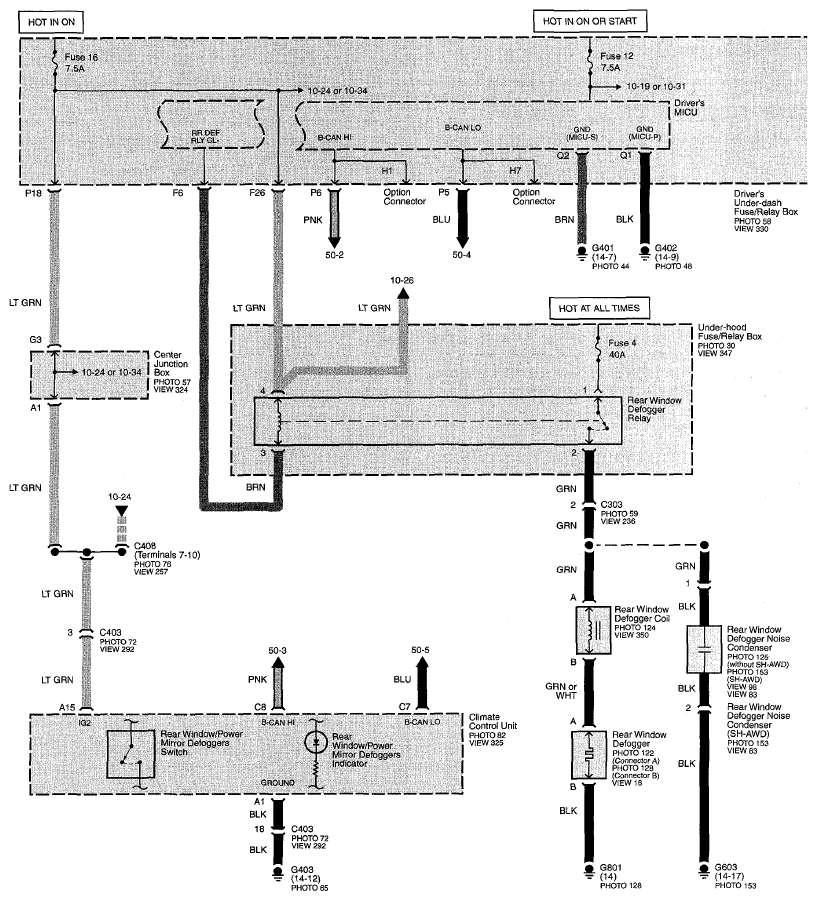

Fig 1: Rear Window/Power Mirror Defoggers Circuit Diagram (Page 64)

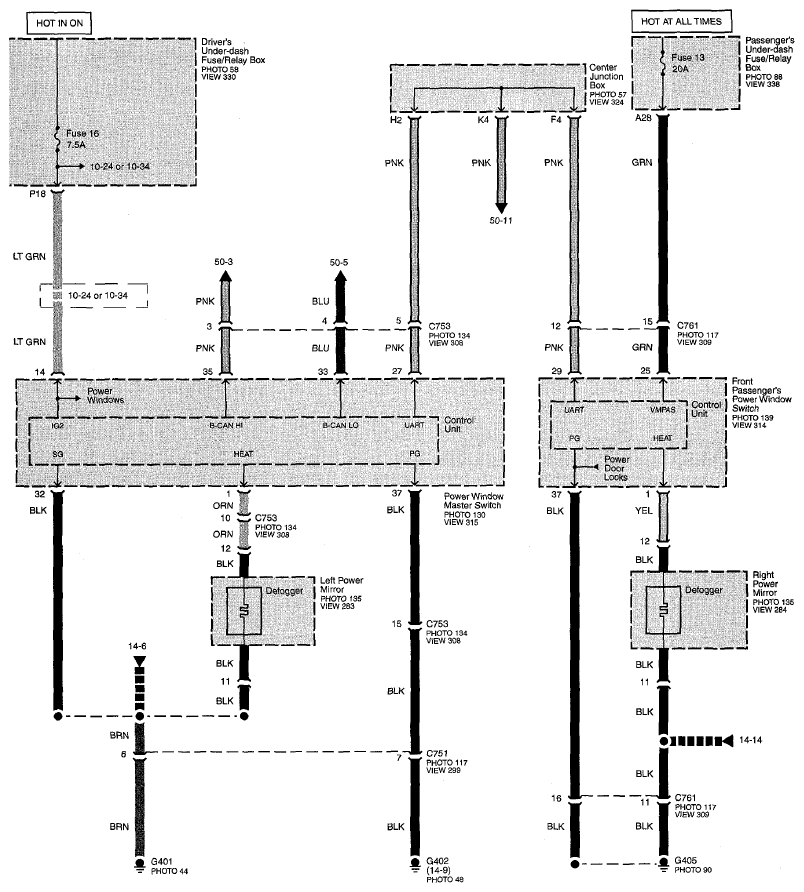

Fig 2: Rear Window/Power Mirror Defoggers Circuit Diagram (Page 64-1)
