A/T: Keyless Access

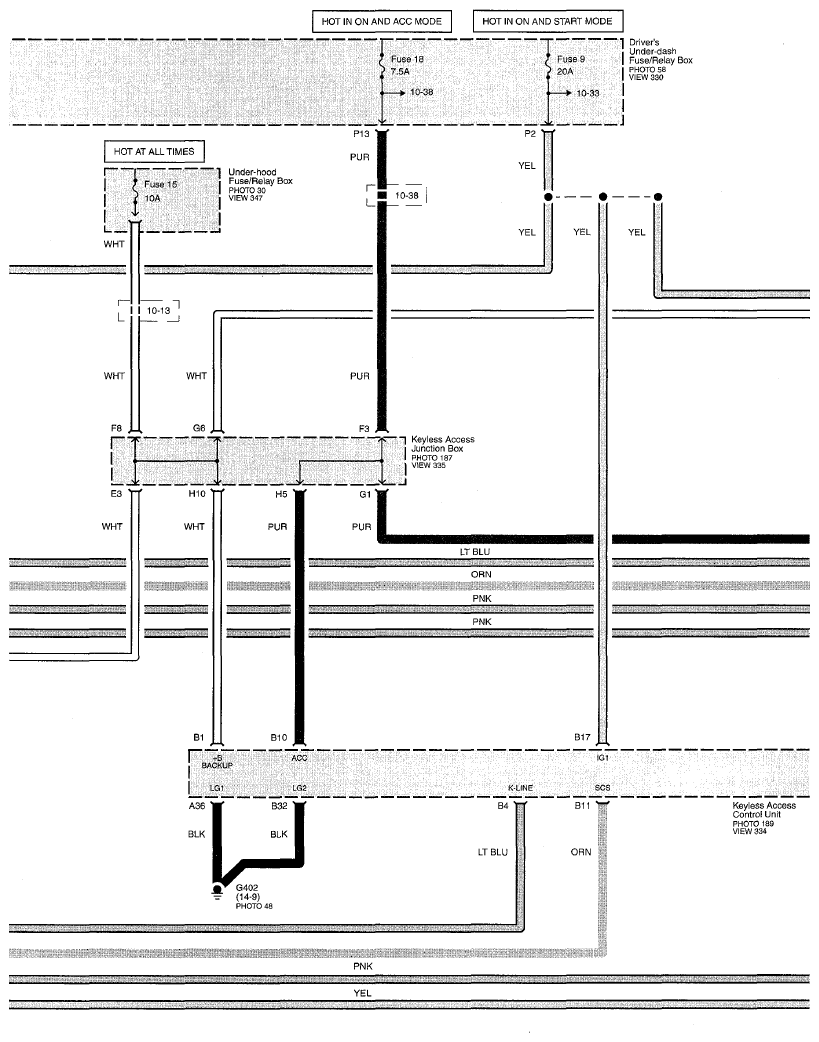

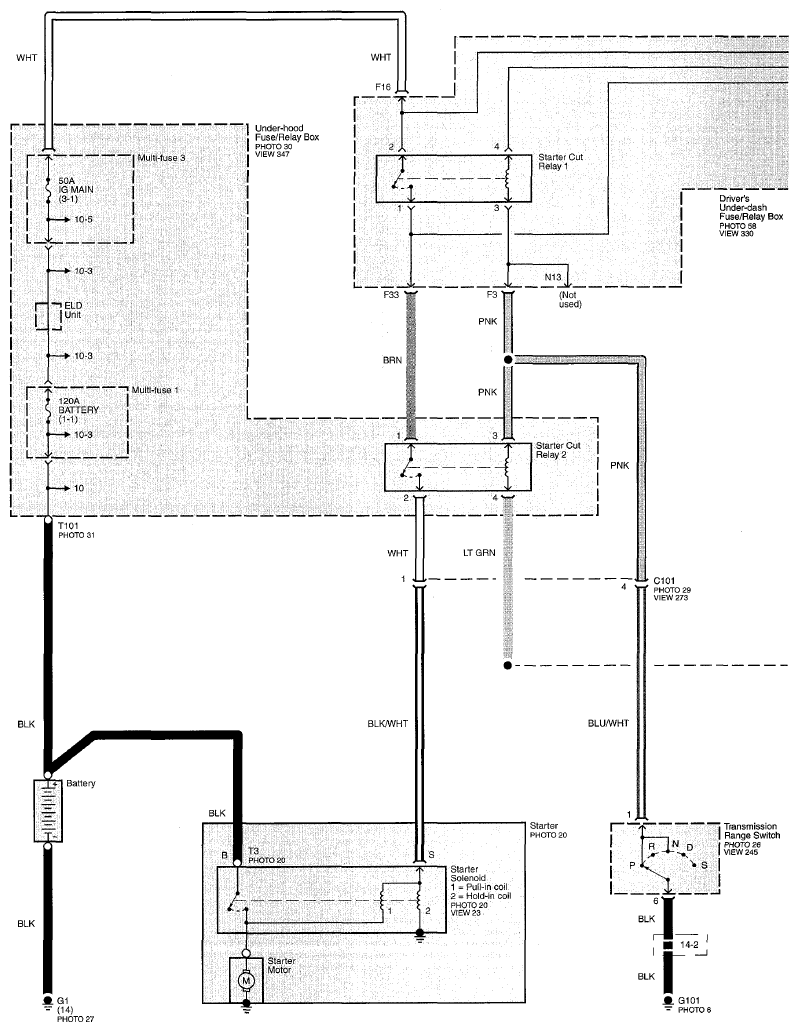

Fig 1: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-2)

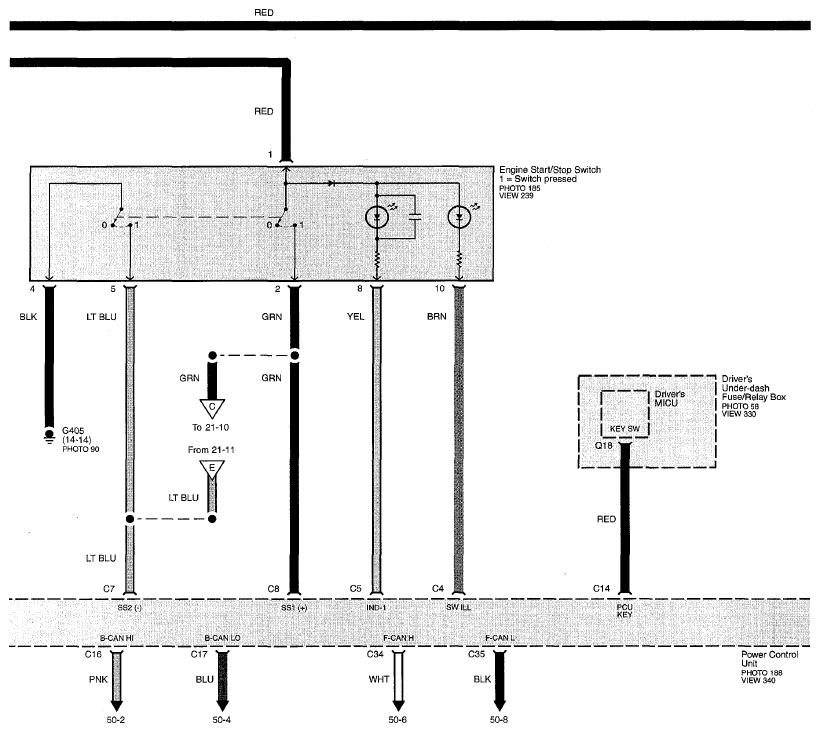

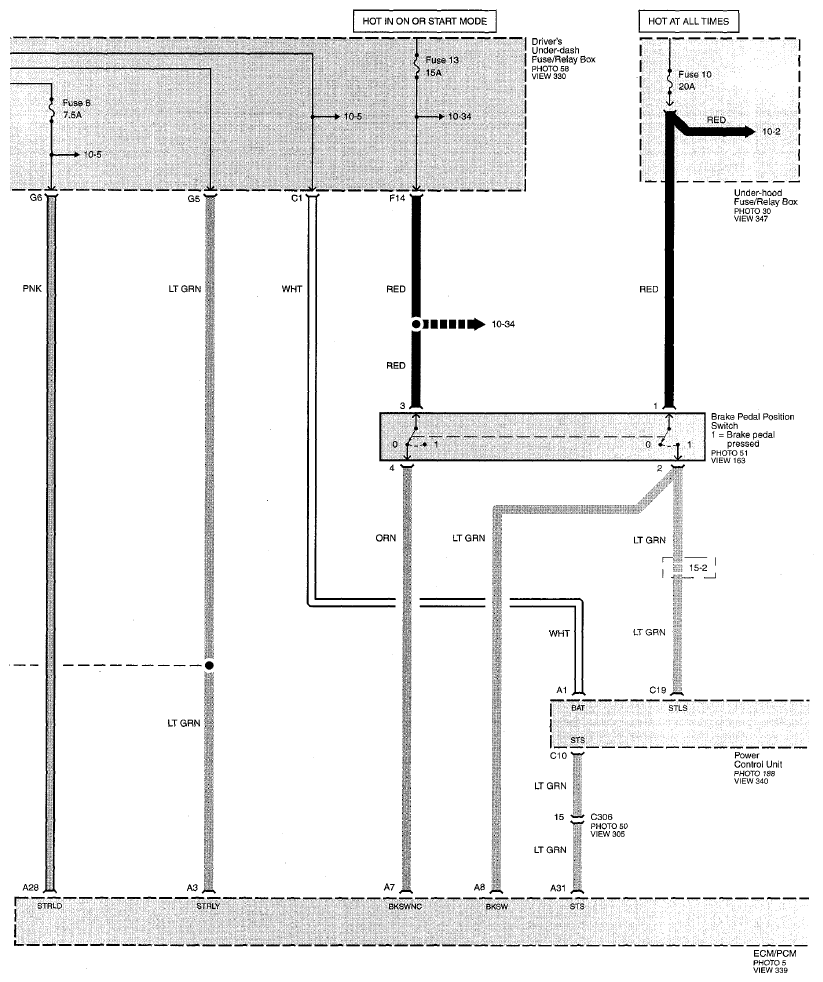

Fig 2: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-3)

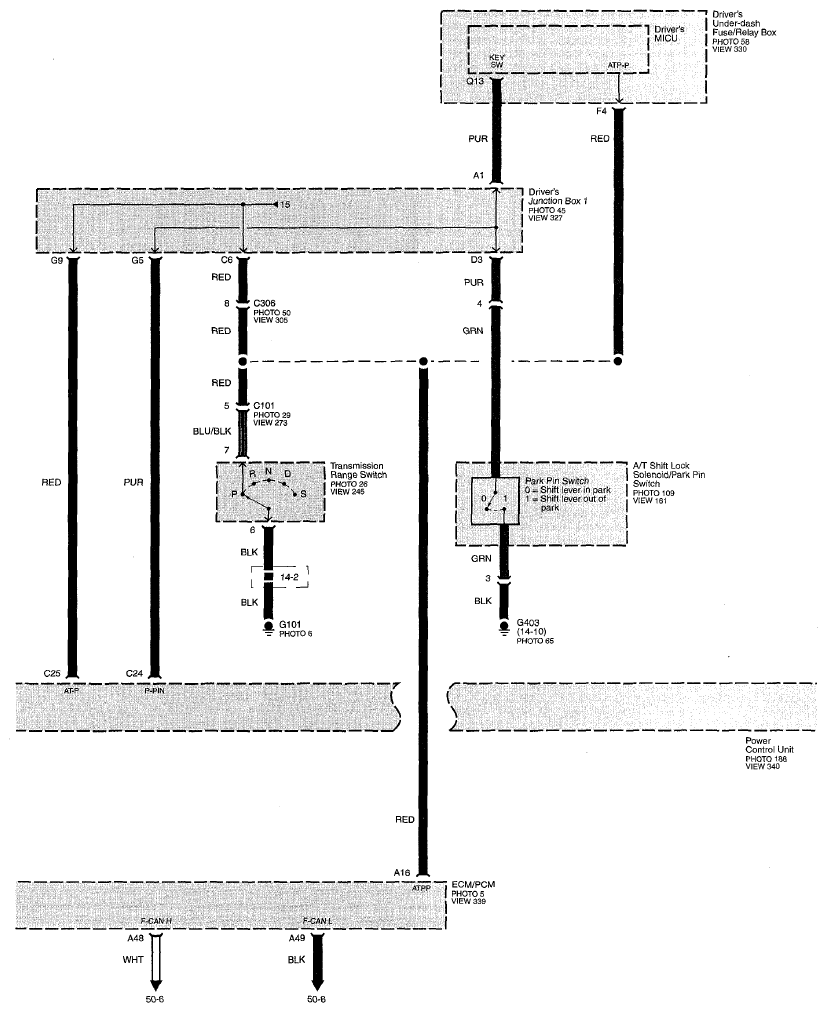

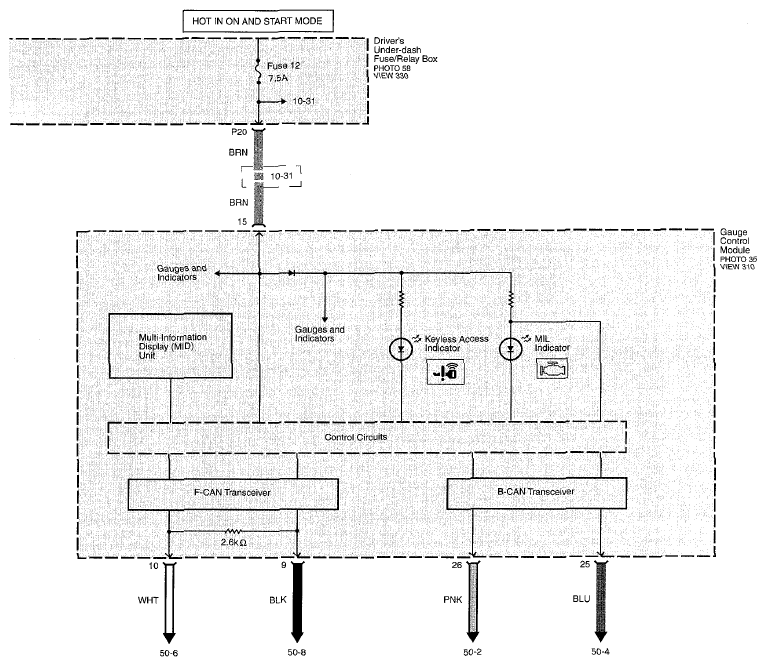

Fig 3: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-4)

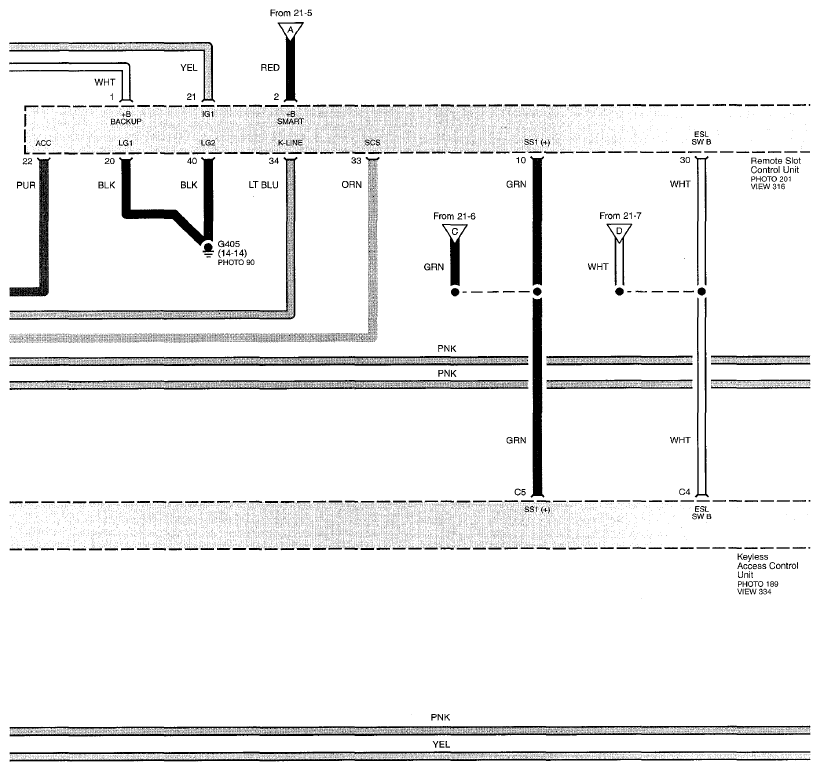

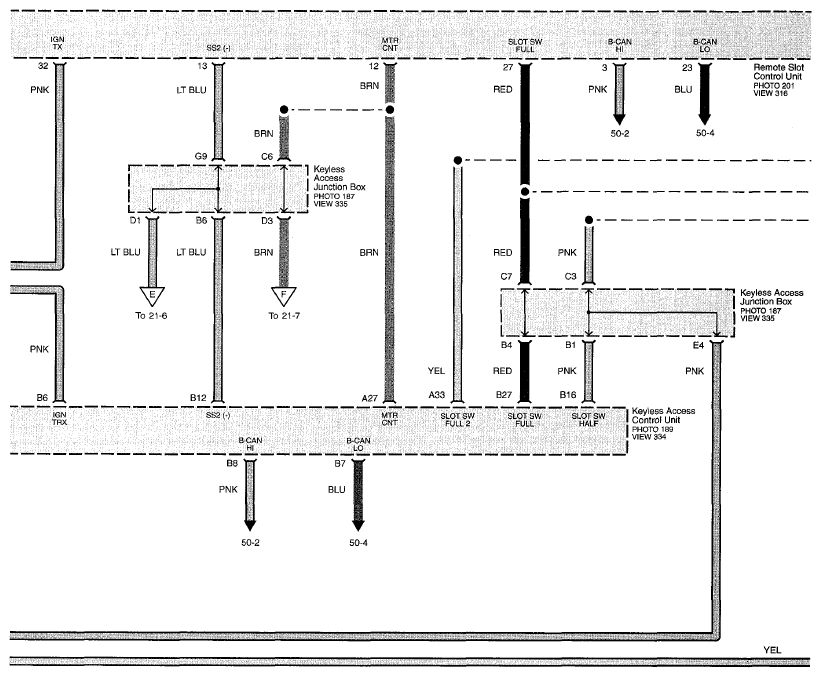

Fig 4: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-5)

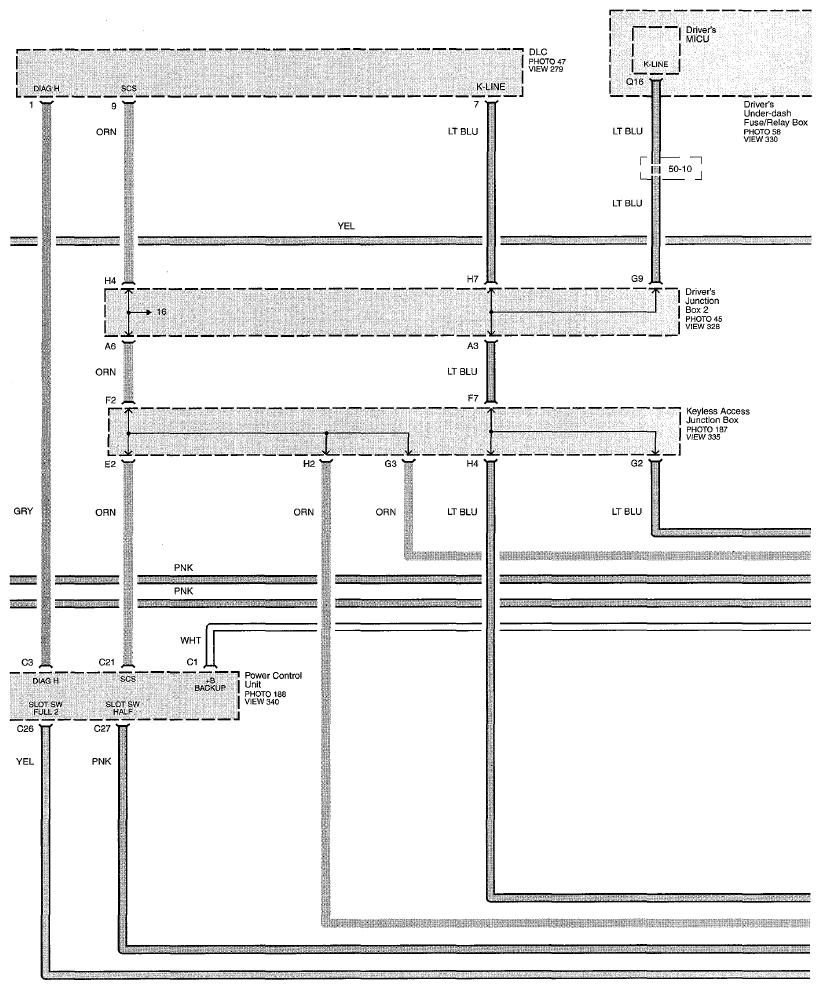

Fig 5: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-6)

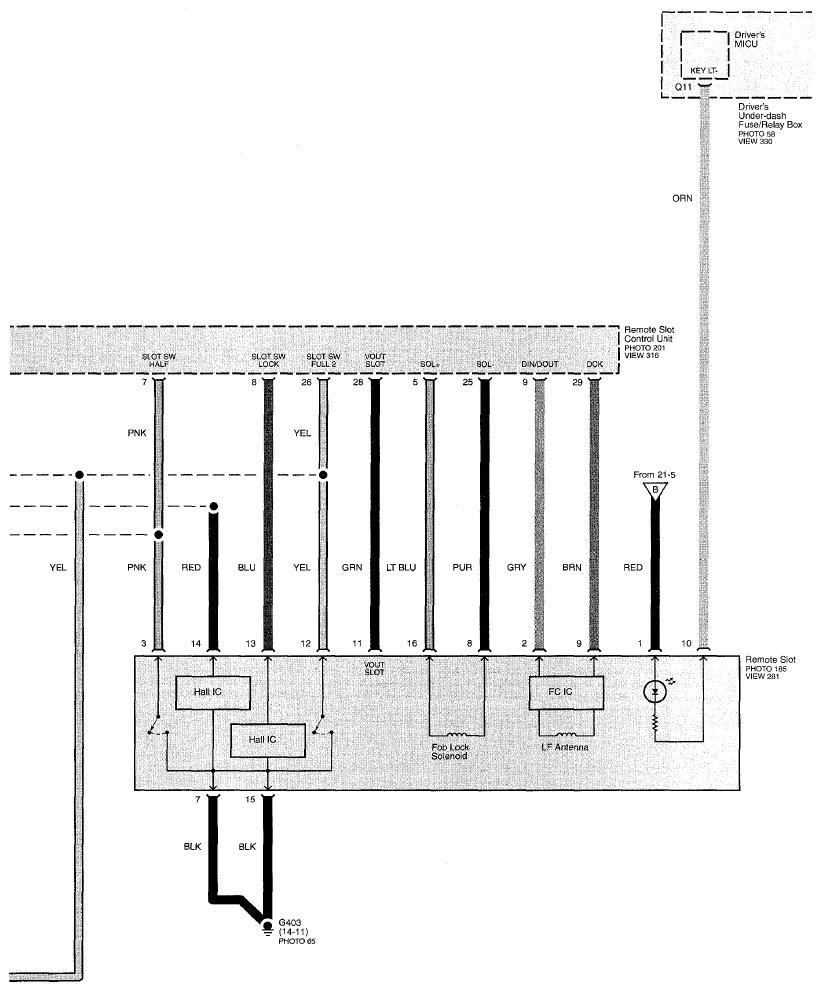

Fig 6: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-7)

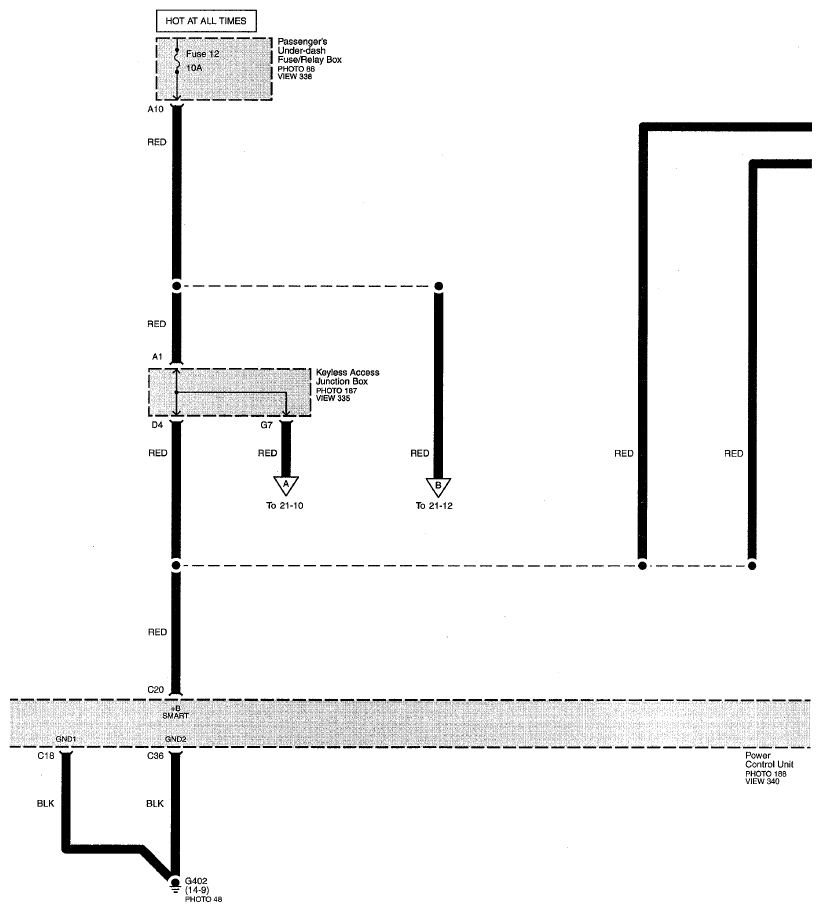

Fig 7: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-8)

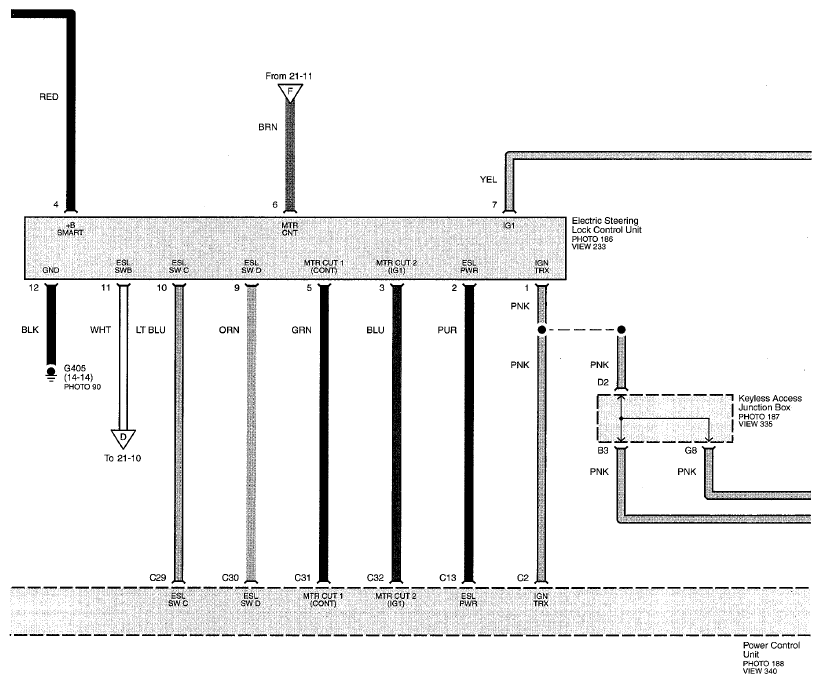

Fig 8: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-9)

Fig 9: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-10)

Fig 10: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-11)

Fig 11: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-12)

Fig 12: Starting System Circuit Diagram - A/T: Keyless Access (Page 21-13)
