Starting System
›
without Keyless Access
without Keyless Access

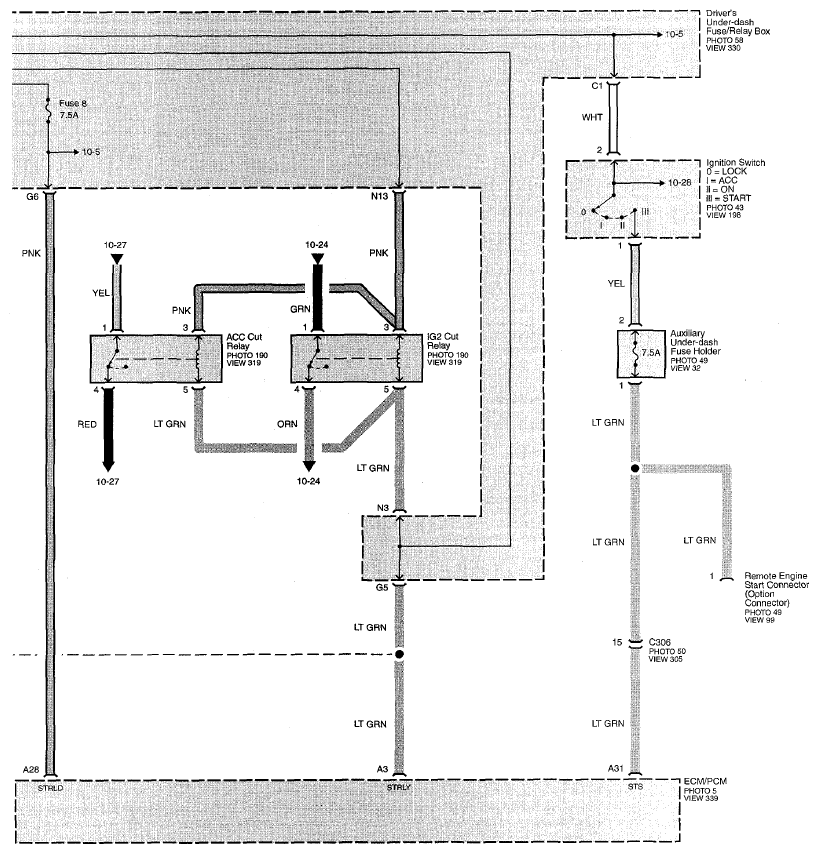

Fig 1: Starting System Circuit Diagram - Without Keyless Access (Page 21)

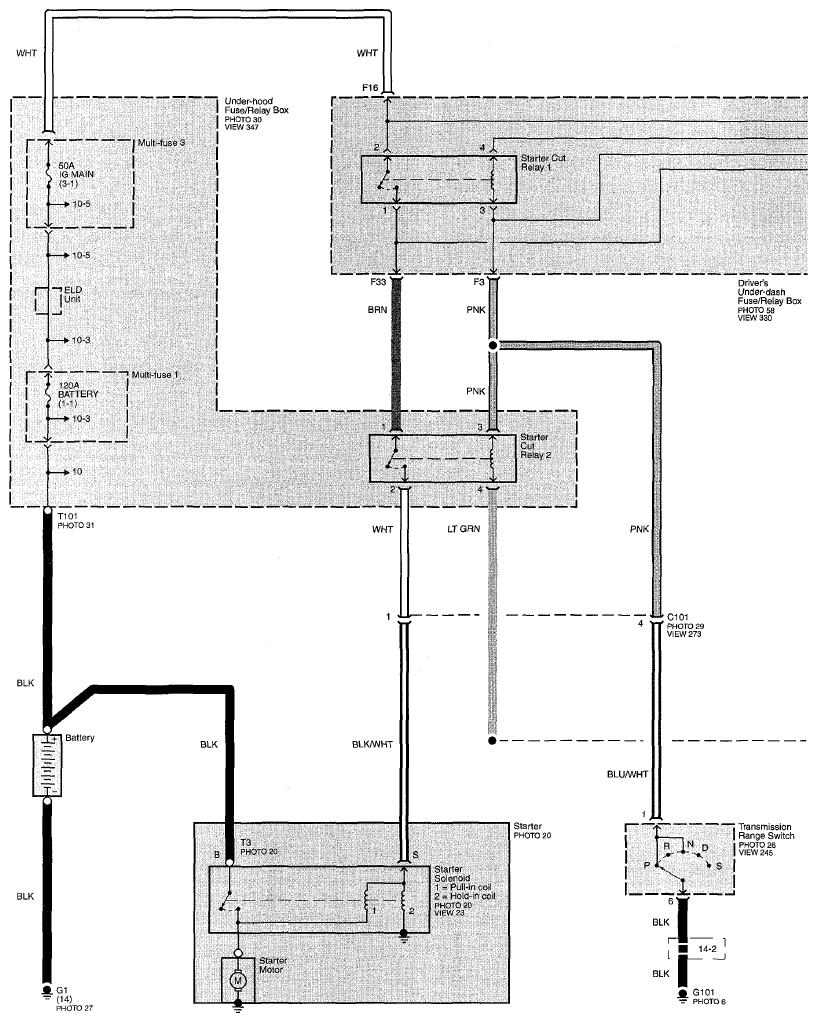

Fig 2: Starting System Circuit Diagram - Without Keyless Access (Page 21-1)
