OEM Circuit Diagrams: Wiper/Washer: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

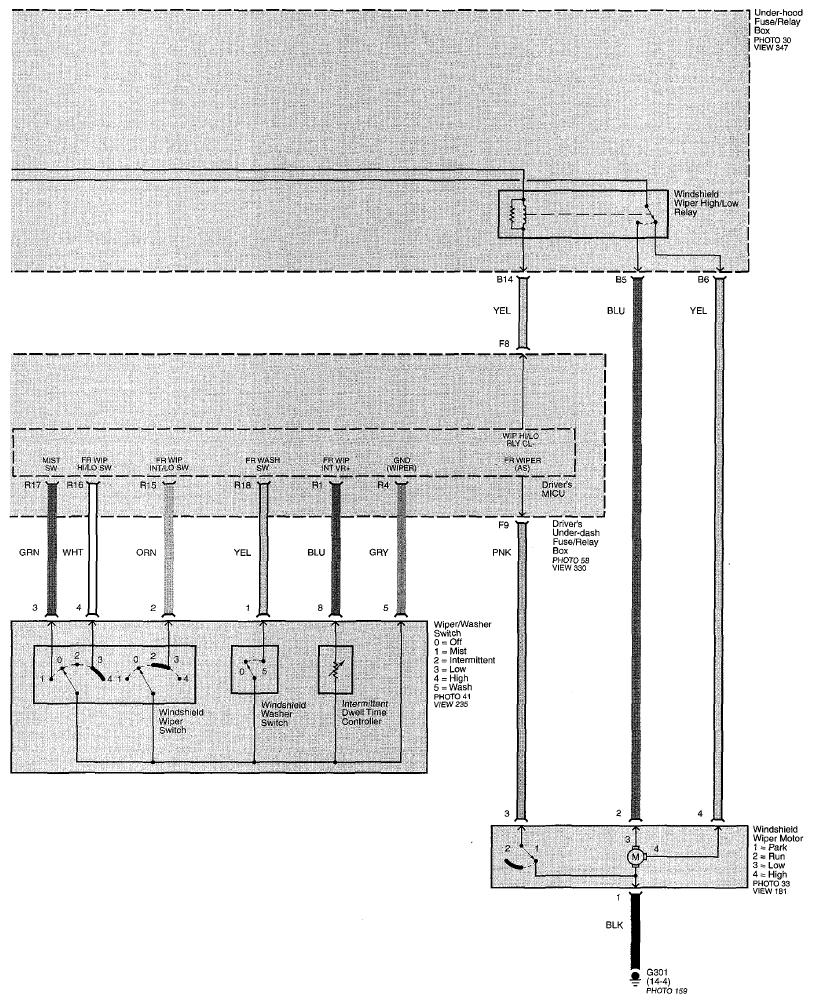

Fig 1: Wiper/Washer Circuit Diagram(Page 91)

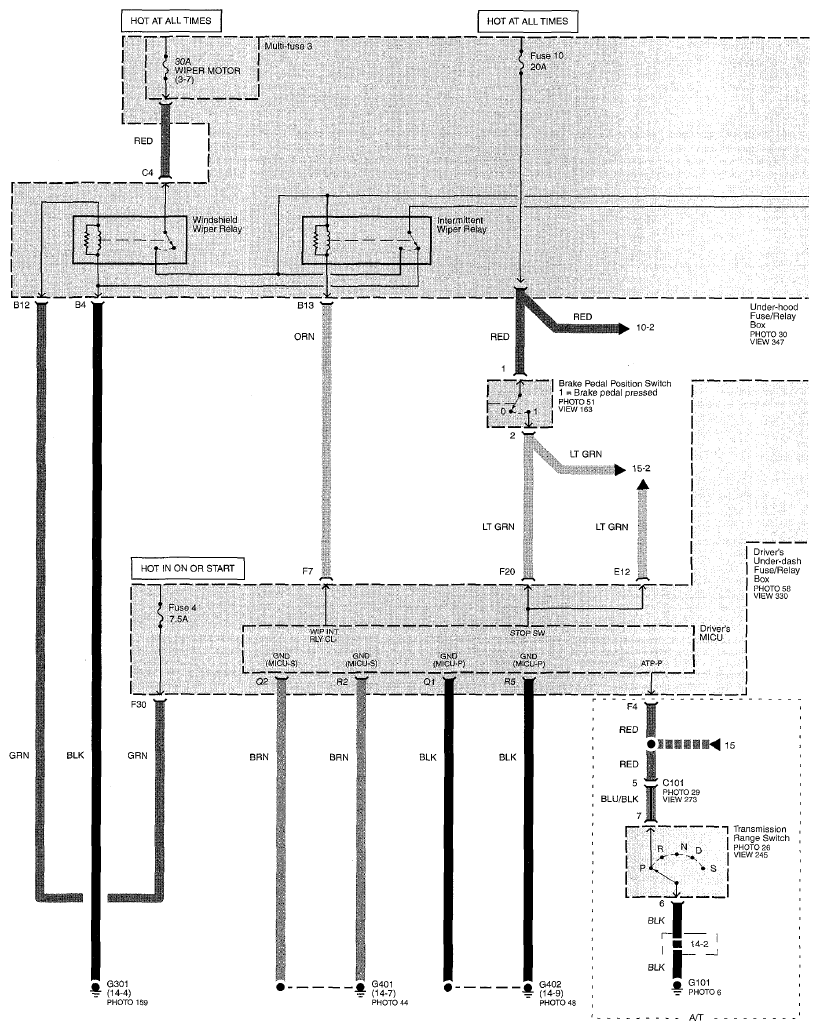

Fig 2: Wiper/Washer Circuit Diagram(Page 91-1)

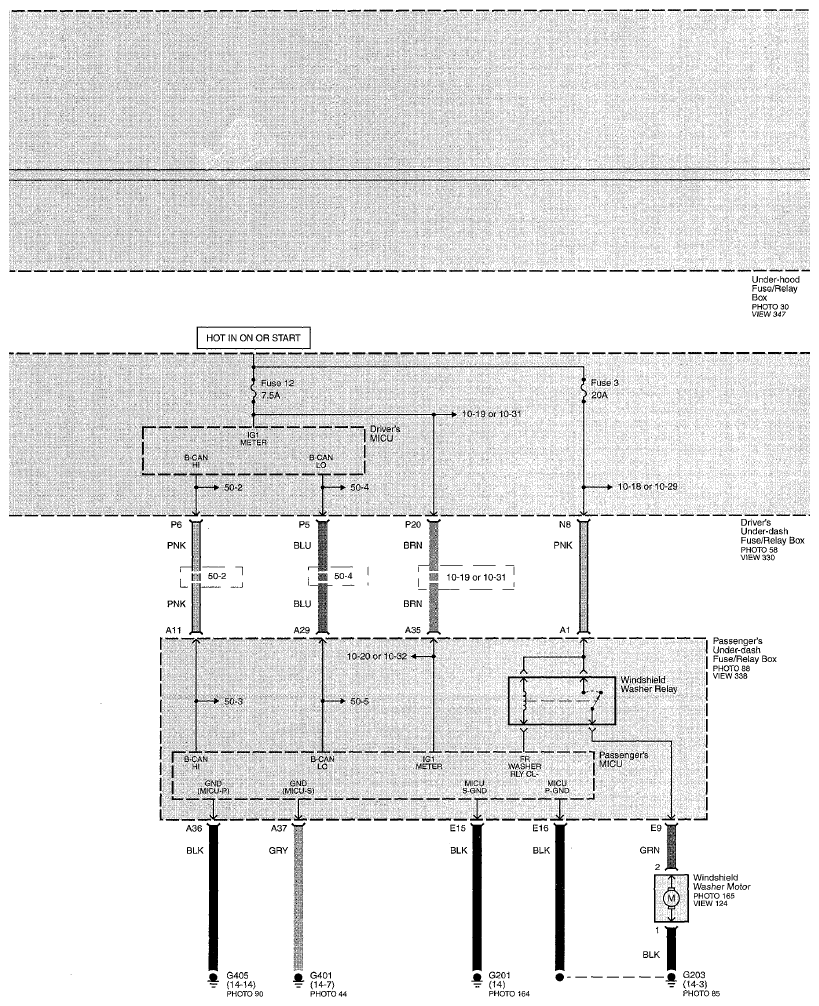

Fig 3: Wiper/Washer Circuit Diagram(Page 91-2)
