Component Locations
›
Relays And Control Unit Locations
›
Dashboard
›
With Keyless Access System
With Keyless Access System

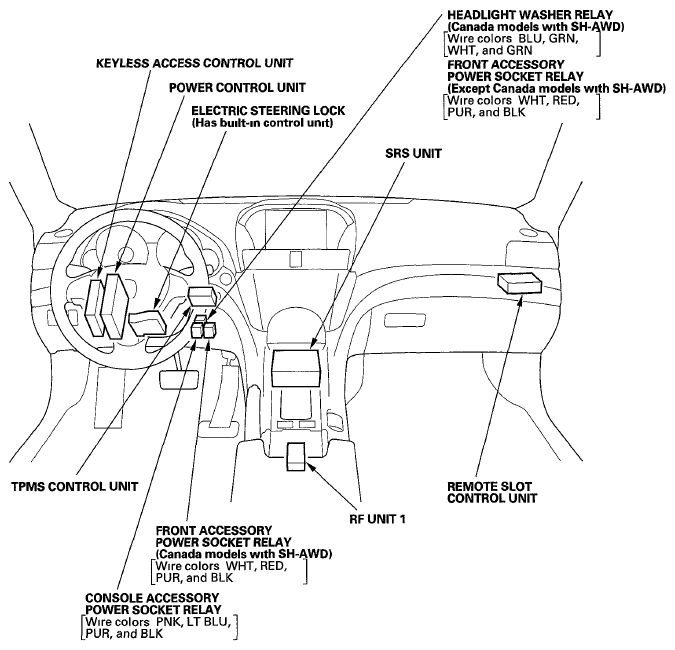

Fig 1: Identifying Relay And Control Unit Component Locations - Dashboard (With Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
