Relays And Control Unit Locations
›
Dashboard
›
Without Navigation System
Without Navigation System

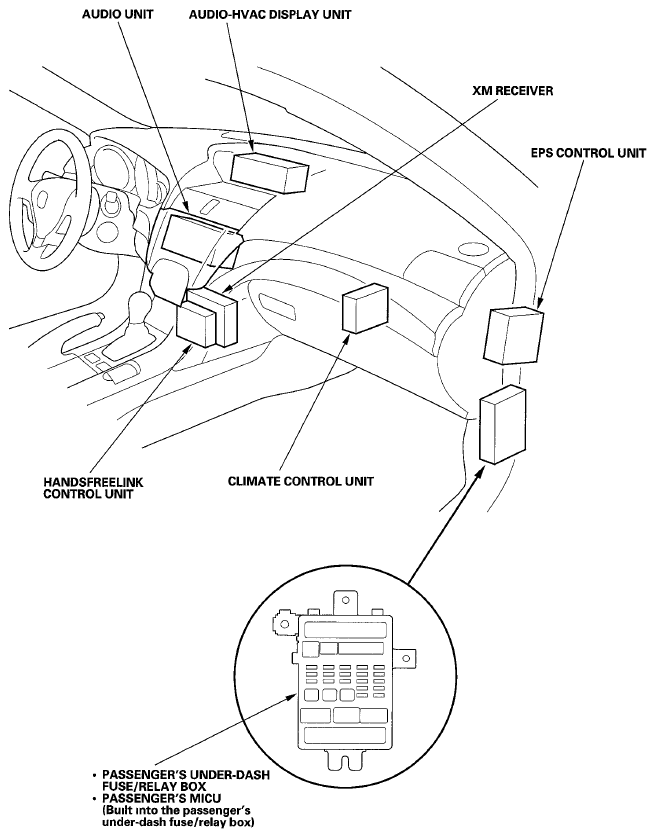

Fig 1: Identifying Relay And Control Unit Component Locations - Dashboard (Without Navigation System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
