Select/Reset/Information Switch Test/Replacement

  1. Remove the steering wheel (see STEERING WHEEL REMOVAL )
  2. Remove the paddle shifter (+) (upshift switch) (see PADDLE SHIFTER + (UPSHIFT SWITCH) OR PADDLE SHIFTER - (DOWNSHIFT SWITCH) REPLACEMENT )
  3. Disconnect the 12P connector (A) from the select/reset/information switch (B)

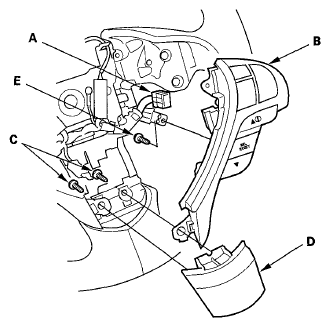

    Fig 1: Identifying 12P Connector, Select Switch, Reset Switch And Information Switch
    G05989087Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the screws (C), then pull out the center trim (D) from the steering wheel
  5. Remove the screw (E), then pull the select/reset/information switch from the steering wheel
  6. Measure the resistance between select/reset/information switch 12P connector terminals No 4 and No 11 in each switch position according to the table
    Fig 2: Identifying 12P Connector Terminals No 4 And No 11
    G05989088Courtesy of AMERICAN HONDA MOTOR CO., INC.
    RESISTANCE REFERENCE

    Position Resistance
    <!-- icon --> About 1,043 Ω
    SEL/RESET About 33 Ω
    <!-- icon --> About 363 Ω
  7. If the resistance is not as specified, replace the switch
  8. If the switch is OK, but there is a problem with the switch function, check the cable reel subharness and cable reel
