Acura
›
2011
›
TL Base
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Starting System
›
Circuit Diagram
›
With Keyless Access System
With Keyless Access System

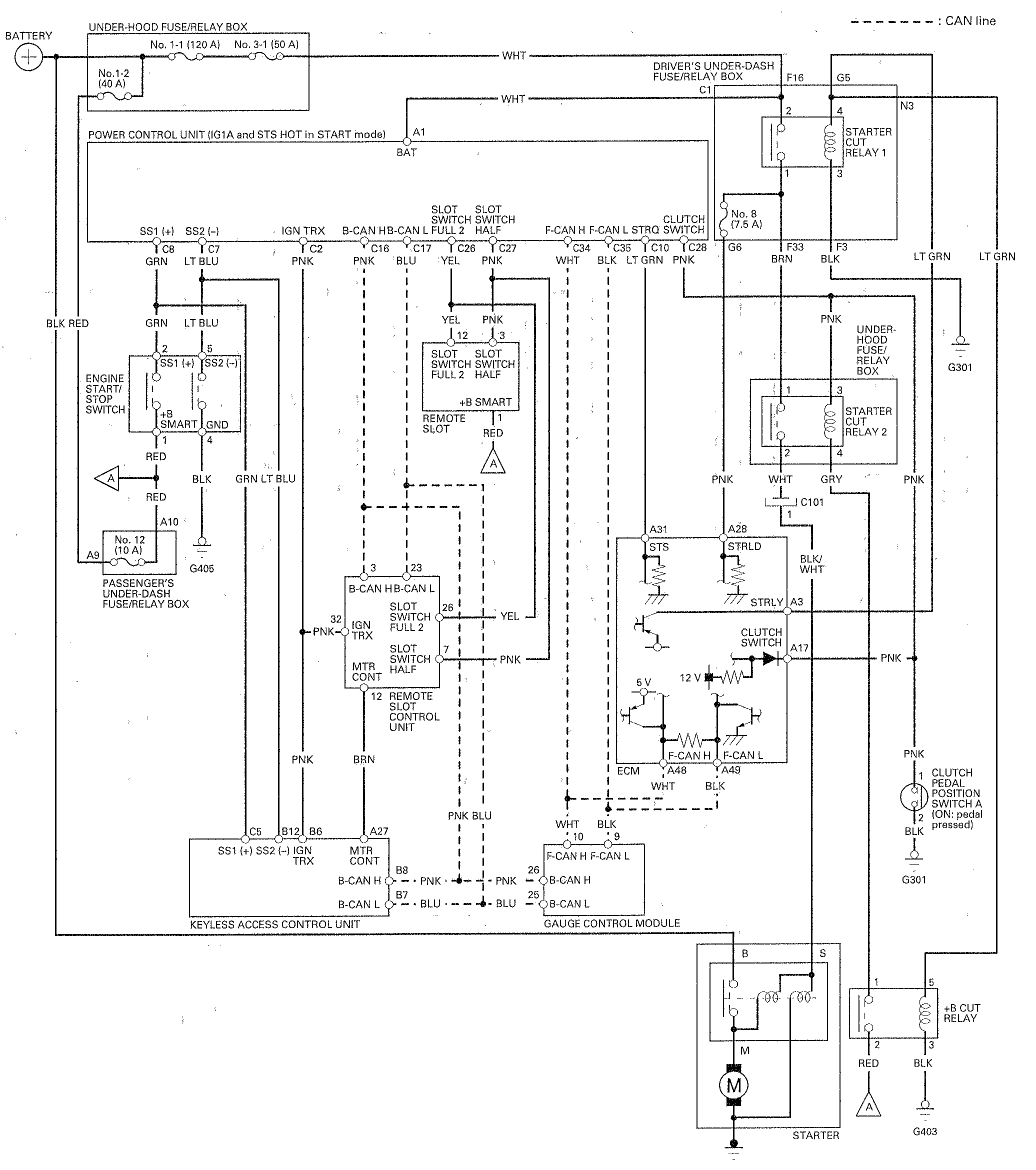

Fig 1: Starting System Circuit Diagram (With Keyless Access System) (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

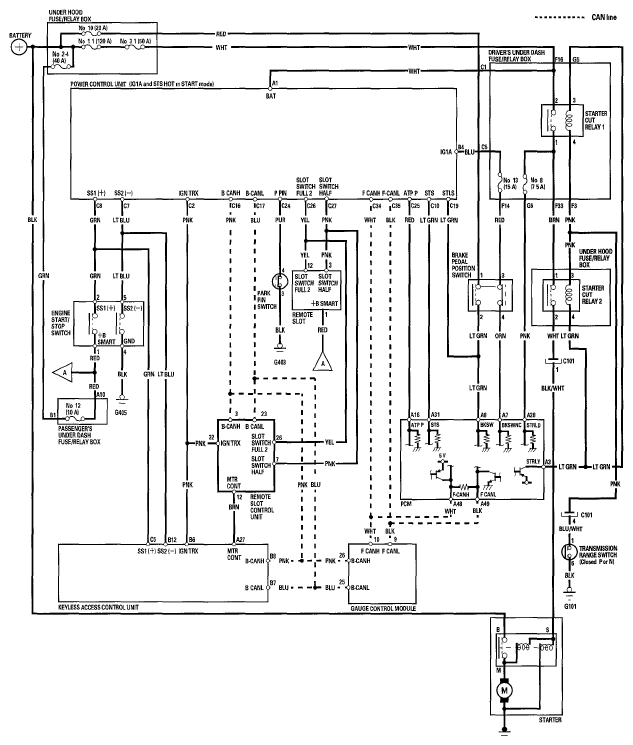

Fig 2: Starting System Circuit Diagram (With Keyless Access System) (A/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
