Low Oil Pressure Indicator Circuit Diagram
›
Without Keyless Access System
Without Keyless Access System

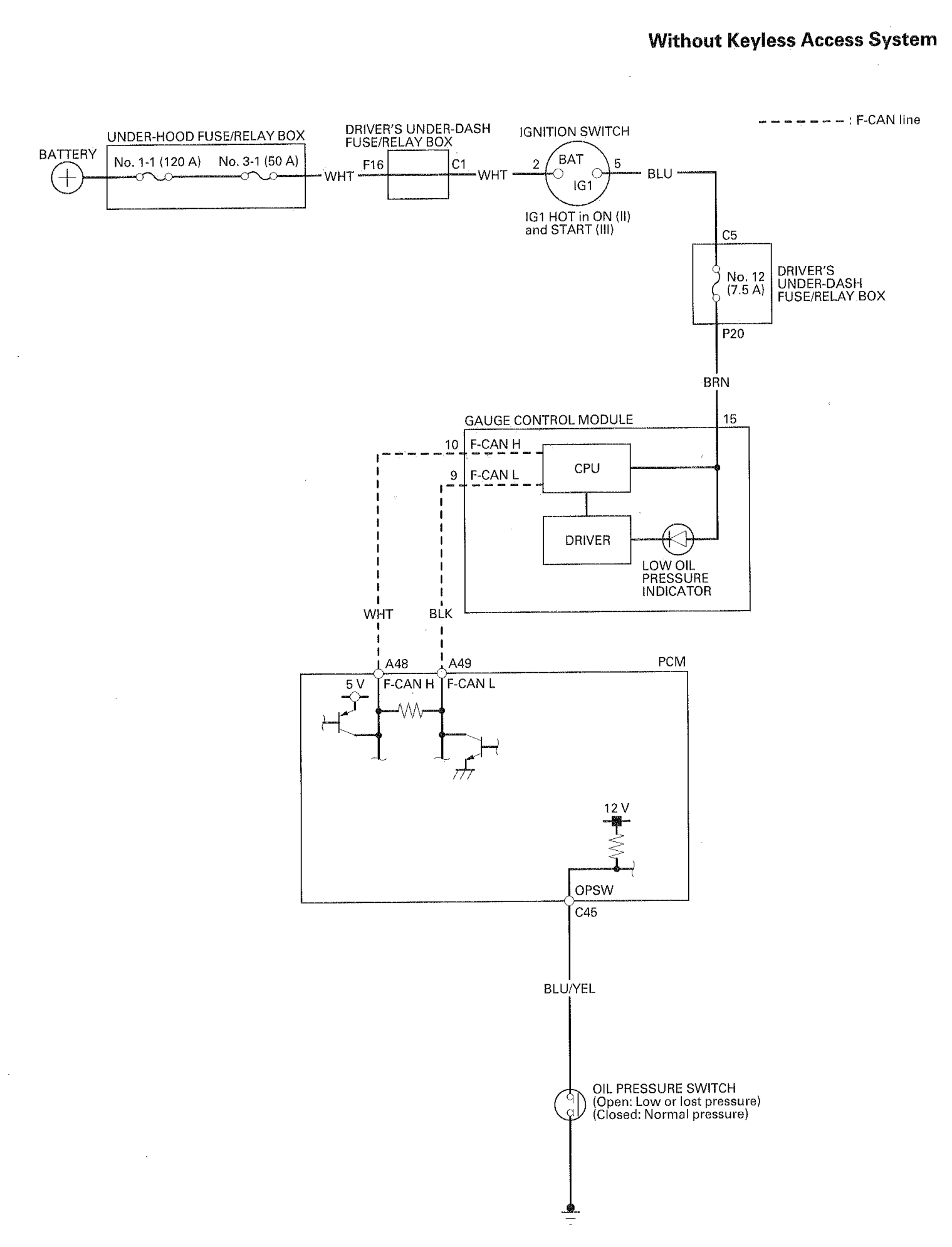

Fig 1: Low Oil Pressure Indicator Circuit Diagram (Without Keyless Access System)
Courtesy of AMERICAN HONDA MOTORS CO., INC.
Courtesy of AMERICAN HONDA MOTORS CO., INC.
