Sealing Bolt Installation

NOTE: When installing the sealing bolt (A), always use a new washer (B)

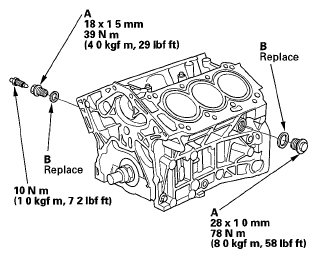

Fig 1: Sealing Bolt And Washer With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
