MAP Sensor Replacement

Disconnect the MAP sensor connector (A).

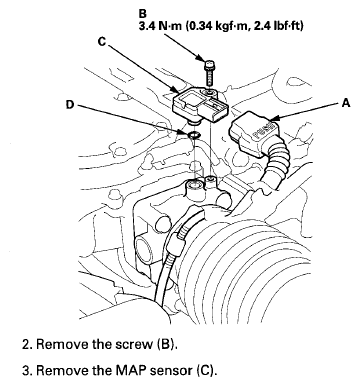

Fig 1: Identifying MAP Sensor With Screw And Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screw (B).
Remove the MAP sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D).
