Roof and Trunk
Roof and Trunk

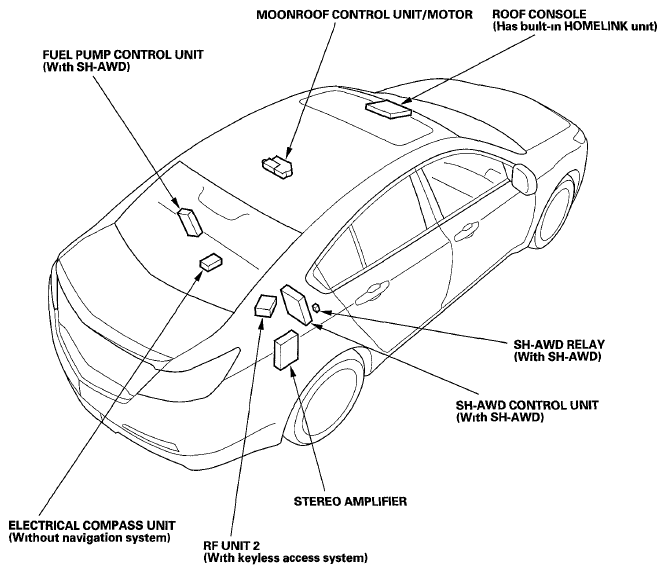

Fig 1: Identifying Relay And Control Unit Component Locations - Roof And Trunk
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
