Acura
›
2011
›
TL Base
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End Views
›
C501 Connector End View (View 295)
C501 Connector End View (View 295)
WHT
Under Middle of Dash
Connects A/C Wire Harness to Audio Wire Harness

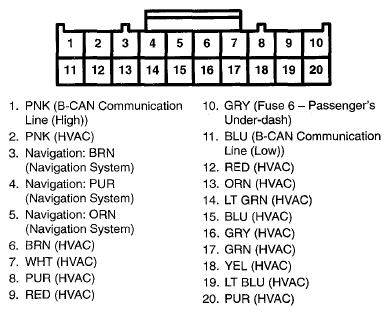

Fig 1: C501 Connector Terminal (View 295)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
