Cable Reel Connector End View (View 323)

Connector A

• YEL
• In Steering Column Cover
• On Dashboard Wire Harness

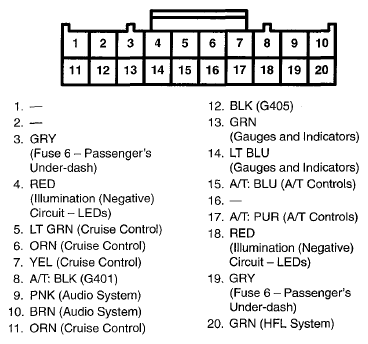

  Fig 1: Cable Reel Connector Terminal (Connector A) (View 323)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

• WHT
• In Steering Column Cover
• On Dashboard Wire Harness

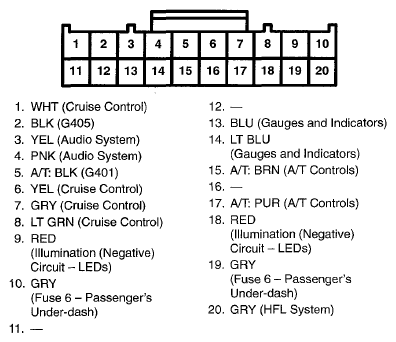

  Fig 2: Cable Reel Connector Terminal (Connector B) (View 323)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C

• WHT
• Steering Wheel
• On Cable Reel Sub-harness
  Fig 3: Cable Reel Connector Terminal (Connector C) (View 323)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
